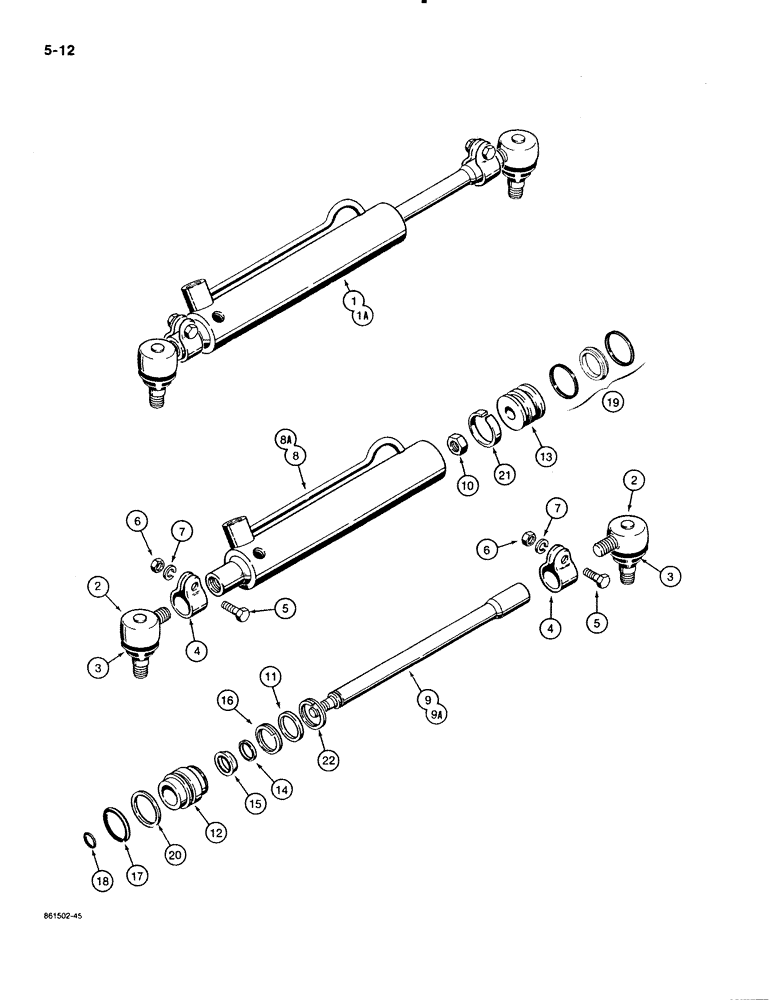

Запчасти Case 480E LL (5-12) - STEERING CYLINDERS (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
D128454
STEERING CYLINDER
CYLINDER ASSEMBLY - steering, used on two wheel drive models, Includes: Ref. 2 - 22
2шт.
1a
D92099
CYLINDER
CYLINDER ASSEMBLY - steering, used on four wheel drive models, with 710 Carraro front axle, Includes: Ref. 2 - 22
2шт.
234449A1R
REMAN-HYD CYLINDER
480E, 480E LL, Reman For New P/N D92099
2шт.
234449A1C
CORE-HYD CYLINDER
Return Number
1шт.
2
A40962
BALL JOINT
BALL JOINT - male thread, Includes: Ref. 3
2шт.
3
A41424
SEAL
BOOT - dust cover
1шт.
A27080
CLAMP
CLAMP ASSEMBLY - end, Includes: Ref. 4 - 7
2шт.
4
NSS
NOT SOLD SEPARAT
CLAMP - end
1шт.
5
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
6
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
7
492-11038
LOCK WASHER,3/8"
1шт.
8
D83188
CYLINDER
TUBE - D128454 cylinder
1шт.
8a
N7467
TUBE ASSY.,1.504" ID x 1.75" OD
TUBE - D92099 cylinder
1шт.
9
N8890
PISTON ROD
ROD - D128454 cylinder, hardened
1шт.
9a
N7466
ROD
ROD - D92099 cylinder, hardened
1шт.
10
131-1145
JAM NUT,5/8" - 18
NUT - hex, self-locking, 9/16" - 18 NF, plated
1шт.
11
A44641
SPACER,31.62mm ID x 34.37mm OD x 7.7mm L
SPACER - head
1шт.
12
D83189
GLAND
GLAND ASSEMBLY - cylinder, includes bushing
1шт.
13
D83190
PISTON
PISTON - cylinder
1шт.
D83184
GASKET KIT
KIT - cylinder repair, Includes: Ref. 14 - 21
1шт.
14
A44651
WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk
WIPER - rod
1шт.
15
NSS
NOT SOLD SEPARAT
SEAL - rod
1шт.
16
A44652
SNAP RING,#150, 1.591", Int, Spiral
RING - lock, gland
1шт.
17
S6582
O-RING,1.234" ID x 1.512" OD x 0.139"
O-RING - gland
1шт.
18
A64436
O-RING,0.549" ID x 0.755" OD
O-RING - 9/16 x 3/4 x 3/32 inch
1шт.
19
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
20
A45035
SEALING RING,34.88mm ID x 38mm OD x 1.58mm W
SEALRING BACKUP RING - gland O-ring
1шт.
21
NSS
NOT SOLD SEPARAT
RING - wear, piston
1шт.
22
A44654
SNAP RING,#125, 1.188", Ext Spiral
RING - lock, outer
1шт.
Выбрано товаров: 29
