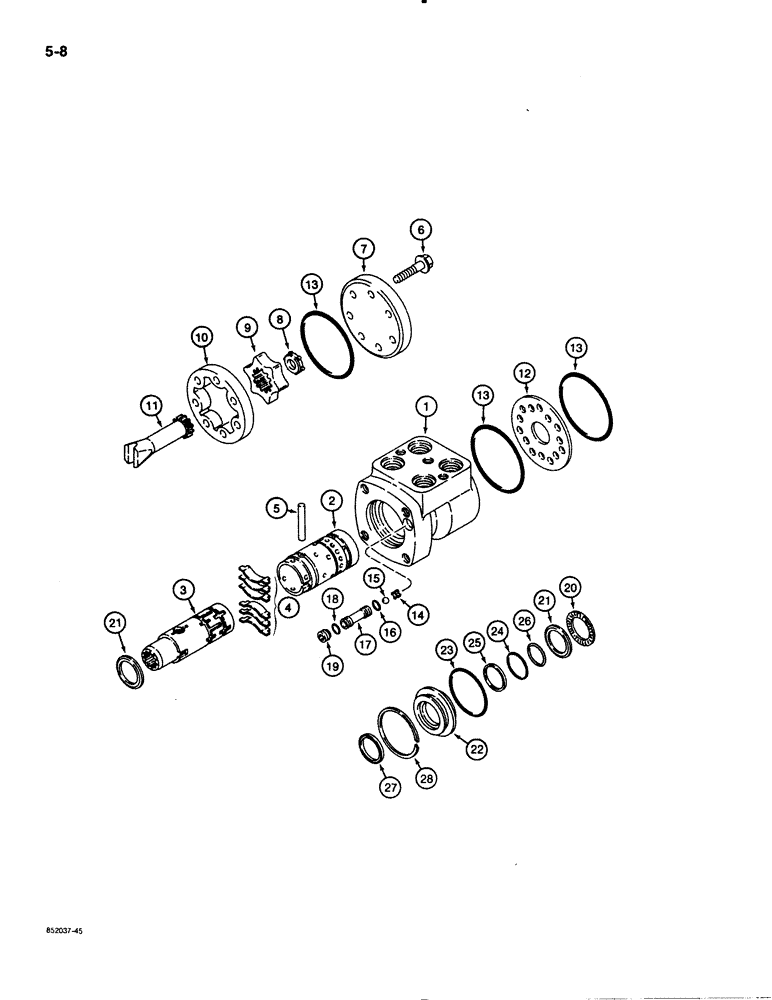

Запчасти Case 480E LL (5-08) - STEERING CONTROL VALVE (05) - STEERING

D124734

PUMP

CONTROL VALVE ASSEMBLY - steering, no longer used, order D140225 valve on Figure 5-10, Includes: Ref. 1 - 28

1шт.

N13311

CONTROL

HOUSING ASSEMBLY - control valve, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

4

L30889

SPRING

SPRING - centering

6шт.

5

L30888

PIN

PIN - centering

1шт.

6

H189555

BOLT,M6 x 20mm, Cl 8.8

BOLT - Ferry head, 5/16" - 24 NF x 1-5/8"

7шт.

7

D82809

COVER

CAP - end

1шт.

8

K964246

SPACER

SPACER - small

1шт.

N13342

GEAR-SET

GEROTOR SET - control valve, Includes: Ref. 9 - 10

1шт.

9

NSS

NOT SOLD SEPARAT

ROTOR - control valve

1шт.

10

NSS

NOT SOLD SEPARAT

STATOR - control valve

1шт.

11

L30878

DRIVE SHAFT

SHAFT - drive

1шт.

12

S113037

PLATE

PLATE - spacer

1шт.

13

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

O-RING - cover and housing

3шт.

14

L35368

RETAINER

RETAINER - check ball

1шт.

15

211-208

BALL,5/16" Dia

BALL - check

1шт.

16

L30893

O-RING,1/16" Thk x 5/16" ID

O-RING - seat, inner, 7/16 x 5/16 x 1/16 in

1шт.

17

D82806

VALVE SEAT

SEAT - check ball

1шт.

18

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

O-RING - seat, outer

1шт.

19

D82805

SET SCREW

PLUG - hex socket, special

1шт.

20

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Needle - Spool

1шт.

21

D82804

RACE

WASHER - thrust, bearing

2шт.

22

N13312

CYLINDER END CAP

RETAINER - spool seal

1шт.

23

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

O-RING - seal retainer

1шт.

24

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

SEAL - spool, inner

1шт.

25

N13314

RING

RING - backup

1шт.

26

L15402

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

O-RING - spool, inner

1шт.

27

A28211

OIL SEAL

SEAL - spool, outer

1шт.

28

S110169

WASHER

RING - retaining

1шт.
