Запчасти Case 480E LL (5-06) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

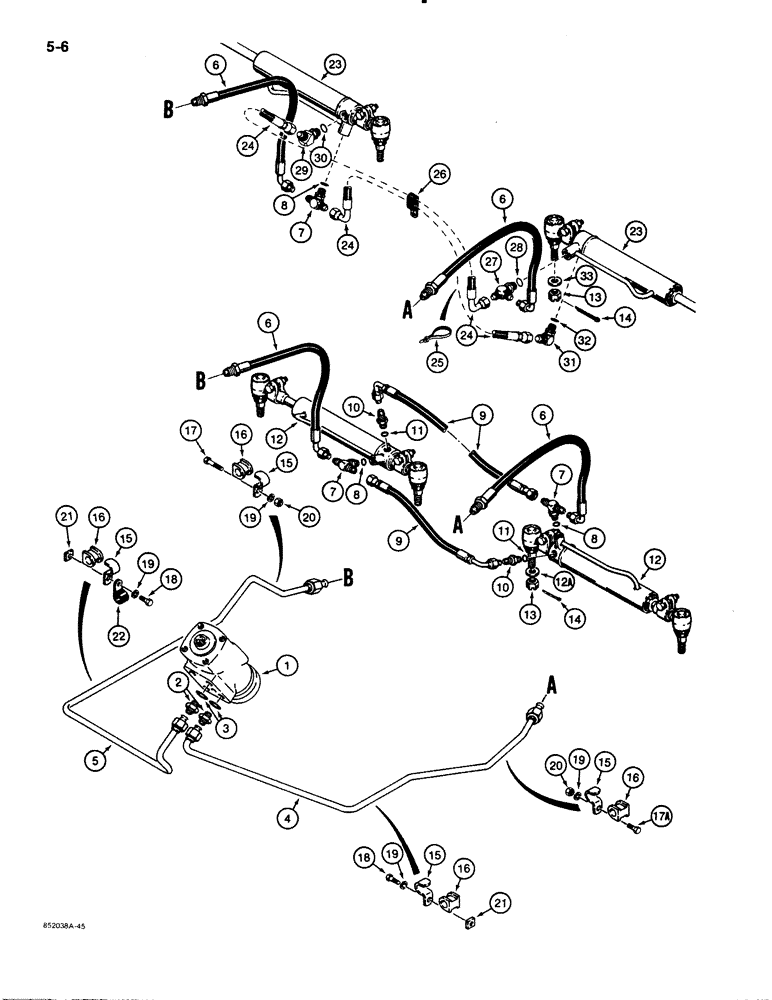

Схема запчастей Case 480E LL - (5-06) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - steering, for correct assembly and components, see Figures 5-8 and 5-10

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

D138103

TUBE

TUBE - to right-hand steering cylinder

1шт.

5

D138104

TUBE

TUBE - to left-hand steering cylinder

1шт.

6

D62390

HOSE,9.53mm ID x 508mm L, SAE 100R1

HOSE - 20" (508 mm) long, to steering cylinders

2шт.

7

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

TEE - adjustable, Includes: Ref. 8

2шт.

9

D126884

HOSE,9.53mm ID x 382mm L, SAE 100R1

HOSE - 15" (382 mm) long, between cylinders, two wheel drive models only

2шт.

10

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 11

2шт.

12

D128454

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, two wheel drive models only, parts list Figure 5-12

2шт.

12a

195-108

WASHER,5/8"

WASHER - flat, 11/16 x 1-3/4 x 5/32 inch

1шт.

13

129-610

SLOTTED NUT,5/8"-18, G5

SLOTTED NUT, 5/8"-18, G5

4шт.

14

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

4шт.

15

D68638

CLAMP

CLAMP - tube

4шт.

16

D67296

GROMMET

INSULATOR - tube clamp

4шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

17a

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

18

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

21

25-226

SQUARE NUT,Sq, 3/8"-16

NUT - square, 3/8 inch NC

2шт.

22

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- retaining

1шт.

234449A1R

REMAN-HYD CYLINDER

480E, 480E LL,

1шт.

234449A1C

CORE-HYD CYLINDER

Return Number

1шт.

23

D92099

CYLINDER

CYLINDER ASSEMBLY - steering, parts list Figure 5-12, special parts used on 4wd models

2шт.

234449A1R

REMAN-HYD CYLINDER

480E, 480E LL, Reman For New P/N D92099

2шт.

234449A1C

CORE-HYD CYLINDER

Return Number

1шт.

24

D123917

HOSE

HOSE - 25-5/8" (650 mm) long, cylinder to cylinder, special parts used on 4wd model

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon, special parts used on 4wd model

1шт.

26

L17508

CLAMP

CLAMP - hose, special parts used on 4wd model

1шт.

27

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adjustable, right-hand steering cylinder, special parts used on 4wd model, Includes: Ref. 28

1шт.

29

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adj., LH steering cylinder, special parts used on 4WD model, Incl. Ref. 30

1шт.

31

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ELBOW - 90 degree, adjustable, right-hand steering cylinder, special parts used on 4wd model, Includes: Ref. 32

1шт.

33

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

WASHER - flat, 3/4", hardened, at inner ball joints

2шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk, Special parts used on 4WD model

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk, Special parts used on 4WD model

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk, Special parts used on 4WD model

1шт.

Выбрано товаров: 39
