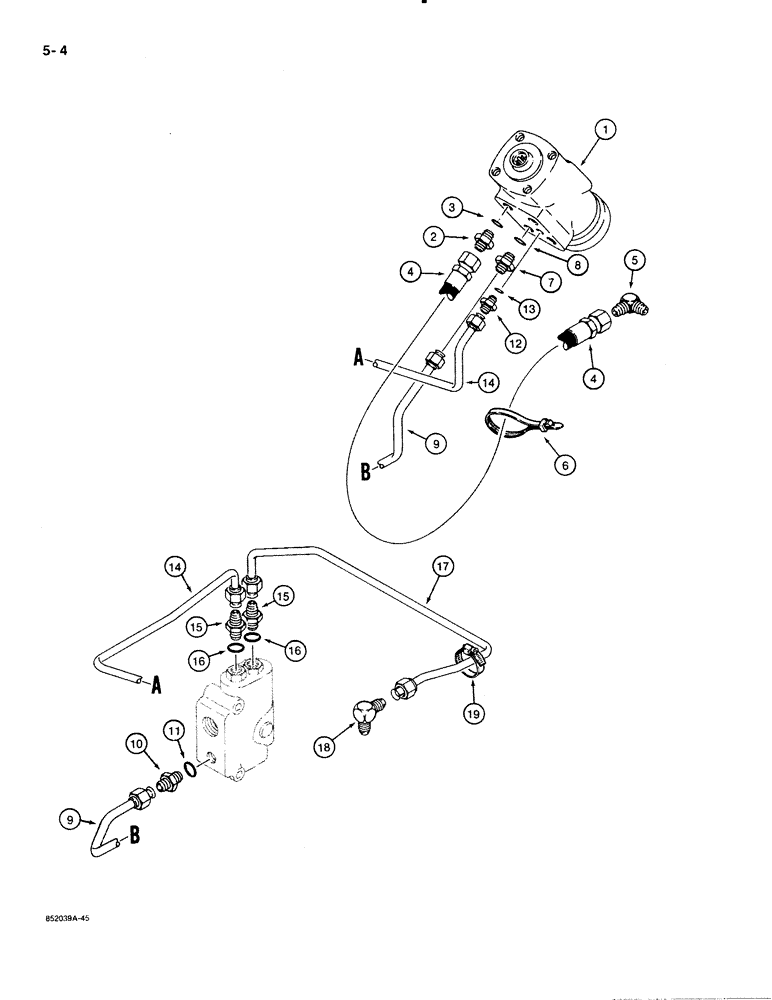

Запчасти Case 480E LL (5-04) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO TANK (05) - STEERING

1

REF

INSTRUCTION

CONTROL VALVE - steering, for correct assembly and components, see Figures 5-8 and 5-10

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

1-2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H205930

HYDRAULIC HOSE,838.80 mm, SAE 100R1A

Control Valve, Upper Left-Hand Port to Tank

1шт.

5

D135327

ELBOW

ELBOW - 90 degree, to tank, 217-292 elbow (item 10) on page 7-15 mounts in rear port of this elbow

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

7

D127926

ROD, CONNECTING

CHECK VALVE - inlet, no longer used, order 218-5059 adapter, Includes: Ref. 8

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

D132097

TUBE ASSY.

TUBE - flow control valve to control valve, lower left-hand port

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Swivel, Incl. Ref. 13

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

D132089

TUBE ASSY.

TUBE - load sensing, control valve center port to flow control valve

1шт.

15

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Swivel, Incl. Ref. 16

2шт.

16

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

17

D132087

TUBE ASSY.

TUBE - flow control valve to return tube

1шт.

18

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ELBOW - 90 degree, 1/8 PT x 7/16 inch thread, attaches to D129474 tee (item 12) on Figure 8-6

1шт.

19

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.
