Запчасти Case 480E LL (5-02) - STEERING WHEEL AND COLUMN (05) - STEERING

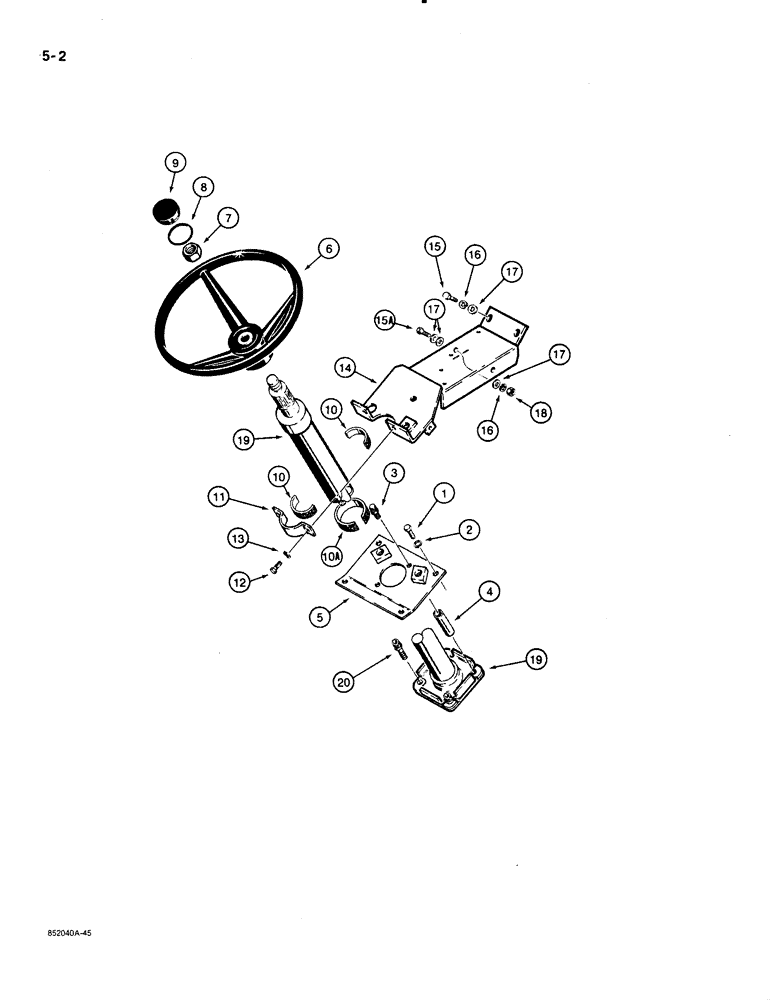

Схема запчастей Case 480E LL - (5-02) - STEERING WHEEL AND COLUMN (05) - STEERING

Артикул

Название

Примечание

Количество

1

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

2

492-11038

LOCK WASHER,3/8"

2шт.

3

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 1-1/4", grade 8

2шт.

4

D76211

SPACER

SPACER - plate

2шт.

5

D140360

PLATE

PLATE - control valve mounting

1шт.

6

A65544

STEERING WHEEL

1шт.

7

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, wheel

1шт.

8

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

O-RING - cap

1шт.

9

A62210

PLUG

CAP - steering wheel nut cover

1шт.

10

D66844

PADDING

COLLAR - steering column, two piece, if used

2шт.

10a

D136818

SUPPORT

COLLAR - steering column, one piece, if used

1шт.

11

D66049

CLAMP

CLAMP - steering column

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

D99515

BRACKET

SPARE PART BRACKET - steering column support

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

15a

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

16

492-11038

LOCK WASHER,3/8"

3шт.

17

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

5шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

19

D80621

POST

STEERING COLUMN - component parts not serviced separately

1шт.

20

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 3/4", grade 8

2шт.

Выбрано товаров: 22
