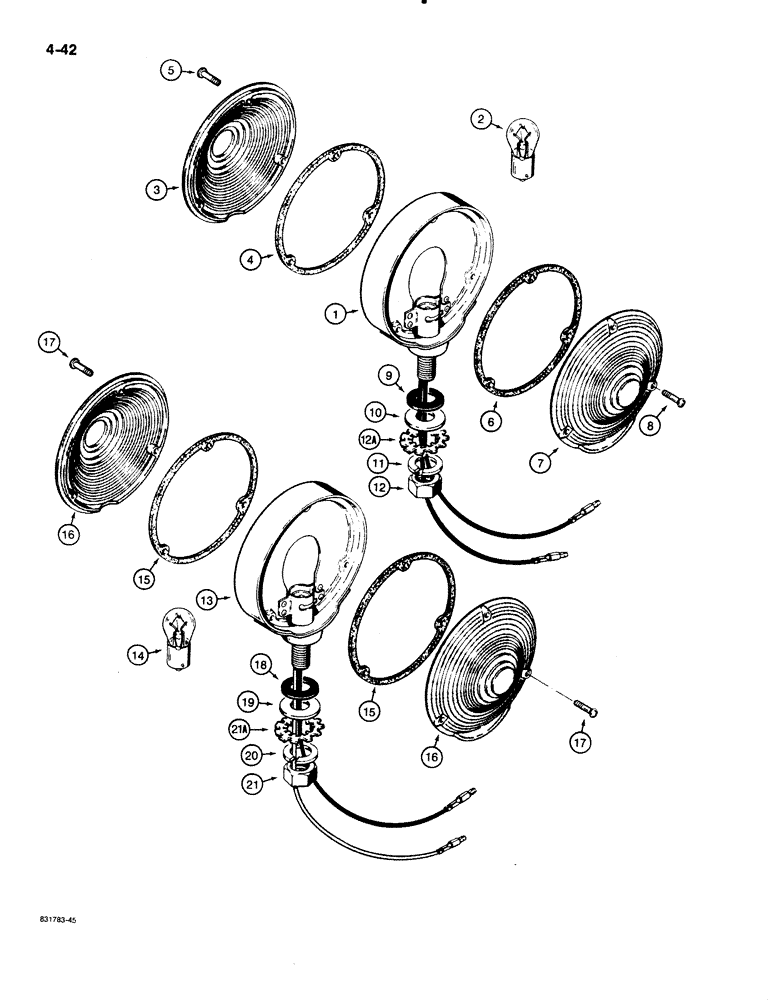

Запчасти Case 480E LL (4-42) - TRACTOR LAMPS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
D49733
LAMP
LAMP ASSEMBLY - stop and tail, models without cab or canopy, Includes: Ref. 1 - 12
2шт.
1
NSS
NOT SOLD SEPARAT
BODY - stop and tail lamp
1шт.
2
T34857
BULB,C6, #1157, 12.8V
Stop and tail
1шт.
L32213
LENS
KIT - lens replacement, red, stop and tail lamp, Includes: Ref. 3 - 5
1шт.
3
NSS
NOT SOLD SEPARAT
LENS - red, stop and tail lamp
1шт.
4
NSS
NOT SOLD SEPARAT
GASKET - lens, stop and tail lamp
1шт.
5
173-279
SCREW,Sl Rnd Hd, #6 - 32 x 5/8"
MACHINE SCREW - round head slotted, No. 6 - 32 NC x 5/8"
3шт.
L32214
LENS
KIT - lens replacement, amber, stop and tail lamp, Includes: Ref. 6 - 8
1шт.
6
NSS
NOT SOLD SEPARAT
GASKET - lens, stop and tail lamp
1шт.
7
NSS
NOT SOLD SEPARAT
LENS - amber, stop and tail lamp
1шт.
8
173-279
SCREW,Sl Rnd Hd, #6 - 32 x 5/8"
MACHINE SCREW - round head slotted, No. 6 - 32 NC x 5/8"
3шт.
9
L32256
WASHER
BUSHING - rubber, stop and tail lamp
1шт.
10
495-21056
WASHER,1/2"
WASHER - flat, 9/16 x 1-3/8 x 3/32 inch
1шт.
11
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
12
129-125
NUT,1/2"-20, G5
NUT, 1/2"-20, G5
1шт.
12a
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, Ext-Int Tooth, 1/2"
2шт.
D122121
LAMP,12V
LAMP ASSEMBLY - signal and flasher, Includes: Ref. 13 - 21
2шт.
13
NSS
NOT SOLD SEPARAT
BODY - signal and flasher lamp
1шт.
14
A41264
BULB,#1156, 12V
BULB, , Lamp, Signal and flasher #1156, 12V
1шт.
L32214
LENS
KIT - lens replacement, signal and flasher lamp, Includes: Ref. 15 - 17
2шт.
15
NSS
NOT SOLD SEPARAT
GASKET - lens, signal and flasher lamp
1шт.
16
NSS
NOT SOLD SEPARAT
LENS - amber, signal and flasher lamp
1шт.
17
173-279
SCREW,Sl Rnd Hd, #6 - 32 x 5/8"
MACHINE SCREW - round head slotted, No. 6 - 32 NC x 5/8"
3шт.
18
L32256
WASHER
BUSHING - rubber, signal and flasher lamp
1шт.
19
495-21056
WASHER,1/2"
WASHER - flat, 9/16 x 1-3/8 x 3/32 inch
1шт.
20
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
21
129-125
NUT,1/2"-20, G5
NUT, 1/2"-20, G5
1шт.
21a
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, Ext-Int Tooth, 1/2"
2шт.
Выбрано товаров: 28
