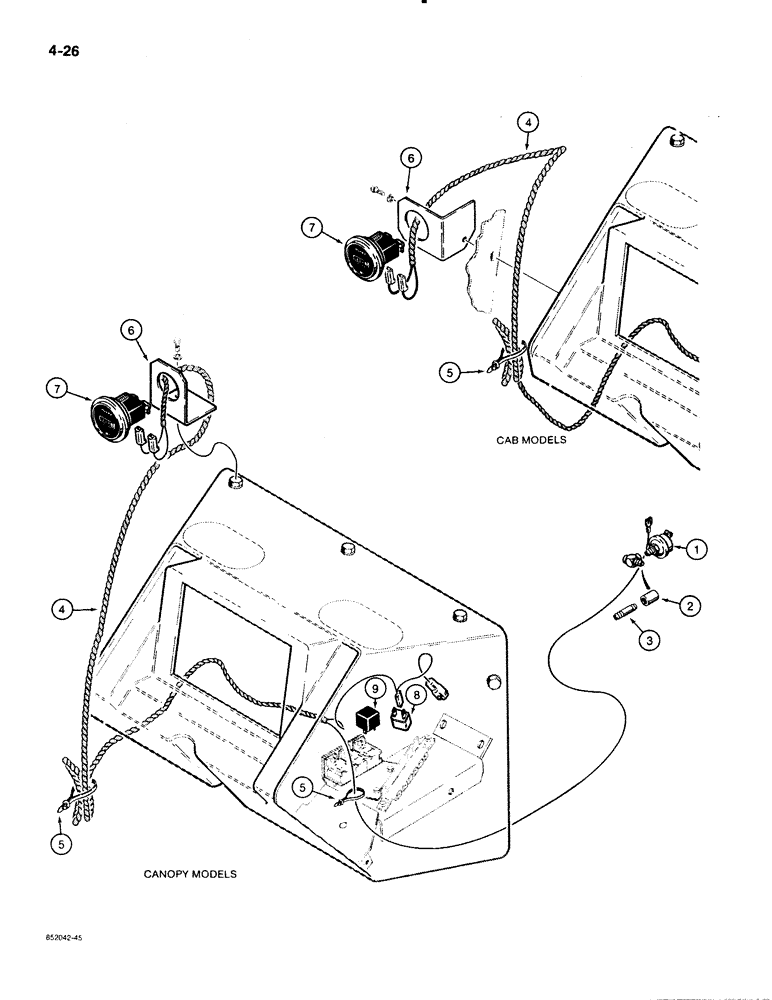

Запчасти Case 480E LL (4-26) - HOURMETER ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

H342774

SWITCH

SWITCH - pressure, at engine

1шт.

2

221-335

COUPLING,Pipe, 1/8" NPT

COUPLING - 1/8" NPT

1шт.

3

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - 1/8" NPT x 1-1/2"

1шт.

4

D126556

HARNESS

HARNESS - hourmeter

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

6

D75592

BRACKET

BRACKET - hourmeter, use instrument panel mounting hardware

1шт.

7

D53047

GAUGE

HOURMETER ASSEMBLY - complete

1шт.

8

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.

9

D128310

RELAY

RELAY - 30 amperes

1шт.
