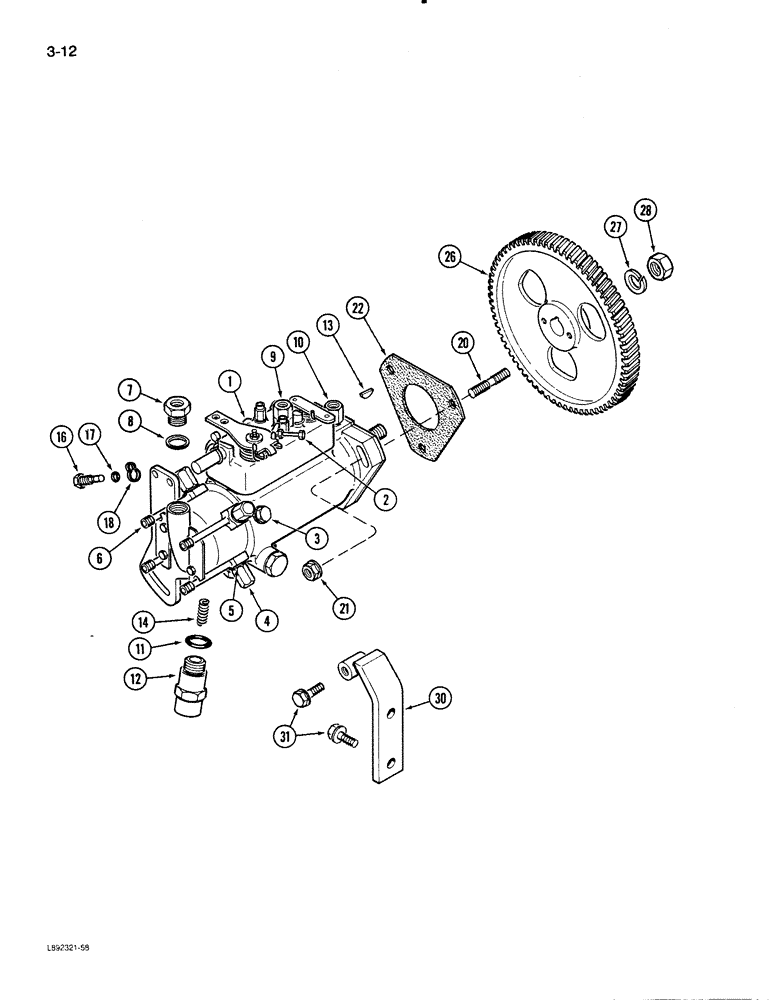

Запчасти Case 480E LL (3-12) - FUEL INJECTION PUMP AND DRIVE, 4-390 ENGINE (03) - FUEL SYSTEM

1

J910002

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, Type DPA3042 UL 0149E, new (Includes Ref. 2 through 18)

1шт.

1

JR910002

REMAN-INJECTION PUMP

Pump Assembly - fuel injectiion, Type DPA 3042 UL 149E, remanufactured (Includes Ref.2 through 18)

1шт.

1

JC910002

CORE-INJECTION PUMP

Return Part Number - pump assembly (Use this part number to return pump core for credit)

1шт.

1

J908645

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, Type DPAU 3042 F152, new, Includes: Ref. 2 - 18

1шт.

1

JR908645

PUMP

Pump Assembly - fuel injection, remanufactured, Includes: Ref. 2 - 18

1шт.

1

JC908645

CORE-HYDRAULIC PUMP

Return Part Number - use this part number to return pump core for credit

1шт.

1

JR915882

REMAN-INJECTION PUMP

Remanufactured Pump Assembly

1шт.

1

JC915882

CORE-INJECTION PUMP

Return Part Number

1шт.

2

J904637

SET SCREW

SCREW - adjusting, low idle

1шт.

3

K963867

SCREW

SCREW ASSEMBLY - bleed, pump head

1шт.

4

J904646

BANJO BOLT

BOLT - banjo

4шт.

5

J904644

WASHER

WASHER - sealing

9шт.

6

K962755

ADAPTER

FITTING - banjo

4шт.

7

J904641

FITTING

FITTING - inlet

1шт.

8

K962748

WASHER

WASHER - inlet fitting, copper

1шт.

9

J904640

VENT

ORIFICE - bleed

1шт.

10

J904643

FITTING

FITTING - return

1шт.

11

J904635

O-RING

O-RING - solenoid

1шт.

12

J904630

SOLENOID

SOLENOID ASSEMBLY - shut down, 12 volt

1шт.

13

J902332

KEY

KEY - retainer, pump gear

1шт.

14

J904777

SPRING

SPRING - plunger

1шт.

16

J904778

BOLT

BOLT - hex, locking device

1шт.

17

J904780

SEAL

SEAL - locking bolt

1шт.

18

J904779

WASHER

WASHER - locking

1шт.

20

J902501

STUD

STUD - pump mounting, 8 mm - 1.25 x 48 mm

3шт.

21

J900589

NUT

NUT - hex flange, 8 mm

3шт.

22

J914389

GASKET

GASKET - pump mounting (Replaces J905685)

1шт.

26

J914912

GEAR

GEAR - pump drive (Replaces J911331)

1шт.

27

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

28

J903738

NUT

NUT - hex, 14 mm

1шт.

30

J916024

BRACE

BRACE - fuel pump (Replaces J905387)

1шт.

31

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

BOLT - hex, 8 mm - 1.25 x 20 mm

3шт.
