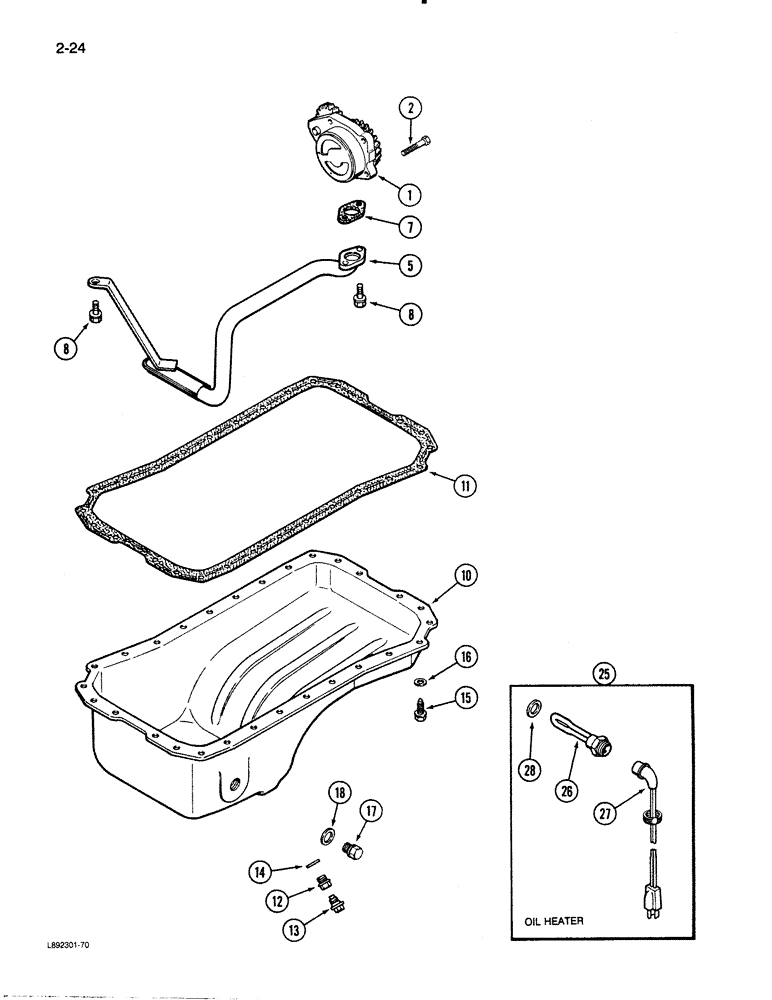

Запчасти Case 480E LL (2-24) - OIL PUMP AND OIL PAN, 4-390 ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
J914005
PUMP, ENGINE OIL
PUMP ASSEMBLY - oil, engine (Replaces J906413)
1шт.
JR914005
PUMP
PUMP - oil, remanufactured (North America only)
1шт.
JC914005
CORE-ENGINE OIL PUMP
CORE-ENGINE OIL PUMP RETURN NUMBER - use this part number to return pump core for credit
1шт.
JR930336
REMAN-ENG OIL PUMP
REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only
1шт.
JC926202
CORE-ENGINE OIL PUMP
CORE-ENGINE OIL PUMP Return number - For N.A. only
1шт.
2
814-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
BOLT - hex, 8 mm - 1.25 x 30 mm
4шт.
5
J905206
TUBE,1" OD
TUBE - suction, oil
1шт.
7
J914383
GASKET
GASKET - mounting, tube (Replaces J905468)
1шт.
Part of Oil Pan Gasket Kit, P/N A77673
1шт.
8
J900629
FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
3шт.
10
J901049
PAN, ENGINE OIL
PAN, OIL PAN - oil, engine
1шт.
11
NSS
NOT SOLD SEPARAT
GASKET - oil pan (Order A77482)
1шт.
Part of Oil Pan Gasket Kit, P/N A77673
1шт.
12
J900215
PLUG
PLUG - drain, oil (Alternate with J911638 plug)
1шт.
13
J911638
PLUG,M18 x 1.5
PLUG - drain, oil magnetic (Alternate with J900215 plug)
1шт.
14
J900216
PACKING RING
WASHER - seal, drain plug
1шт.
Part of Oil Pan Gasket Kit, P/N A77673
1шт.
16
J907537
SPRING WASHER
WASHER - spring, pan bolt
28шт.
17
J904386
PLUG
PLUG - pipe
1шт.
18
J902425
SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk
WASHER - seal, plug
1шт.
A77673
GASKET KIT
GASKET KIT - oil pan, Includes: Ref. 7, 11 and 14, Replaces A77482
1шт.
25
A77490
KIT
KIT - heater, engine oil, Includes: Ref. 26 - 27
1шт.
When kit is ordered, J902425 washer, Ref. 28, must also be ordered.
1шт.
26
NSS
NOT SOLD SEPARAT
ELEMENT - heater, 12 volt (Order A77490), eng oil
1шт.
27
J905113
CABLE
CABLE - heater electric, eng oil
1шт.
28
J902425
SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk
WASHER - seal, eng oil heater
1шт.
Выбрано товаров: 27
