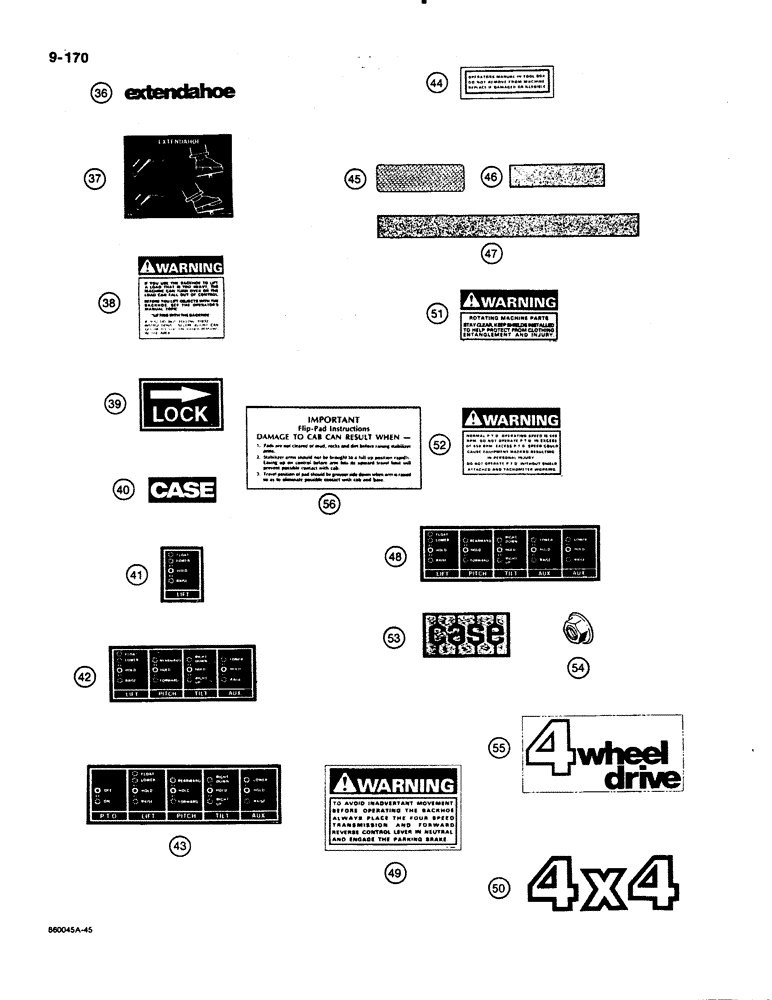

Запчасти Case 480E LL (9-170) - DECALS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

KIT - decal, continued from previous Figure, Includes: Ref. 36 - 50

1шт.

36

D123945

DECAL

DECAL - extendahoe, if used

2шт.

36a

D120625

DECAL

DECAL - extendahoe, white color for use on dark painted tractors, not included in kit, must be ordered separately, not shown

2шт.

37

D123948

DECAL

DECAL - Extendahoe, pedal control pattern, if used

1шт.

38

321-6046

WARNING DECAL

Lifting with the backhoe

1шт.

39

321-5922

DECAL

DECAL - Lock, boom

1шт.

40

D124115

DECAL

DECAL - CASE, three-point hitch frame, if used

1шт.

41

321-6058

DECAL

DECAL - three-point hitch control pattern, one spool valve models

1шт.

42

321-6059

DECAL

DECAL - three-point hitch control pattern, four spool valve models

1шт.

43

321-6461

DECAL

DECAL - three-point hitch control pattern, five spool valve models, see D122156 decal for models with PTO

1шт.

44

321-6452

DECAL

DECAL - operators manual in tool box

1шт.

45

D87870

DECAL

DECAL - reflector, red, rear

2шт.

46

D55216

PAD,2" x 9"

Steps, (4) used on 480E models and (1) used on 480E LL models

1-4шт.

47

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Operators compartment, long, 480E models only

1шт.

48

D122156

DECAL

DECAL - PTO and three-point hitch control pattern, five spool valve models

1шт.

49

321-6958

DECAL

DECAL - Warning, to avoid inadvertant movement before operating the backhoe

1шт.

50

D124183

DECAL

DECAL - 4 x 4, if used

2шт.

51

321-3710

DECAL

DECAL - Warning, Rotating Machine Parts, PTO shield, used on models with PTO

1шт.

52

321-3888

DECAL

DECAL - Warning, PTO speeds, used on models with PTO

1шт.

53

321-4739

EMBLEM

EMBLEM - case, on grille

1шт.

54

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Emblem retaining

2шт.

55

D123949

DECAL

DECAL - 4-Wheel Drive, if used

2шт.

56

D143476

DECAL

DECAL - flip-pad instruction, stabilizer foot, damage to cab can result

2шт.
