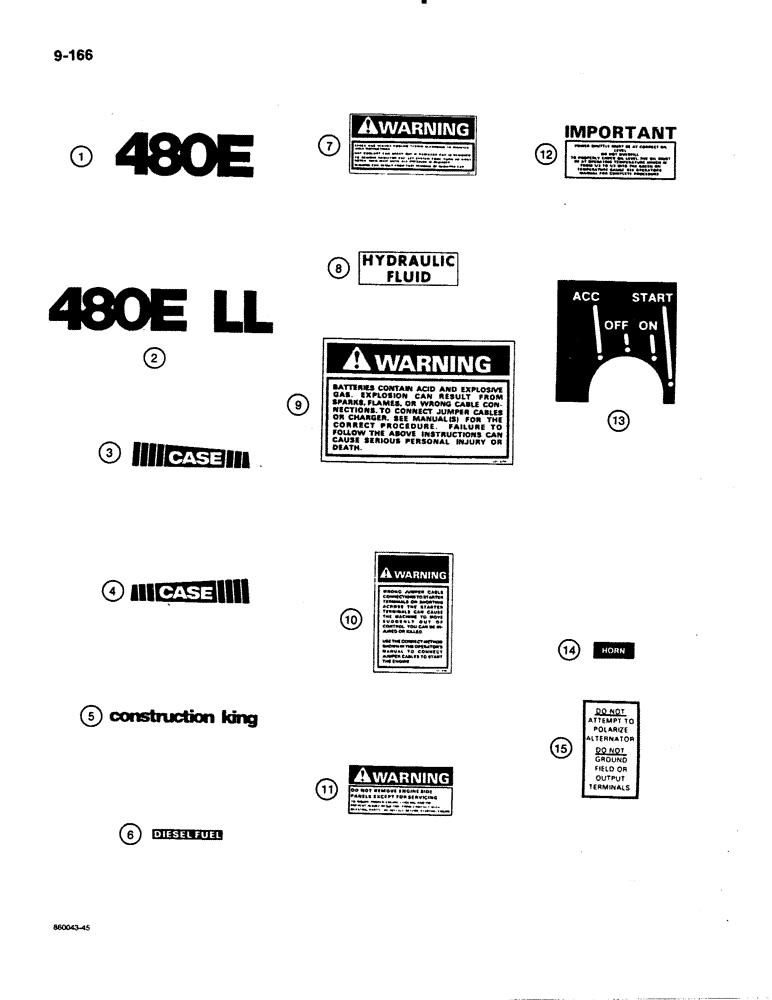

Запчасти Case 480E LL (9-166) - DECALS (09) - CHASSIS/ATTACHMENTS

D129743

DECAL

KIT - includes 480E decals, if used, Includes: Ref. 1 - 15

1шт.

D129744

KIT

KIT - includes 480E LL decals, if used, Includes: Ref. 1 - 15

1шт.

1

D129739

DECAL

DECAL - 480E, if used

2шт.

1a

D136324

DECAL

DECAL - 480E, white color for use on dark painted tractors, not included in kit, must be ordered separately, not shown

2шт.

2

D129740

DECAL

DECAL - 480E LL, if used

2шт.

2a

D136325

DECAL

SPARE PART DECAL - 480E LL, white color for use on dark painted tractors, not included in kit, must be ordered separately, not shown

2шт.

3

D123954

DECAL

DECAL - Case, with treads, right-hand, if used

1шт.

3a

D120622

DECAL

DECAL - Case, with treads, right-hand, white color for use on dark painted tractors, not included in kit, must be ordered separately, not shown

1шт.

4

D123952

DECAL

DECAL - Case, with treads, left-hand, if used

1шт.

4a

D120623

DECAL

DECAL - Case, with treads, left-hand, white color for use on dark painted tractors, not included in kit, must be ordered separately, not shown

1шт.

5

D123950

DECAL

DECAL - construction king, if used

2шт.

5a

321-5586

DECAL

DECAL - construction king, white color for use on dark painted tractors, not included in kit, must be ordered separately, not shown

2шт.

6

321-2601

DECAL

DECAL - Diesel Fuel

1шт.

7

321-6672

DECAL

DECAL - Warning, check and service cooling system

1шт.

8

321-229

DECAL

DECAL - Hydraulic Fluid

1шт.

9

321-6714

DECAL

DECAL - Warning, batteries contain acid and explosive gas

1шт.

10

321-6718

DECAL

DECAL - Warning, wrong jumper cable connections to starter terminals

1шт.

11

321-5701

DECAL

DECAL - Warning, do not remove engine side panels except for servicing

2шт.

12

321-3882

DECAL

DECAL - Important, power shuttle oil level

1шт.

13

D123946

DECAL

DECAL - ignition switch

1шт.

14

D123943

DECAL

DECAL - Horn

1шт.

15

321-1061

DECAL

DECAL - Do Not attempt to polarize alternator

1шт.
