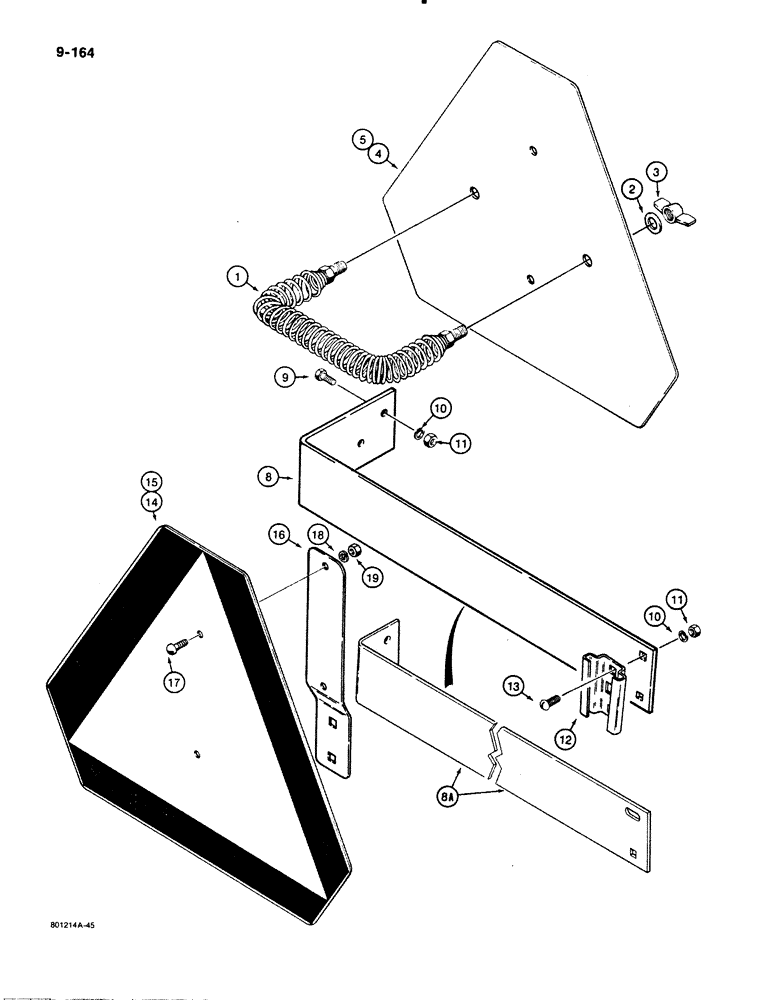

Запчасти Case 480E LL (9-164) - SLOW MOVING VEHICLE EMBLEM, USED ON MODELS WITH BACKHOE (09) - CHASSIS/ATTACHMENTS

1

D52564

SPRING

SPRING - emblem retaining

1шт.

2

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 3/64")

2шт.

3

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

4

D123347

WARNING SIGN

EMBLEM ASSEMBLY - plate and decal, Includes: Ref. 5

1шт.

5

321-4311

DECAL

DECAL - SMV emblem

1шт.

6

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, , Used when storing emblem only, not shown Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

7

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC, used when storing emblem only, not shown

2шт.

8

D69980

BRACKET

BRACKET - SMV emblem mounting, no longer used, replaced by D91465 bracket

1шт.

8a

D91465

BRACKET

BRACKET - SMV emblem mounting, if used

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

425-105

NUT,5/16"-18, G5

4шт.

12

A59457

BRACKET

BRACKET - emblem mounting, short

1шт.

13

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - round head, 5/16" - 18 NC x 3/4", plated

2шт.

14

D123347

WARNING SIGN

EMBLEM ASSEMBLY - plate and decal, Includes: Ref. 15

1шт.

15

321-4311

DECAL

DECAL - SMV emblem

1шт.

16

A59451

BRACKET

BRACKET - emblem mounting, vertical, long

1шт.

17

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

Machine

2шт.

18

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

19

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

2шт.
