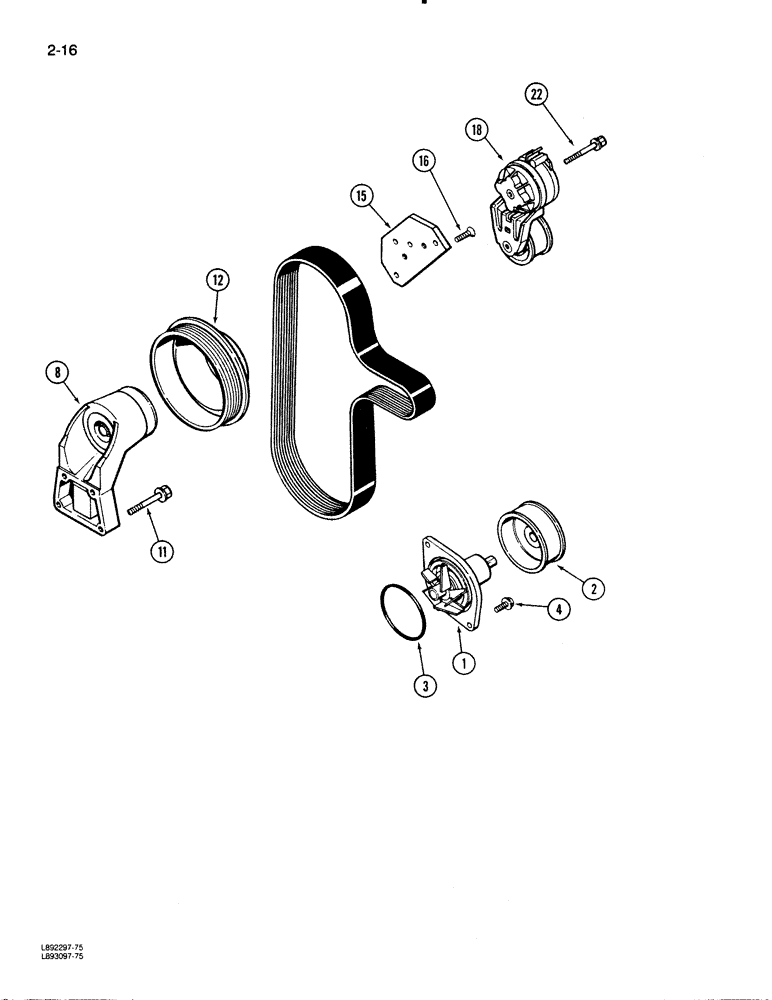

Запчасти Case 480E LL (2-16) - WATER PUMP SYSTEM, 4-390 ENGINE (02) - ENGINE

AR77471

REMAN-WATER PUMP

PUMP - water, remanufactured, Includes: Ref. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

480E LL

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77471

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

A77471

PUMP, WATER

PUMP KIT - water, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

480E, 480E LL, Replaces P/N's A77471 & AR77471

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water (Order A77471)

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump (Order A77471)

1шт.

3

22290R1

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

O-RING - sealing

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J909890

SUPPORT

BRACKET ASSEMBLY - fan pulley, 50 mm bolt circle (Prior to Engine Serial No. 44144174)

1шт.

8

J911922

SUPPORT ASSY.

BRACKET ASSEMBLY - fan pulley, 60 mm bolt circle (Engine Serial No. 44144174 and after) (Shown)

1шт.

11

J900678

BOLT,Hex Flg, M8 x 40mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 40 mm

4шт.

12

J902710

PULLEY

PULLEY - fan, 50 mm bolt circle (Prior to Engine Serial No. 44144174)

1шт.

12

J914462

PULLEY,163mm OD

PULLEY - fan, 60 mm bolt circle (Engine Serial No. 44144174 and after) (Shown)

1шт.

15

J904548

BRACKET

BRACKET - belt tension

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head hex socket

2шт.

18

J914086

BELT TENSIONER

TENSIONER ASSEMBLY - belt (Replaces J911315)

1шт.

22

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT - hex flange, 10 mm - 1.50 x 70 mm (Use with J914086)

1шт.

22

J905426

BOLT,Hex, M10 x 1.5 x 61.86mm

BOLT - hex flange, 10 mm - 1.50 x 62 mm (Use with J911315)

1шт.
