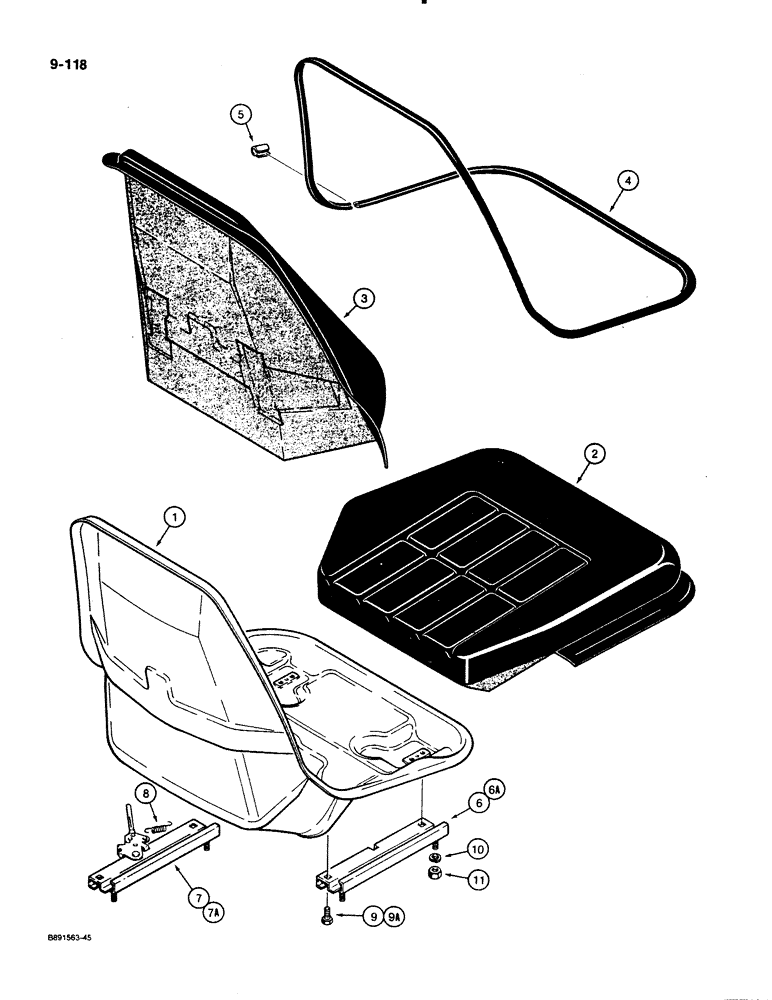

Запчасти Case 480E LL (9-118) - D124515 SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

D124515

SEAT ASSY.

SEAT ASSEMBLY - molded shell, brown, complete with seat adjusters, used on all models, Includes: Ref. 1 - 11

1шт.

D123196

SEAT ASSY.

SEAT ASSEMBLY - molded shell, brown, without seat adjusters, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N8462

CUSHION

CUSHION - seat, brown, includes N7802 clip kit, see below

1шт.

Part of Clip Kit, P/N N7802

1шт.

3

N8461

CUSHION

BACKREST - seat, brown, includes N7802 clip kit, see below

1шт.

Part of Clip Kit, P/N N7802

1шт.

4

N14614

GASKET

RETAINER - strip, cushion to shell (replaced NSS)

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

Part of Clip Kit, P/N N7802

1шт.

6

D56887

SEAT

SLIDE - seat, right-hand, uses 5/8 inch long bolt, no longer available, order N13606 and N13607 slides and (4) 113-101 bolts

1шт.

6a

N13607

ADJUSTER

SLIDE - seat, right-hand, uses 1/2 inch long bolt

1шт.

7

D56888

ADJUSTER

SLIDE - seat, left-hand, with adjuster, uses 5/8 inch long bolt, no longer available, order N13606 and N13607 slides and (4) 113-101 bolts

1шт.

7a

N13606

ADJUSTER

SLIDE - seat, left-hand, with adjuster, uses 1/2 inch long bolt, Includes: Ref. 8

1шт.

8

L35503

SPRING

SPRING - return, D56888 or N13606 left-hand slide

1шт.

9

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

BOLT, , If used Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

9a

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, , If used Hex, 5/16"-18 x 1/2", G5, Full Thd

4шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

425-105

NUT,5/16"-18, G5

4шт.

345-44

ADHESIVE

ADHESIVE - spray can, for attaching foam pads to metal surfaces, 19-1/2 fluid ounces

1шт.

N7802

CLIP

KIT - clip, includes Ref. 5 clip above plus 6 additional

1шт.
