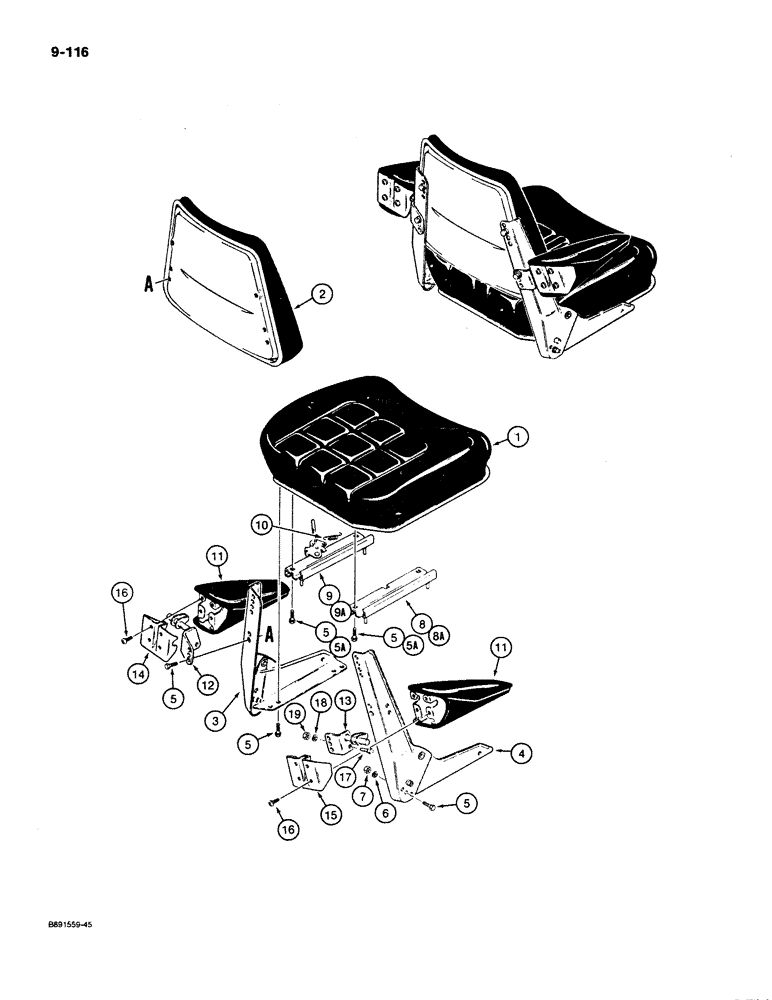

Запчасти Case 480E LL (9-116) - D76157 SEAT AND ARM RESTS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
D76157
SEAT
SEAT ASSEMBLY - operator, black, with optional armrest, Includes: Ref. 1 - 10
1шт.
5
113-118
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
BOLT, Hex, 5/16"-18 x 5/8", G5, Full Thd
10-14шт.
5a
113-101
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd
4шт.
8
D56887
SEAT
SLIDE - seat, right hand, uses 5/8 inch long bolt, no longer available, order N13606 and N13607 slides and (4) 113-101 bolts
1шт.
9
D56888
ADJUSTER
SLIDE - seat, left hand, with adjuster, used 5/8 inch long bolt, no longer available, order N13606 and N13607 slides and (4) 113-101 bolts
1шт.
9a
N13606
ADJUSTER
SLIDE - seat, left hand, with adjuster, uses 1/2 inch long bolt
1шт.
D56424
ARMREST
SPARE PART KIT - armrest, can be used with D76157 seat assembly on this figure only, Includes: Ref. 11 - 19
1шт.
16
187-1004
SELF-TAP SCREW,Cross Flat Hd, #8 x 3/8"
SCREW - flat Phillips, self tapping, No. 8 NC x 3/8 inch
8шт.
17
113-118
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
BOLT, Hex, 5/16"-18 x 5/8", G5, Full Thd
2шт.
18
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
