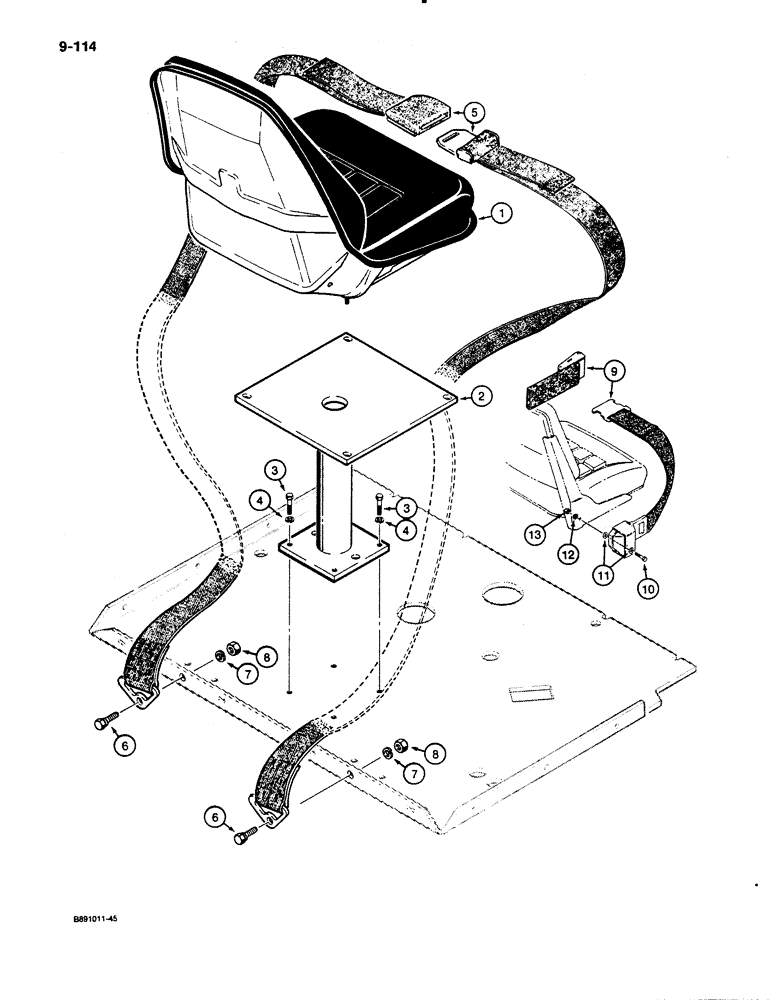

Запчасти Case 480E LL (9-114) - SEAT MOUNTING PARTS AND SEAT BELT, 480E LL MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operators, for correct assembly and components, see Figures 9-116 through 9-120

1шт.

2

D99301

POST

POST - seat mounting

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

D83760

SAFETY BELT

SEAT BELT- 3" (76 mm) wide, fastens to floor plate, if used

1шт.

6

F42236

STEP BOLT

BOLT - shoulder, 7/16" - 20 NF x 1-1/4", plated

2шт.

7

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

8

425-117

NUT,7/16"-20, G5

2шт.

9

D135623

SAFETY BELT

BELT - seat, 2 inch (51 mm) wide, with retractor, fastens to seat, if used

1шт.

10

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

11

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

4шт.

12

492-11044

LOCK WASHER,7/16"

2шт.

13

425-117

NUT,7/16"-20, G5

2шт.
