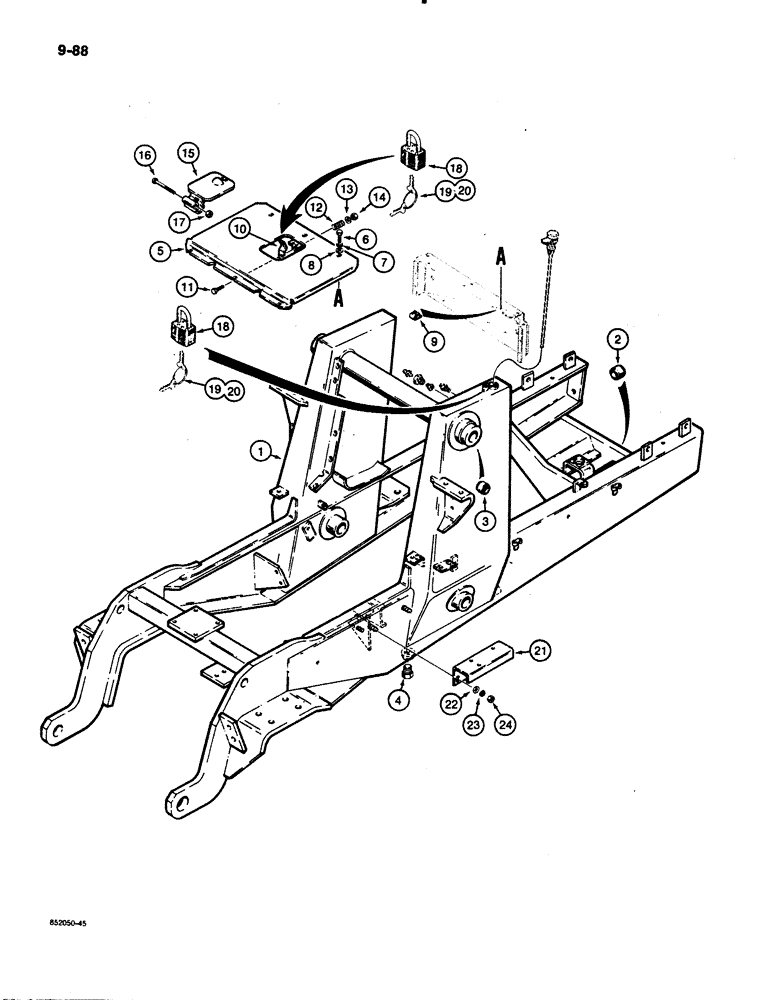

Запчасти Case 480E LL (9-088) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

D130066

FRAME ASSY

CHASSIS - tractor, two wheel drive models, includes 321-5701 and 321-6718 decals listed on Figure 9-166, Includes: Ref. 2 - 4

1шт.

1a

D139093

FRAME ASSY

CHASSIS - tractor, four wheel drive models, not shown, includes 321-5701 and 321-6718 decals listed on Figure 9-166 and front axle bearing cap and mounting hardware, items 8, 12, and 13 on Figure 6-30, Includes: Ref. 2 - 4

1шт.

2

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

BUSHING - front axle mounting, two wheel drive models only

2шт.

3

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

BUSHING - loader frame pivot, two or four wheel drive models

2шт.

4

D123893

PLUG

DRAIN PLUG - hydraulic reservoir, hex head, 3/4 NPT, special

1шт.

5

D130000

CAP

COVER - chassis

1шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

8

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

3шт.

9

131-97

SPRING NUT,Tinn, U, 5/16"-18

NUT - U-type, 5/16" - 18 NC

3шт.

10

D99215

LATCH

LATCH - cover, diesel fuel

1шт.

11

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/4", G5

1шт.

12

D128398

SPRING

SPRING - latch

1шт.

13

195-102

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

1шт.

14

131-2

NUT,1/4"-20, GB

1шт.

15

D92446

DOOR

COVER - diesel fuel access, (remove decal that applies to radiator access only)

1шт.

16

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

BOLT, Hex, 1/4"-20 x 3 1/4", G5

1шт.

17

131-2

NUT,1/4"-20, GB

1шт.

18

D93753

PADLOCK

PADLOCK - cover, includes keys, if used, Includes: Ref. 19 and 20

2шт.

19

R29555

KEY

KEY - for Master padlock only

2шт.

20

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

21

D68572

BRACKET

SUPPORT - hydraulic tubes

1шт.

22

195-103

WASHER,5/16"

WASHER - flat, 3/8 x 7/8 x 5/64 inch

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

24

425-105

NUT,5/16"-18, G5

2шт.
