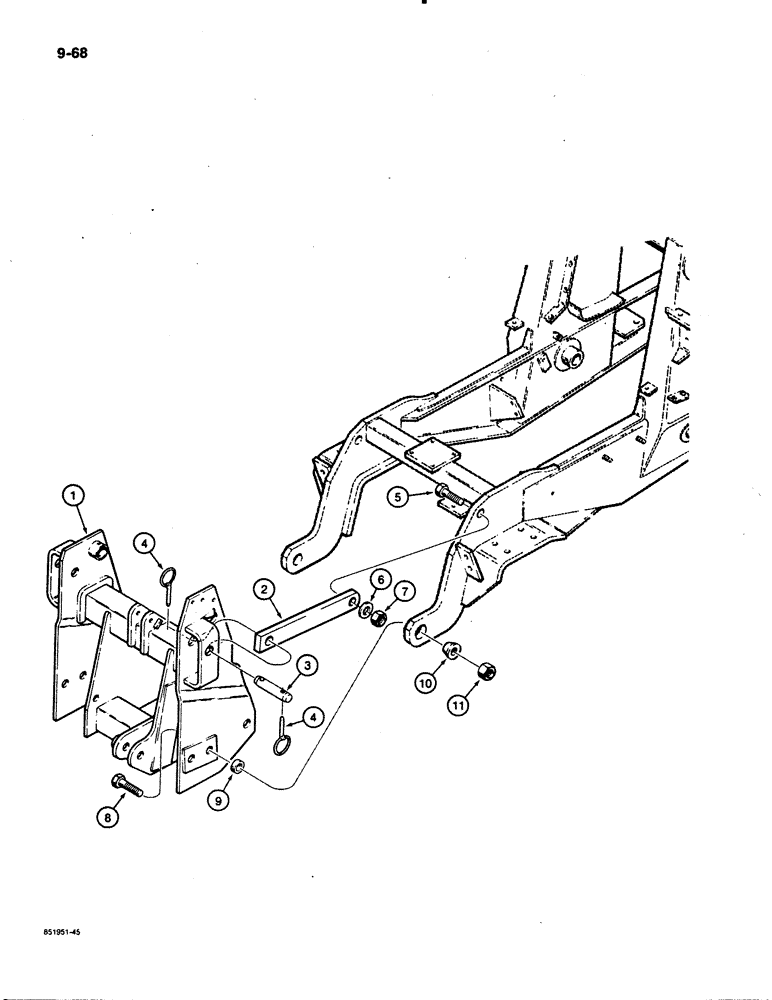

Запчасти Case 480E LL (9-068) - THREE-POINT HITCH FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D133255

FUNNEL

FRAME FRAME - mounting, Category I three-point hitch, for hydraulic hitch with 3/4 inch OD pin at closed end of pitch cylinder or for mechanical hitch, if used

1шт.

1

D141091

FRAME ASSY

SPARE PART FRAME - mounting, Category I-II three-point hitch, for hydraulic hitch with 1 inch OD pin at closed end of pitch cylinder, if used

1шт.

2

D133251

LINK

ARM - support, three-point hitch frame

2шт.

3

D133267

PIN

PIN - hitch mounting

2шт.

4

D33805

PIN

PIN - lock

4шт.

5

D69035

BOLT

BOLT - special, 1-1/4" - 7 NC x 3-1/2"

2шт.

6

D64968

WASHER

WASHER - special

2шт.

7

129-112

NUT,1 1/4"-7, G5

NUT - hex, 1-1/4 inch NC

2шт.

8

13-2072

BOLT,Hex, 1-1/4" - 7 x 4-1/2", Gr 5

BOLT - hex head, 1-1/4" - 7 NC x 4-1/2"

2шт.

9

L47693

SPACER

SPACER - mounting bolt, lower

2шт.

10

D30717

WASHER

WASHER - cone

2шт.

11

129-112

NUT,1 1/4"-7, G5

NUT - hex, 1-1/4 inch NC

2шт.
