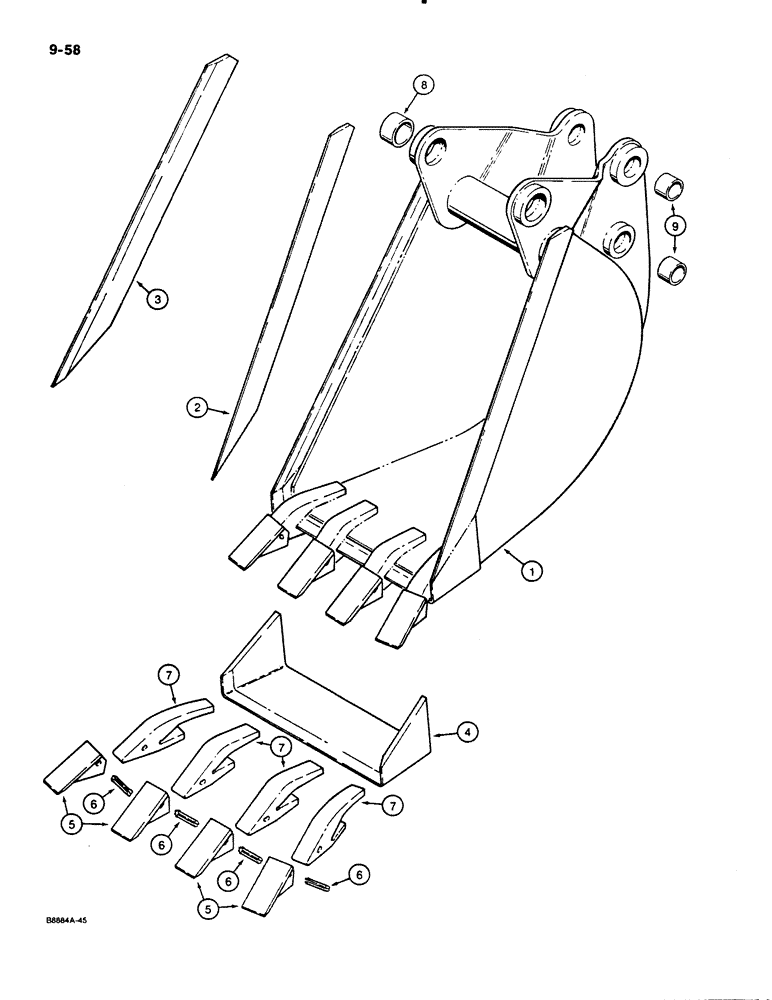

Запчасти Case 480E LL (9-058) - BACKHOE BUCKETS, INCLUDES BUCKET TEETH, TRENCHING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

D139795

BUCKET

BUCKET ASSEMBLY - 18 inch (457 mm), with 4 teeth, order from Machinery Price List, Includes: Ref. 2 - 9

1шт.

2

D21606

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

D21605

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D37642

EDGE, CUTTING

CUTTING EDGE - center, 18 inch (457 mm) bucket

1шт.

D41659

TOOTH

TOOTH ASSEMBLY - trenching bucket, Includes: Ref. 5 - 7

4шт.

5

D39093

TOOTH

POINT - tooth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN - flex, point

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUSHING - 1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUSHING - 1-1/2" ID x 1-7/8" OD x 1-1/4" long

4шт.

1

D139796

BUCKET

BUCKET ASSEMBLY - 24 inch (610 mm), with 5 teeth, not shown, order from Machinery Price List, Includes: Ref. 2 - 9

1шт.

2

D21606

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

D21605

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D37507

EDGE

CUTTING EDGE - center, 24 inch (610 mm) bucket

1шт.

D41659

TOOTH

TOOTH ASSEMBLY - trenching bucket, Includes: Ref. 5 - 7

4-5шт.

5

D39093

TOOTH

POINT - tooth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN - flex, point

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUSHING - 1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUSHING - 1-1/2" ID x 1-7/8" OD x 1-1/4" long

4шт.
