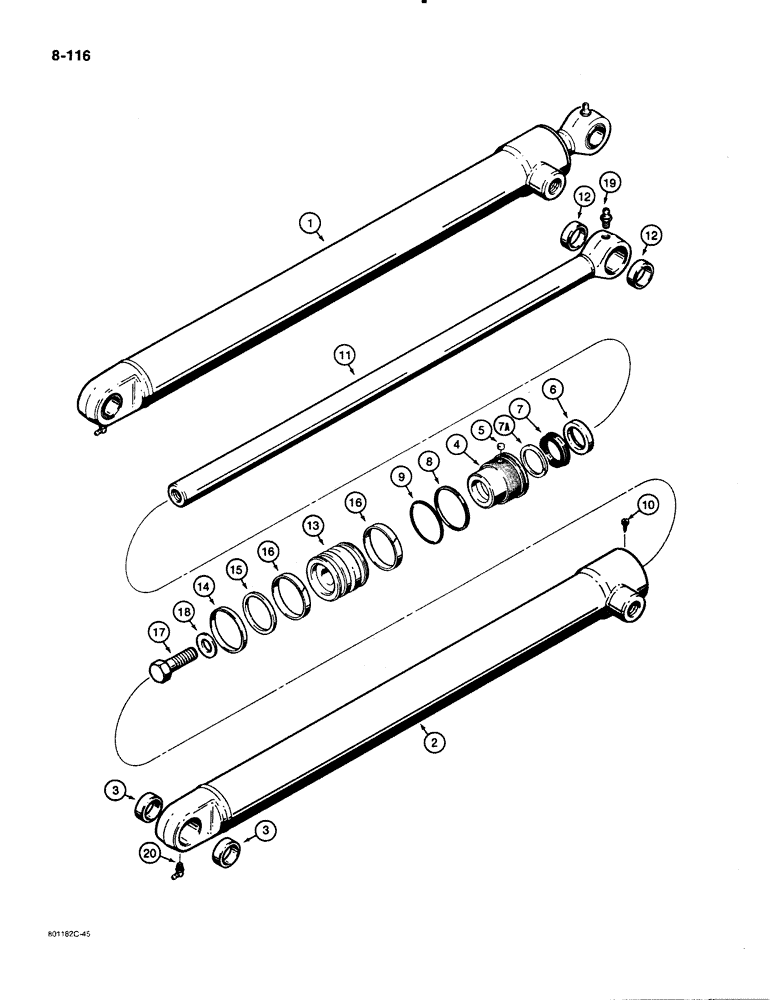

Запчасти Case 480E LL (8-116) - G101208 AND G101209 LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

G101208

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/2" (64 mm) ID x 29-1/2" (749 mm) stroke, left hand bucket, no longer used, order G101209 cylinder for both left or right-hand applications, Includes: Ref. 2 - 20

1шт.

1

G101209

CYLINDER

CYLINDER ASSEMBLY - 2-1/2" (64 mm) ID x 29-1/2" (749 mm) stroke, left or right hand bucket, Includes: Ref. 2 - 20

1-2шт.

2

G100854

TUBE,37.32" L

TUBE ASSEMBLY - left-hand cylinder, Includes: Ref. 3

1шт.

2

G100853

TUBE,37.32" L

TUBE ASSEMBLY - right-hand cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

BUSHING - tube

2шт.

G104008

GLAND

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

PLUG - nylon, thread locking, gland, if used

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G109456

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109456

1шт.

7

G100776

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

7a

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

SEAL - piston rod, narrow, with groove

1шт.

Part of Seal Kit, P/N G109456

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G109456

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

O-RING - gland

1шт.

Part of Seal Kit, P/N G109456

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

If used

1шт.

11

1978063C1

ROD

SPARE PART ROD ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

BUSHING - piston rod

2шт.

13

G100706

PISTON

PISTON - cylinder

1шт.

14

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

SEAL - piston

1шт.

Part of Seal Kit, P/N G109456

1шт.

15

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit, P/N G109456

1шт.

16

G100714

RING

RING - wear, piston

2шт.

Part of Seal Kit, P/N G109456

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

WASHER - hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

G109456

GASKET KIT

KIT - seal, includes Refs. 6, 7, 7A, 8, 9, 14, 15 and 16

1шт.
