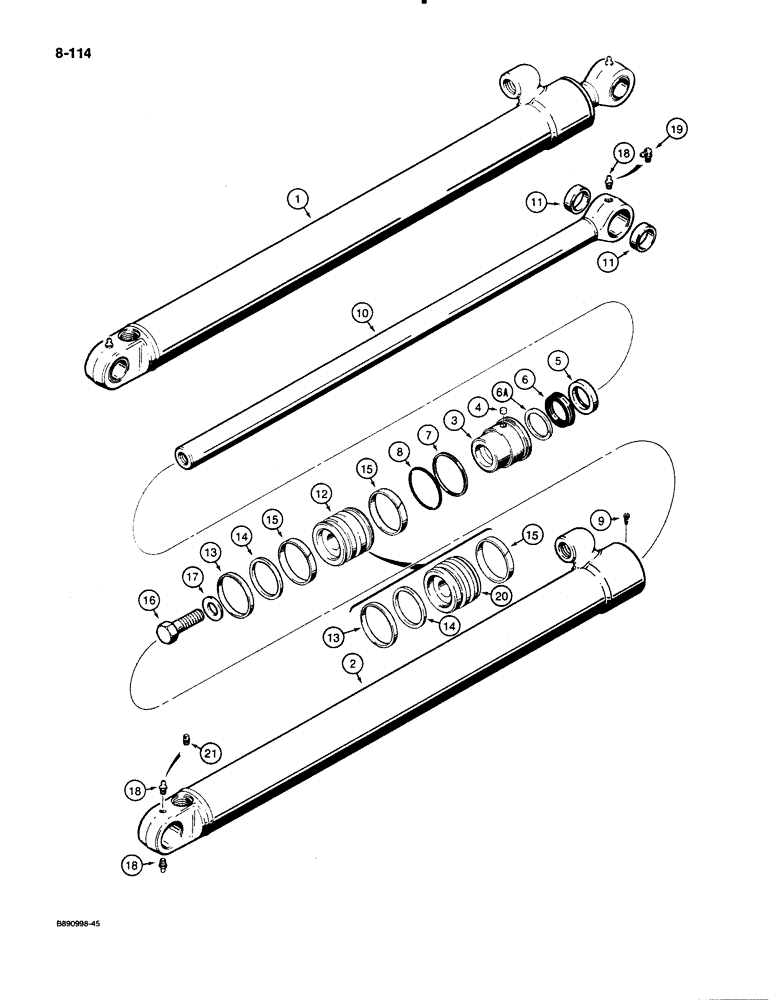

Запчасти Case 480E LL (8-114) - G101206, G101207 AND G110483 LOADER LIFT CYLINDERS (08) - HYDRAULICS

1

G101207

CYLINDER,Double Acting, 38.1mm Rod, 797.4mm Stroke

CYLINDER - 2-1/2" (64 mm) ID x 31-7/16" (799 mm) stroke, left-hand lift , Includes: Ref. 2 - 21, Serial Range: -17001950

1шт.

1

G101206

CYLINDER

CYLINDER - 2-1/2" (64 mm) ID x 31-7/16" (799 mm) stroke, right-hand lift, Includes: Ref. 2 - 21, Serial Range: -17001950

1шт.

1

G110483

CYLINDER ASSY.

CYLINDER - 2-1/2" (64 mm) ID x 31-7/8" (810 mm) stroke, left or right hand lift , Includes: Ref. 2 - 21, Start Serial: 17001950

2шт.

2

D49093

CYLINDER

TUBE - left-hand, G101207 or G110483 cylinder

1шт.

2

D49092

CYLINDER

TUBE - right-hand, G101206 cylinder

1шт.

G104008

GLAND

GLAND ASSEMBLY - cylinder, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G102569

PLUG

PLUG - nylon, thread locking, gland, if used

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G109456

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109456

1шт.

6

G100776

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

6a

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

SEAL - piston rod, narrow, with groove

1шт.

Part of Seal Kit, P/N G109456

1шт.

7

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G109456

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

O-RING - gland

1шт.

Part of Seal Kit, P/N G109456

1шт.

9

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

If used

1шт.

10

G35001

ROD

ROD ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 11

1шт.

11

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

BUSHING - piston rod

2шт.

12

G100706

PISTON

PISTON - G101206 or G101207 cylinder

1шт.

13

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

SEAL - piston

1шт.

Part of Seal Kit, P/N G109456

1шт.

14

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit, P/N G109456

1шт.

15

G100714

RING

RING - wear, piston

1-2шт.

Part of Seal Kit, P/N G109456

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

G101206 or G101207 cylinder

1шт.

16

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

G110483 cylinder

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

WASHER - hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1-3шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

If used

1шт.

20

G110458

PISTON

PISTON - G110483 cylinder

1шт.

21

221-849

PLUG,Hex Soc, 1/8"-27

PLUG - hex socket, 1/8 inch PT, if used

1шт.

G109456

GASKET KIT

KIT - seal, includes Refs. 5, 6, 6A, 7, 8, 13, 14 and 15

1шт.
