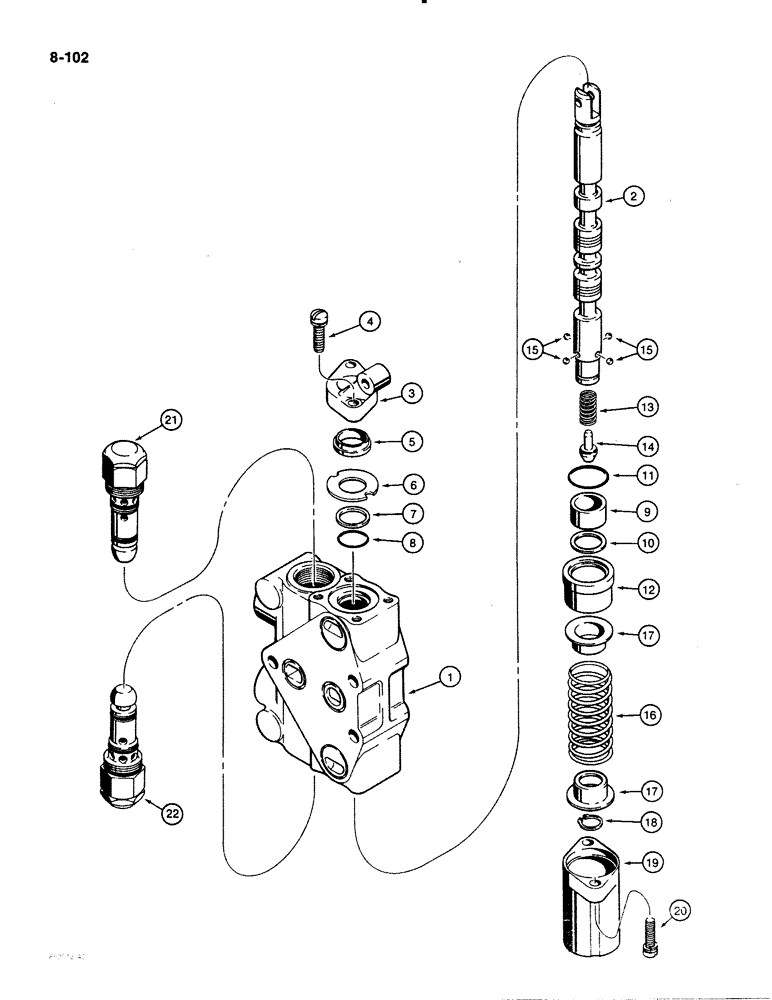

Запчасти Case 480E LL (8-102) - PTO AND THREE-POINT HITCH CONTROL VALVES, LIFT SECTION WITH TWO CIRCUIT RELIEF VALVES (08) - HYDRAULICS

N8692

KNIFE SECTION

SECTION, KNIFE SECTION ASSEMBLY - hitch lift, with two circuit relief valves, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

3

N7114

BRACKET

RETAINER AND BRACKET - section

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

SCREW - slotted fillister, with lock washer, 1/4" NC x 7/8"

2шт.

5

N7029

SCRAPER

WIPER - spool

1шт.

6

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - seal

1шт.

7

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

BACKUP RING - spool O-ring

1шт.

8

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING - spool seal

1шт.

9

N7038

SLEEVE

SLEEVE - spool

1шт.

10

N7036

SEALING RING

SEALRING SEAL- ring, square section

1шт.

11

343900R1

O-RING,1.051" ID x 0.07" Width

O-RING - detent sleeve to section housing

1шт.

12

N7034

SLEEVE VALVE

SLEEVE - detent

1шт.

13

N7037

SPRING

SPRING - detent

1шт.

14

N7035

VALVE POPPET

PLUNGER - ball retaining

1шт.

15

211-6

BALL,7/32" Dia

Steel

4шт.

16

N7032

SPRING

CENTERING SPRING - spool

1шт.

17

N7033

SEAT

SEAT - centering spring

2шт.

18

103-1162

SNAP RING,#62, Ext

Ring, Snap, , spool, lower spring seat, Hose #62, Ext

1шт.

19

N7031

COVER

CAP - valve spool

1шт.

20

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

SCREW - slotted fillister, with lock washer, 1/4" NC x 7/8"

2шт.

21

H593228

VALVE

CIRCUIT RELIEF VALVE - upper port, parts list Figure 8-108

1шт.

22

D122552

VALVE, PRESSURE RELI

EF CIRCUIT RELIEF VALVE - lower port, parts list Figure 8-108

1шт.
