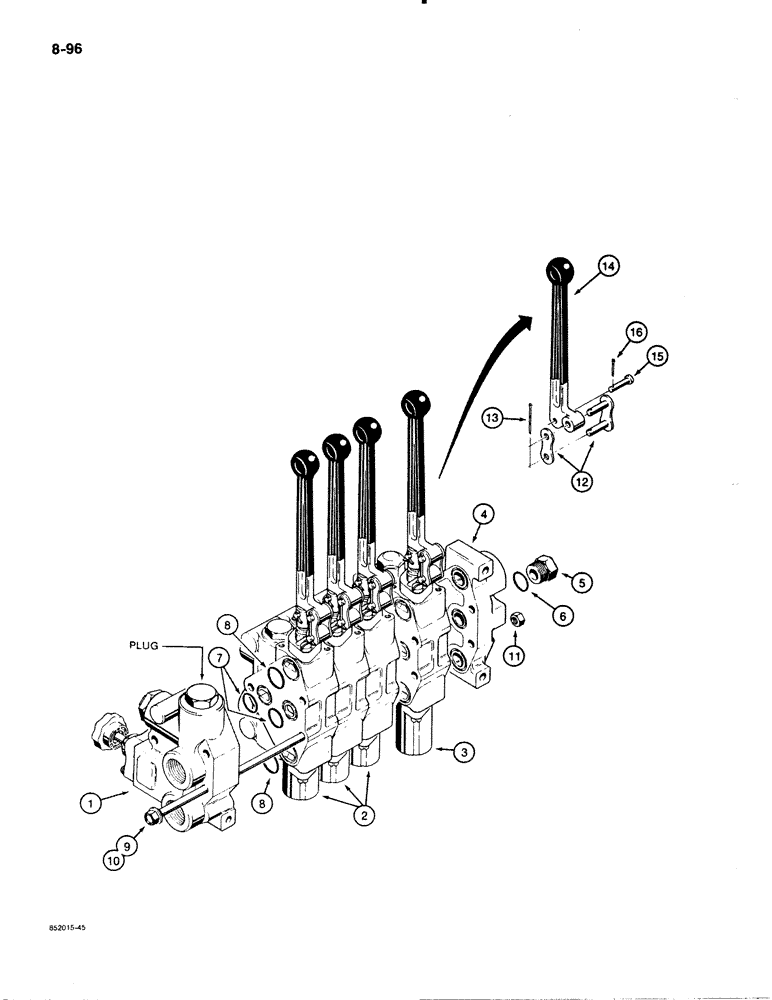

Запчасти Case 480E LL (8-096) - THREE-POINT HITCH CONTROL VALVES, FOUR AND FIVE SPOOL VALVE ASSY., D122164 & D122165 CONTROL VALVES (08) - HYDRAULICS

D122164

VALVE

SPARE PART CONTROL VALVE ASSEMBLY - hitch, four-spool, 480E only, Ref. 1 has a plugged main relief port, if used, Includes: Ref. 1 - 16

1шт.

D122165

VALVE

SPARE PART CONTROL VALVE ASSEMBLY - hitch, five-spool, 480E LL only, Ref. 1 has a plugged main relief port, if used, Includes: Ref. 1 - 16

1шт.

1

D122551

VALVE

END SECTION - inlet-outlet, parts list Figure 8-100

1шт.

2

N8691

KNIFE SECTION

SECTION, KNIFE SECTION - implement, pitch, and tilt, section does not include control lever and mounting, see Refs. 12-16 below, parts list Figure 8-104

3-4шт.

3

N8692

KNIFE SECTION

SECTION, KNIFE SECTION - lift, section does not include control lever and mounting, see Refs. 12-16 below, parts list Figure 8-102

1шт.

D122553

PLATE

END SECTION - cover plate, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, 3/4 tube, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

7

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

O-RING - between sections, 13/16" (21 mm) ID

10-12шт.

8

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

O-RING - between sections, 15/16" (24 mm) ID

10-12шт.

9

D86578

BOLT

BOLT - tie, 3/8" - 24 NF x 9-1/2", four-spool valve only

3шт.

10

N7117

BOLT

BOLT - tie, 3/8" - 24 NF x 11-1/4", five-spool valve only

3шт.

11

129-123

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

3шт.

12

H620344

LINK

LINK ASSEMBLY - lever

4-5шт.

13

132-17

COTTER PIN,1/16" x 2"

COTTER PIN - 1/16" x 1-1/2", plated

4-5шт.

14

N7113

HANDLE

CONTROL LEVER - section

4-5шт.

15

D88727

PIN

PIN - control lever to spool eye

4-5шт.

16

132-379

COTTER PIN,5/64" x 1/2"

PIN, SPLIT (COTTER), 5/64" x 1/2"

4-5шт.
