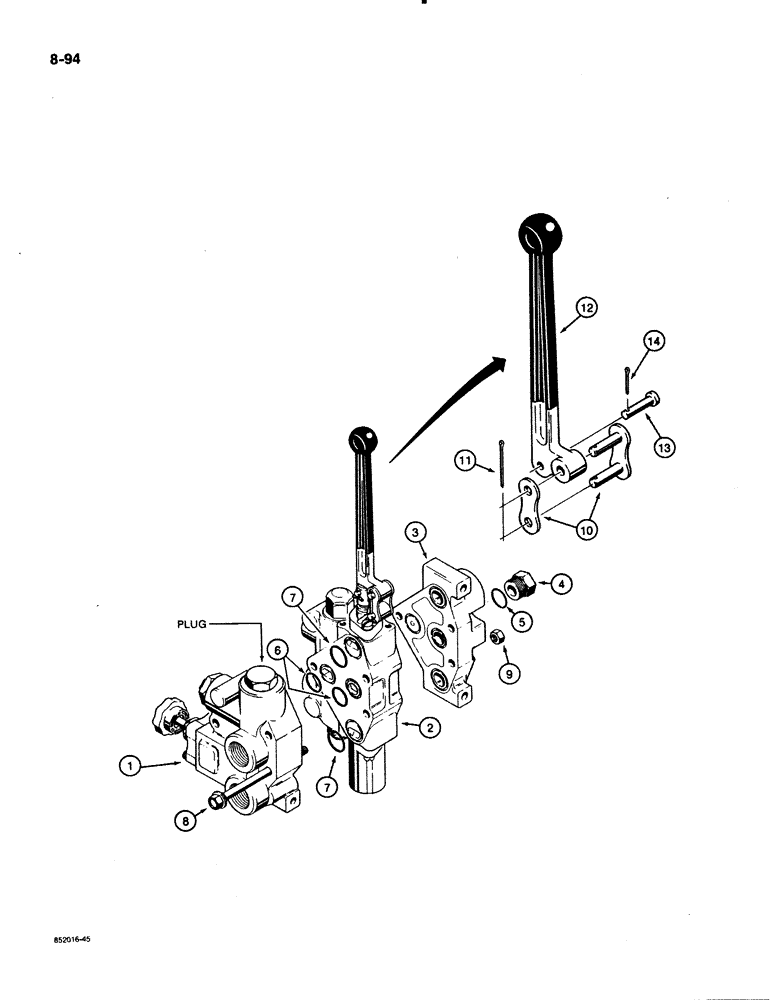

Запчасти Case 480E LL (8-094) - THREE-POINT HITCH CONTROL VALVE, ONE-SPOOL VALVE ASSEMBLY, D122163 CONTROL VALVE (08) - HYDRAULICS

D122163

VALVE

CONTROL VALVE ASSEMBLY - hitch, one-spool, Ref. 1 has a plugged main relief port, Includes: Ref. 1 - 14

1шт.

1

D122551

VALVE

END SECTION - inlet-outlet, parts list Figure 8-100

1шт.

2

N8692

KNIFE SECTION

SECTION, KNIFE SECTION - lift, section does not include control lever and mounting, see Refs. 10-14 below, parts list Figure 8-102

1шт.

D122553

PLATE

END SECTION - cover plate, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

4

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, 3/4 tube

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

6

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

O-RING - between sections, 13/16" (21 mm) ID

4шт.

7

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

O-RING - between sections, 15/16" (24 mm) ID

4шт.

8

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

BOLT - tie, 3/8" - 24 NF x 4-1/4" ( replaced N7039 )

3шт.

9

425-106

NUT,3/8"-16, Cl 5

NUT, (Replaced 129-123 ) 3/8"-16, G5

3шт.

10

H620344

LINK

LINK ASSEMBLY - lever

1шт.

11

132-17

COTTER PIN,1/16" x 2"

COTTER PIN - 1/16" x 1-1/2", plated

1шт.

12

N7113

HANDLE

CONTROL LEVER - lift section

1шт.

13

D88727

PIN

PIN - control lever to spool eye

1шт.

14

132-379

COTTER PIN,5/64" x 1/2"

PIN, SPLIT (COTTER), 5/64" x 1/2"

1шт.
