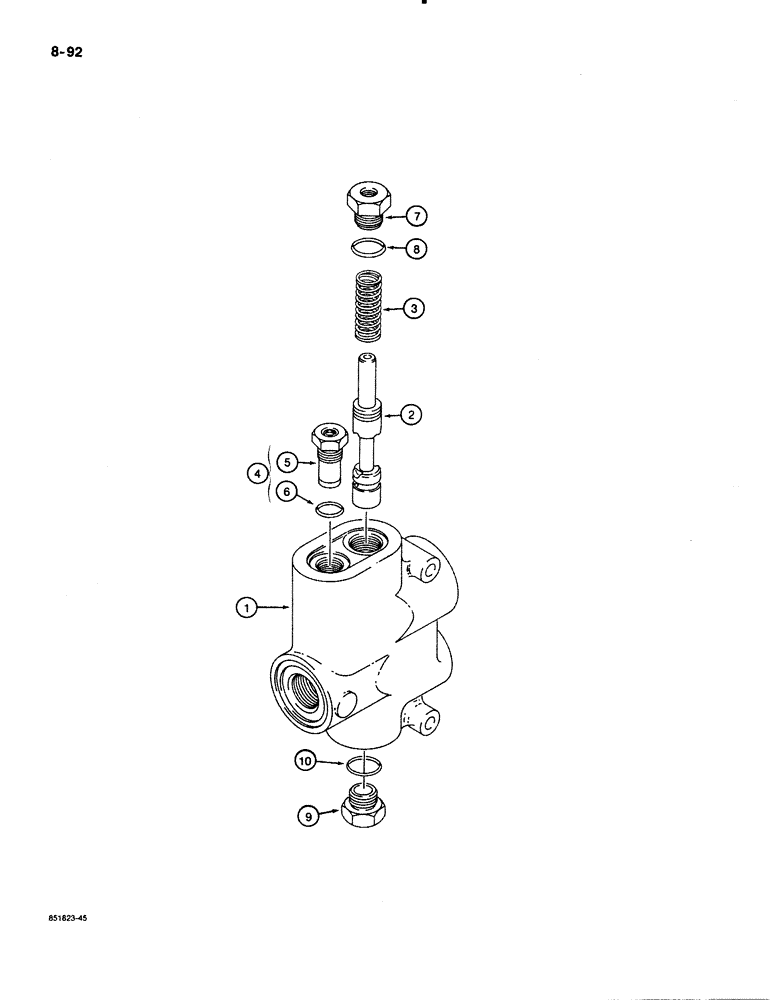

Запчасти Case 480E LL (8-092) - D132476 FLOW CONTROL VALVE (08) - HYDRAULICS

D132476

VALVE

FLOW CONTROL VALVE ASSEMBLY - complete, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - flow control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - flow control valve

1шт.

3

D82777

SPRING

CENTERING SPRING - spool

1шт.

4

N7163

CARTRIDGE

RELIEF VALVE - complete, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief, component parts not serviced separately

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

S114009

PLUG

PLUG - flow control valve

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

86512512

PLUG,7/8" - 14 ORB

PLUG ASSEMBLY - hex, 5/8 tube 7/8-14 inch thread, Incl. Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.
