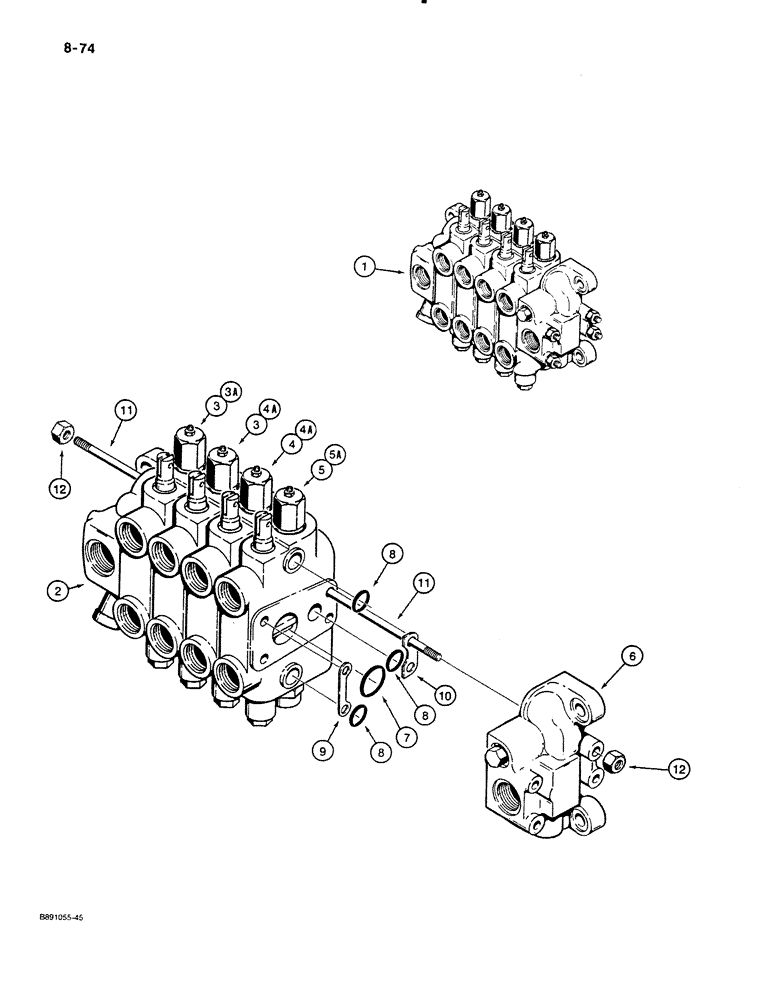

Запчасти Case 480E LL (8-074) - BACKHOE CONTROL VALVES, MODELS WITHOUT EXTENDABLE DIPPER 480E MODELS ONLY (08) - HYDRAULICS

1

G109542

VALVE

CONTROL VALVE ASSEMBLY - foot swing models, without extendable dipper, Includes: Ref. 2 - 12

1шт.

1

G109535

VALVE

CONTROL VALVE ASSEMBLY - hand swing models, without extendable dipper, Includes: Ref. 2 - 12

1шт.

2

G33108

MANIFOLD

OUTLET SECTION - parts list Figure 8-78

1шт.

3

G109513

HYD VALVE SECTION

DIPPER AND BUCKET SECTION - parts list Figure 8-80, used with G109535 control valve assembly

2шт.

3a

G109514

KNIFE SECTION

SECTION, KNIFE BOOM SECTION - parts list Figure 8-84, used with G109542 control valve assembly

1шт.

4

G109522

VALVE

SWING SECTION - parts list Figure 8-82, used with G109535 control valve assembly

1шт.

4a

G109513

HYD VALVE SECTION

DIPPER AND BUCKET SECTION - parts list Figure 8-80, used with G109542 control valve assembly

2шт.

5

G109514

KNIFE SECTION

SECTION, KNIFE BOOM SECTION - parts list Figure 8-84, used with G109535 control valve assembly

1шт.

5a

G109522

VALVE

SWING SECTION - parts list Figure 8-82, used with G109542 control valve assembly

1шт.

6

G33102

MANIFOLD

INLET SECTION - parts list Figure 8-78

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

O-RING - section ports, large

5шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

O-RING - 15/16 x 1-1/8 inch, section ports, small

15шт.

9

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve

5шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve

5шт.

11

G34942

TIE-ROD

STUD - tie, 3/8" - 16 NC x 13-3/4"

4шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.
