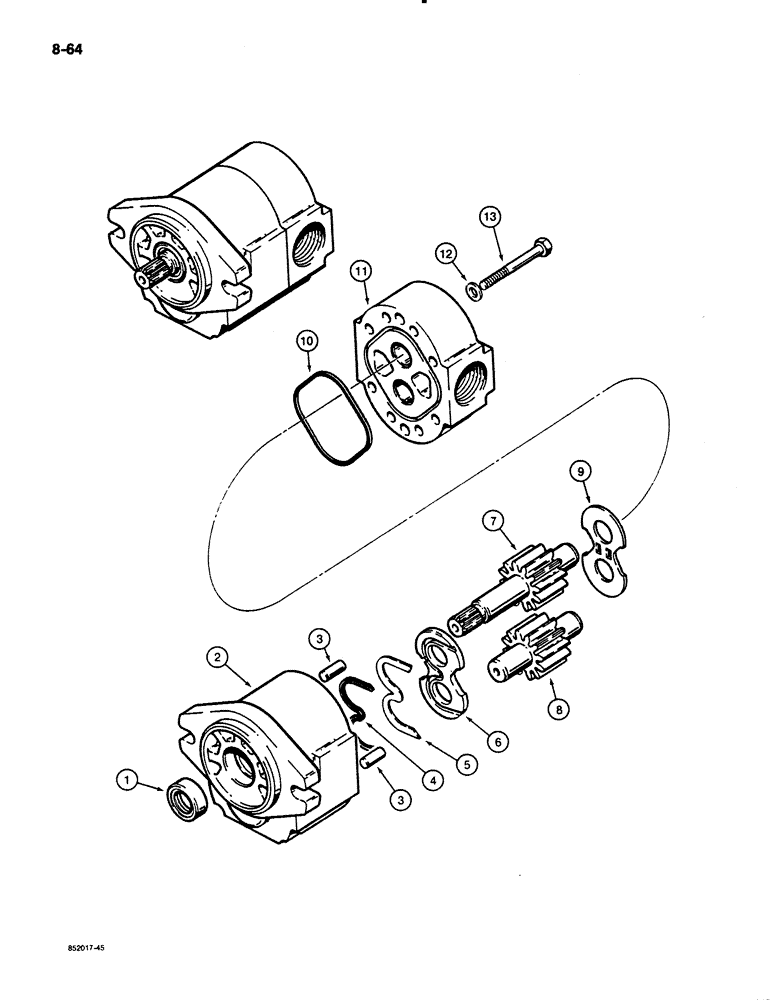

Запчасти Case 480E LL (8-064) - D73079 HYDRAULIC PUMP (08) - HYDRAULICS

D73079

PUMP

PUMP ASSEMBLY - hydraulic equipment, Includes: Ref. 1 - 13

1шт.

Ref D73079 pump assy - Order 1 each of

1шт.

102480A1 pump, 116574A1 hose, 126406A1 suction tube and 126408A1 pressure tube. It may be necessary to modify tube to fit (possibly cutting tube and adding an extension).

1шт.

1

D73624

SEAL

OIL SEAL - shaft

1шт.

2

D74415

BODY

BODY - shaft end

1шт.

3

D58188

PIN

DOWEL PIN - body and cover

2шт.

4

N9771

SEAL

SEAL - grooved, wear plate

1шт.

5

N9772

SEAL

SEAL - flat, wear plate

1шт.

6

N9773

PLATE

WEAR PLATE - gear, bronze

1шт.

7

D74416

GEAR

DRIVE GEAR - pump

1шт.

8

D74417

GEAR

DRIVEN GEAR - pump

1шт.

9

D73623

PLATE

THRUST PLATE - gear

1шт.

10

D73622

SPECIAL RING

RING - seal, square section

1шт.

11

D73615

COVER

COVER- port end

1шт.

12

D74441

WASHER

WASHER - special

8шт.

13

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 3 1/4", G5

8шт.
