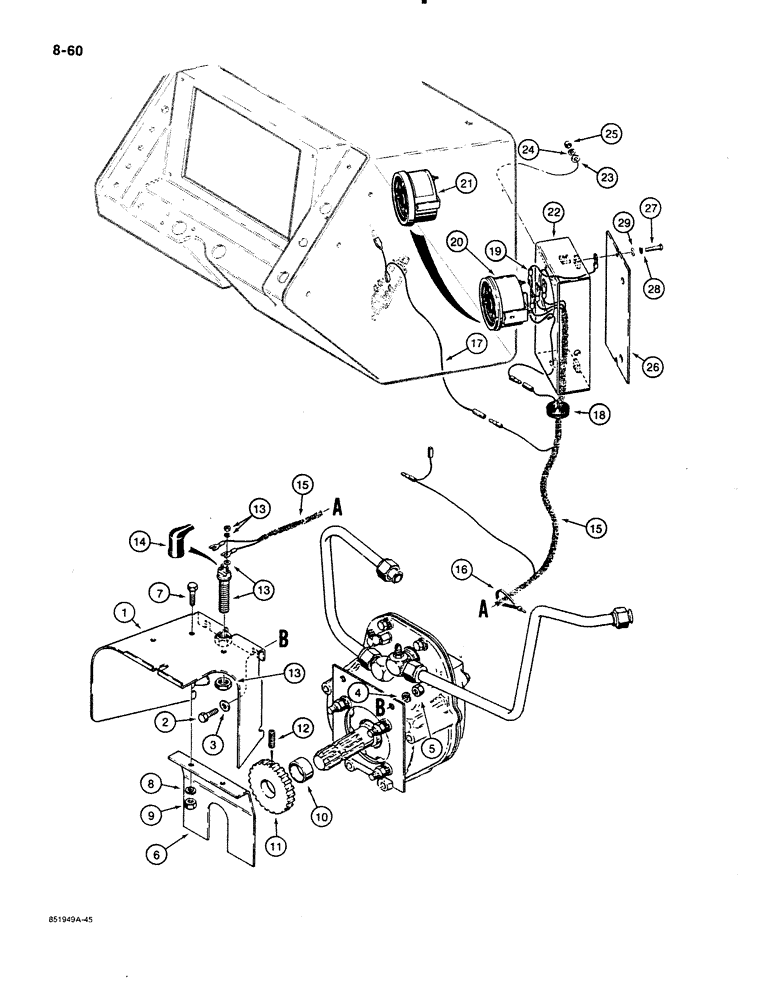

Запчасти Case 480E LL (8-060) - PTO SHIELD AND SPEED INDICATOR (08) - HYDRAULICS

1

D75219

GUARD

SHIELD - PTO shaft

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

3

195-2028

WASHER,.391" x 5/8" x .065"

WASHER - flat, 25/64 x 5/8 x 1/16 inch

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

D74799

SHIELD

SHIELD - sensor

1шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

2шт.

10

D74632

SPACER

SPACER - disc

1шт.

11

D74741

DISC

DISC - pickup

1шт.

12

83-414

SET SCREW,Hex Soc, 1/4"-20 x 7/8"

SET SCREW - hex socket, cup point, 1/4" - 20 NC x 7/8"

1шт.

13

D75217

SENSOR

SENSOR - speed indicator, includes hardware

1шт.

14

R29627

BOOT

GUARD - rubber

1шт.

15

D134596

HARNESS

HARNESS - wire

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

3шт.

17

D75454

ELECTRICAL WIRE

WIRE WIRE - tachometer harness to circuit breaker

1шт.

18

49567

GROMMET

GROMMET - harness

1шт.

19

D74877

ELECTRICAL WIRE

WIRE WIRE - ground

1шт.

20

D134595

TACHOMETER

GAUGE - PTO speed indicator, no longer available, order D139034 gauge for service

1шт.

21

D139034

TACHOMETER

GAUGE - PTO speed indicator

1шт.

22

D134617

BRACKET

BRACKET - gauge

1шт.

23

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

1шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

25

425-105

NUT,5/16"-18, G5

1шт.

26

D74801

COVER

COVER - bracket

1шт.

27

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

29

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

2шт.
