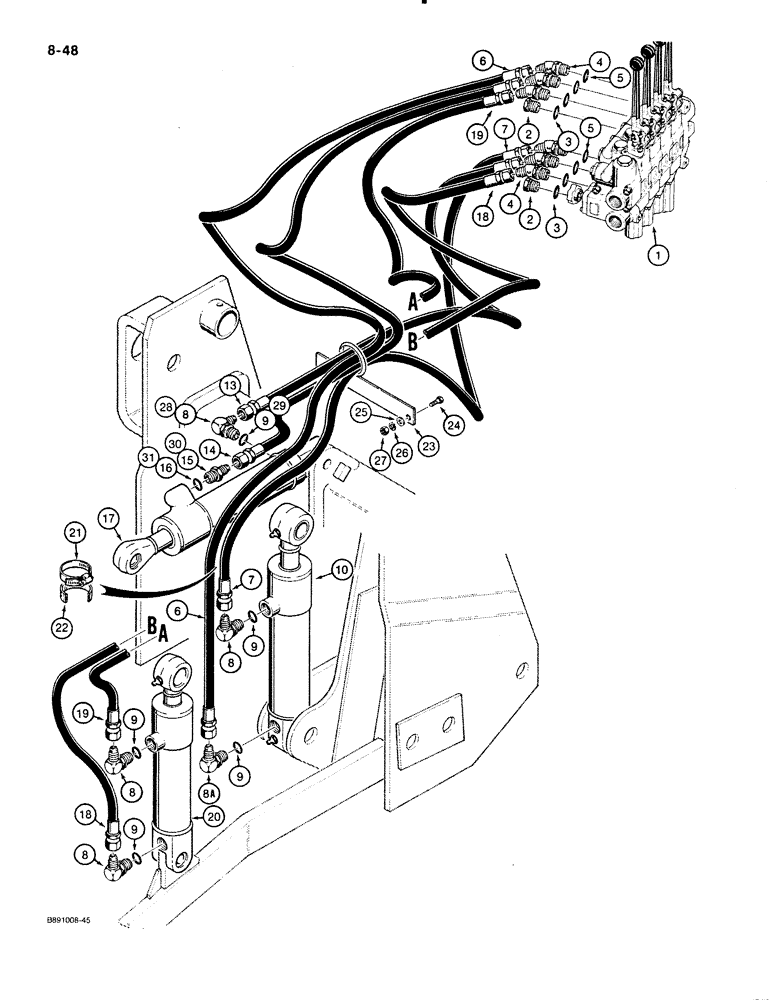

Запчасти Case 480E LL (8-048) - PTO AND THREE-POINT HITCH CYLINDER HYDRAULIC CIRCUIT, USED WITH HYD. HITCH (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - three-point hitch, four spool or five spool (four spool shown), for correct assembly and components, see Figures 8-94 and 8-96, for mounting and controls see Figure 9-66

1шт.

2

214389

PLUG,3/4" - 16 ORB

PLUG, , Assy, 1/2 tube, Valve ports, If used, Includes Ref. 3 Hex Hd, 3/4"-16 ORB

2-4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Incl. Ref 5

5-6шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H257279

HOSE

HOSE - 50" (1270 mm) long, to closed end of lift cylinder

1шт.

7

R32709

HOSE ASSY.

HOSE - 40" (1016 mm) long, to rod end of lift cylinder

1шт.

8

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adjustable, O-ring boss

3-4шт.

8a

D135096

ELBOW

ELBOW - 90 degree, restriction, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk, 218-5121 or D135096 elbow

1шт.

10

G101189

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, parts list Figure 8-138

1шт.

13

D58825

HOSE

HOSE - 32" (813 mm) long, to closed end of pitch cylinder

1шт.

14

R38683

HOSE

HOSE - 44" (1118 mm) long, to rod end of pitch cylinder

1шт.

15

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, if used, Incl. Ref 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - pitch, for correct assembly and components, see Figures 8-142 and 8-144

1шт.

18

D34401

HOSE ASSY.

HOSE - 60" (1524 mm) long, to closed end of tilt cylinder

1шт.

19

D51686

HOSE

HOSE - 54" (1372 mm) long, to rod end of tilt cylinder

1шт.

20

G101188

JACK BODY

CYLINDER ASSEMBLY - tilt, parts list Figure 8-140

1шт.

21

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

1шт.

22

REF

INSTRUCTION

GUARD - hose protector, clear vinyl tubing, 4" (102 mm) long, cut from D95252, see below

1шт.

23

D72680

BRACKET

BRACKET - hose guide

1шт.

24

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

25

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

2шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

27

425-105

NUT,5/16"-18, G5

2шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, If used, Includes Ref. 29

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss, if used, Incl. Ref 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

D95252

TUBE

GUARD - hose protector, clear vinyl tubing, 7-1/2" (190 mm) long

1шт.
