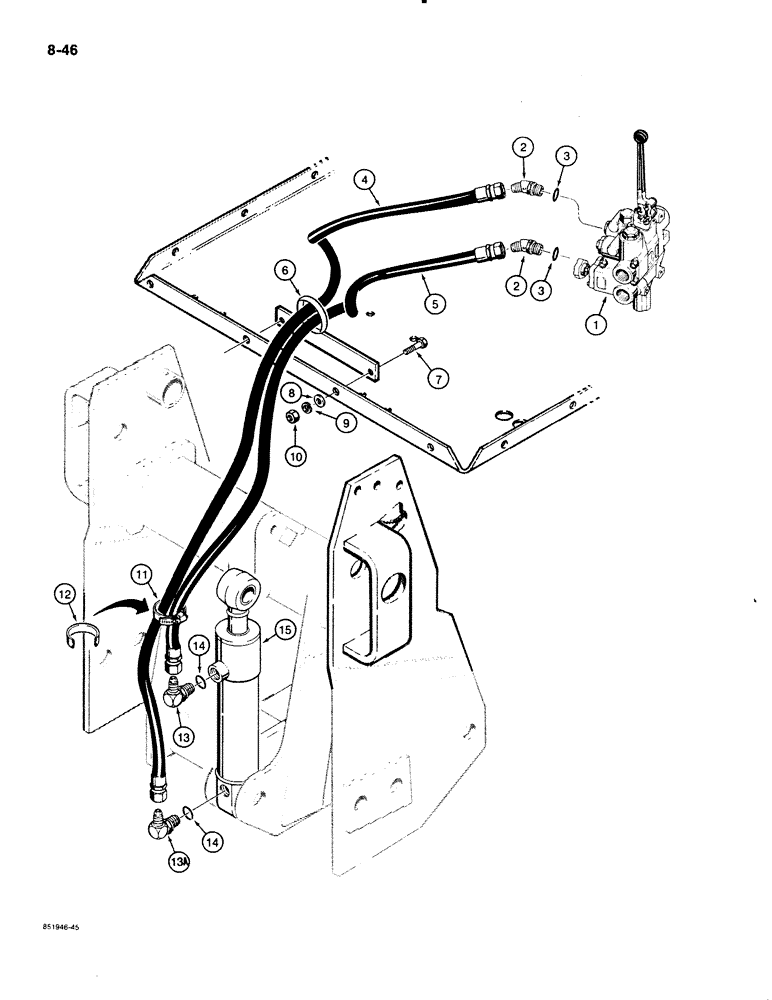

Запчасти Case 480E LL (8-046) - THREE-POINT HITCH CYLINDER HYDRAULIC CIRCUIT, USED WITH MECHANICAL HITCH (08) - HYDRAULICS

1

D122163

VALVE

CONTROL VALVE - three-point hitch, one spool, parts list Figure 8-94, mounting and controls on Figure 9-66

1шт.

2

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H257279

HOSE

HOSE - 50" (1270 mm) long, to closed end of lift cylinder

1шт.

5

R32709

HOSE ASSY.

HOSE - 40" (1016 mm) long, to rod end of lift cylinder

1шт.

6

D72680

BRACKET

BRACKET - hose guide

1шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

2шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

1шт.

12

REF

INSTRUCTION

GUARD - hose protector, clear vinyl tubing, 4" (102 mm) long, cut from D95252 guard, see below

1шт.

13

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adjustable

1шт.

13a

D135096

ELBOW

ELBOW - 90 degree, restriction, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk, 218-5121 or D135096 elbow

1шт.

15

G101189

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, parts list Figure 8-138

1шт.

D95252

TUBE

GUARD - hose protector, clear vinyl tubing, 7-1/2" (190 mm) long

1шт.
