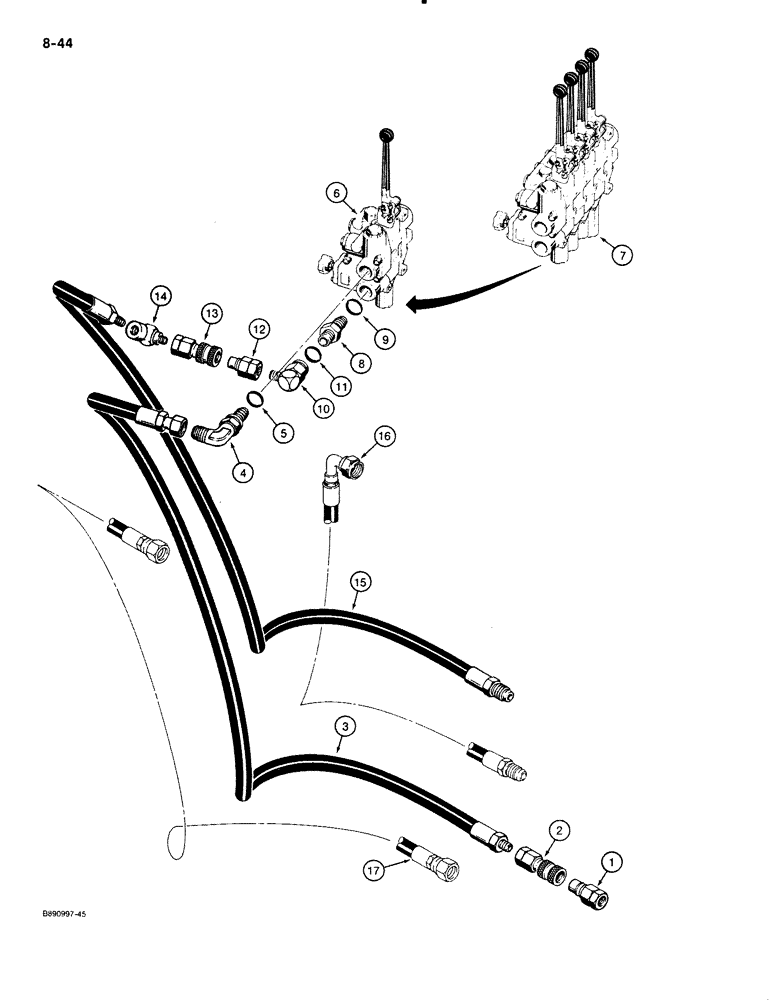

Запчасти Case 480E LL (8-044) - THREE-POINT HITCH VALVE HYDRAULIC CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
D52694
QUICK MALE COUPLING
QUICK DISCONNECT - coupling, male, parts list Figure 8-112, if used
1шт.
2
D52800
COUPLING, QUICK, FEM
QUICK DISCONNECT - coupling, female, parts list Figure 8-112, if used
1шт.
3
36232
HOSE ASSY.
HOSE - 32" (813 mm) long, control valve inlet, models with quick disconnects
1шт.
4
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. Ref. 5
1шт.
5
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
O-RING - 59/64 ID x 7/8 inch wide
1шт.
6
D122163
VALVE
CONTROL VALVE - three-point hitch, one spool, parts list Figure 8-94, controls and mounting on Figure 9-66
1шт.
7
REF
INSTRUCTION
CONTROL VALVE - four or five spool, four spool shown, for correct assembly and components, see Figures 8-96 and 8-98, for controls and mounting, see page 9-67
1шт.
8
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Adapter, Straight, O-Ring boss, Incl. Ref. 9
1шт.
9
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
O-RING - 59/64 ID x 7/8 inch wide
1шт.
10
218-990
ELBOW,90 Degree, 1 3/16"-12 Sw x 3/4" NPT
ELBOW - swivel, 90 degree, male, models with quick disconnects, Includes: Ref. 11
1шт.
11
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
O-RING - 59/64 ID x 7/8 inch wide
1шт.
12
D52694
QUICK MALE COUPLING
QUICK DISCONNECT - coupling, male, parts list Figure 8-112, if used
1шт.
13
D52800
COUPLING, QUICK, FEM
QUICK DISCONNECT - coupling, female, parts list Figure 8-112, if used
1шт.
14
217-1020
90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male
Models with quick disconnects
1шт.
15
D49118
HOSE
HOSE - 33" (838 mm) long, control valve outlet, models with quick disconnects
1шт.
16
D144251
HOSE ASSY.
HOSE - 1050 mm long, control valve outlet, models without quick disconnect
1шт.
17
D144250
HOSE ASSY.
HOSE - 900 mm long, control valve inlet, models without quick disconnect
1шт.
Выбрано товаров: 17
