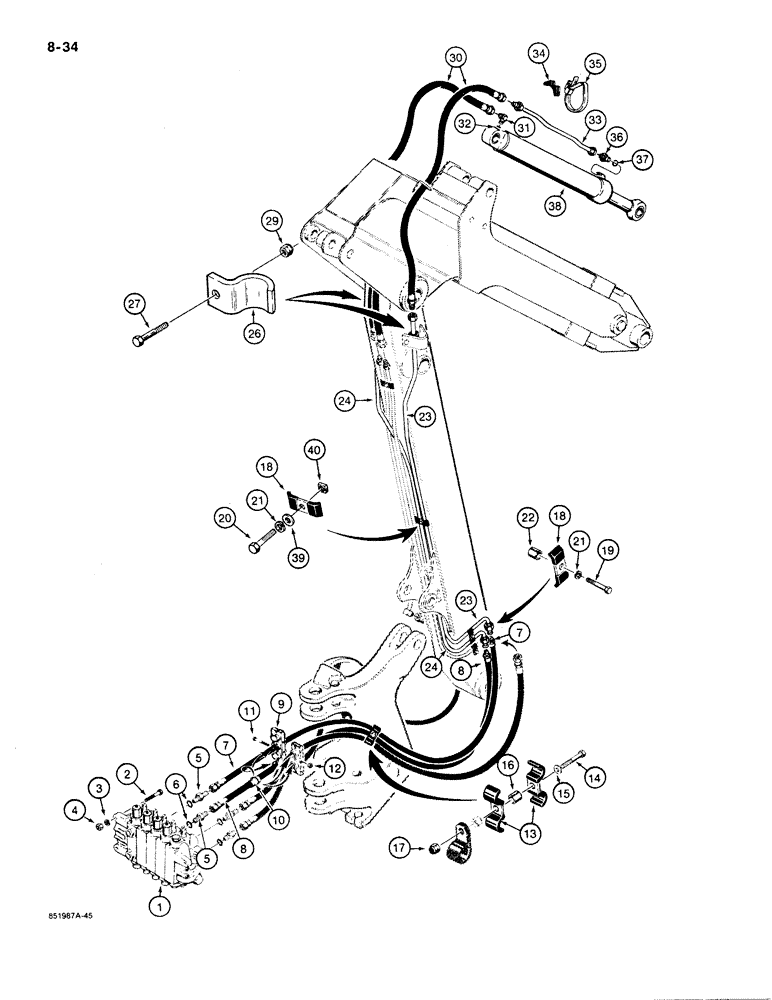

Запчасти Case 480E LL (8-034) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXTENDABLE DIPPER 480E MODELS ONLY (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, for correct assembly and components, see figures 8-74 and 8-76

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - valve ports, Includes: Ref. 6

3шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

7

D121618

HOSE ASSY.

HOSE - 51-3/16" (1300 mm) long, from top valve port

1шт.

Ref. 7 and Ref. 8 are switched around at hydraulic tubes Refs. 23 and 24 on models with hand swing.

1шт.

8

L53351

HOSE

HOSE - 45" (1143 mm) long, from bottom valve port

1шт.

Ref. 7 and Ref. 8 are switched around at hydraulic tubes Refs. 23 and 24 on models with hand swing.

1шт.

9

D99151

CLAMP

CLAMP - hose, includes two halves

1шт.

10

D99822

BUSHING

GROMMET - hose

2шт.

11

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

BOLT - hex, 5/16 NC x 4-1/2 inch

3шт.

12

131-4

LOCK NUT,5/16"-18, GB

3шт.

13

D42833

CLAMP

CLAMP - hose, at swing tower

2шт.

14

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT, , For extendable dipper hose clamp and spacer, see Figure 8-38, Refs. 13 and 14 Hex, 3/8"-16 x 2 1/2", G5

1шт.

15

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

1шт.

16

R46103

SPACER

SPACER - clamp, see Figure 8-38 for second spacer Ref. 14

1шт.

17

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

18

A13622

PLATE, LOCKING

CLAMP - tube, at boom

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

D76209

SPACER

SPACER - tube clamp, side of boom

1шт.

23

D121624

TUBE

TUBE - right hand

1шт.

24

D121626

TUBE

TUBE - left hand

1шт.

26

L104914

CLAMP

CLAMP - tube

2шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

29

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

30

L53350

HOSE ASSY.

HOSE - 55" (1397 mm) long, to bucket cylinder

2шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Assy, Adj., Incl. Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

D121628

TUBE ASSY.

TUBE - to rod end of bucket cylinder

1шт.

34

D38648

BLOCK

SPACER - tube clamp

2шт.

35

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adjustable, includes screw, No. 64, type F

2шт.

36

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

G103503

CYLINDER BLOCK

CYLINDER - bucket, parts list Figure 8-132

1шт.

39

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16"), used on models with cage on boom for square nut

1шт.

40

25-226

SQUARE NUT,Sq, 3/8"-16

NUT - square, 3/8 inch NC, if used

1шт.
