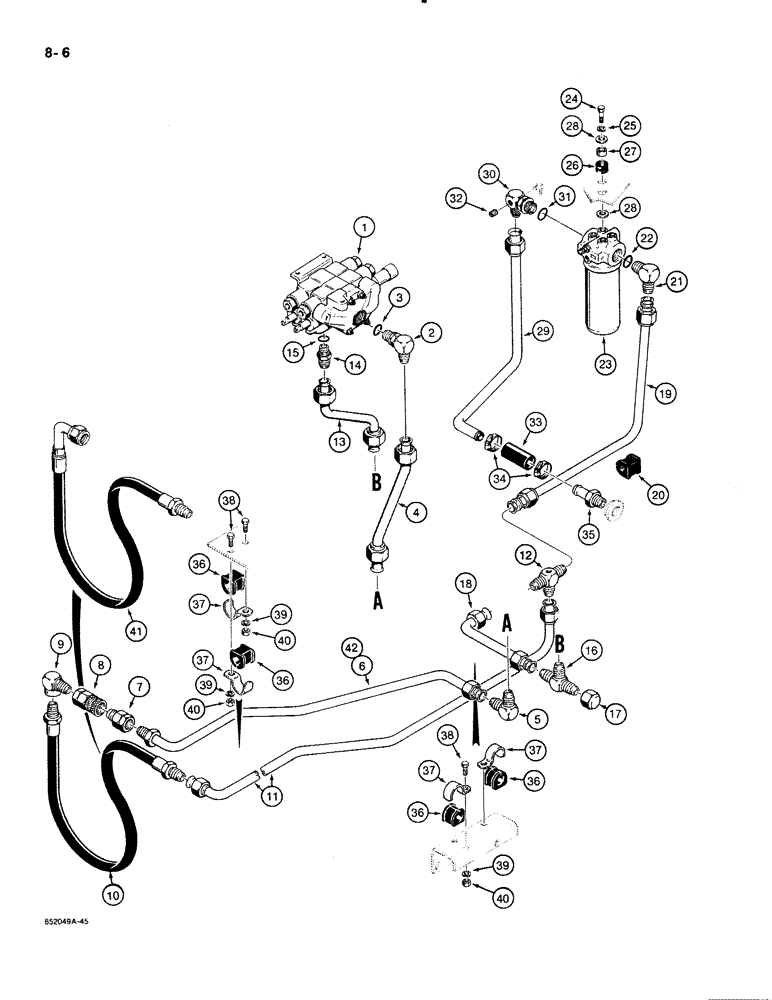

Запчасти Case 480E LL (8-006) - EQUIPMENT HYDRAULIC SYSTEM, REAR EQUIPMENT AND RETURN LINES (08) - HYDRAULICS

1

G109859

VALVE, CHECK

CONTROL VALVE - loader, parts list Figure 8-66

1шт.

2

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

4

D127088

TUBE ASSY.

TUBE - from control valve

1шт.

5

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

ELBOW - 90 degree

1шт.

6

D74770

HYD TUBE,1" OD x 15.8, 33.25" L

TUBE - to hydraulic coupling, models with quick disconnect

1шт.

7

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, parts list Figure 8-112, if used

1шт.

8

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 8-112, if used

1шт.

9

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Models with quick disconnect

1шт.

10

D49118

HOSE

HOSE - 33" (838 mm) long, return, models with quick disconnect

1шт.

11

D129348

TUBE ASSY.

TUBE - return, rear equipment

1шт.

12

D129474

TEE

TEE - special, return tubes, attaches to 218-481 elbow (item 18) on Figure 5-4

1шт.

13

D127092

TUBE ASSY.

TUBE - from control valve outlet

1шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Incl. Ref. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

16

218-589

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Run

TEE - return line

1шт.

17

218-335

CAP,37 Degree, 1 1/16"-12

Tee

1шт.

18

D129350

TUBE

TUBE - tee to tee, loader control valve return

1шт.

19

D132107

TUBE ASSY.

TUBE - to filter, for models with PTO, see Figure 8-50

1шт.

20

D67297

BLOCK

INSULATOR - tube

1шт.

21

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, for models with PTO, see Figure 8-50, Incl. Ref. 22

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RING - 1-11/16 x 1-13/32 x 1/8 inch

1шт.

23

D131293

FILTER

FILTER - hydraulic oil, parts list Figure 8-110

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

25

492-11038

LOCK WASHER,3/8"

2шт.

26

D132895

GROMMET

GROMMET - filter mounting bracket

2шт.

27

D76209

SPACER

SPACER - filter mounting bracket

2шт.

28

195-2042

WASHER,.469" x 1 1/2" x .134"

WASHER - flat, 7/16", special

4шт.

29

D132109

TUBE ASSY.

TUBE -, Serial Range: filter-reservoir

1шт.

30

D132008

ELBOW

ELBOW - 90 degree, adjustable, see page 7-15, (item 6) D128689 hose and (item 10) 217-292 elbow for attaching parts, Includes: Ref. 31

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RING - 1-11/16 x 1-13/32 x 1/8 inch

1шт.

32

221-1849

PLUG

PLUG - hex socket, 1/8 inch PT

1шт.

33

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

HOSE - 1" (25 mm) ID x 3-1/2" (89 mm), Serial Range: long,-tank

1шт.

34

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

35

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

STEM FITTING - straight, at hydraulic reservoir

1шт.

36

D67297

BLOCK

INSULATOR - tube clamp

4шт.

37

D68846

CLAMP

CLAMP - tube

4шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

39

492-11038

LOCK WASHER,3/8"

4шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

41

D144251

HOSE ASSY.

HOSE - 1050 mm long, return, models without quick disconnect, if used

1шт.

42

D144257

TUBE ASSY.

TUBE - models without quick disconnect, if used

1шт.
