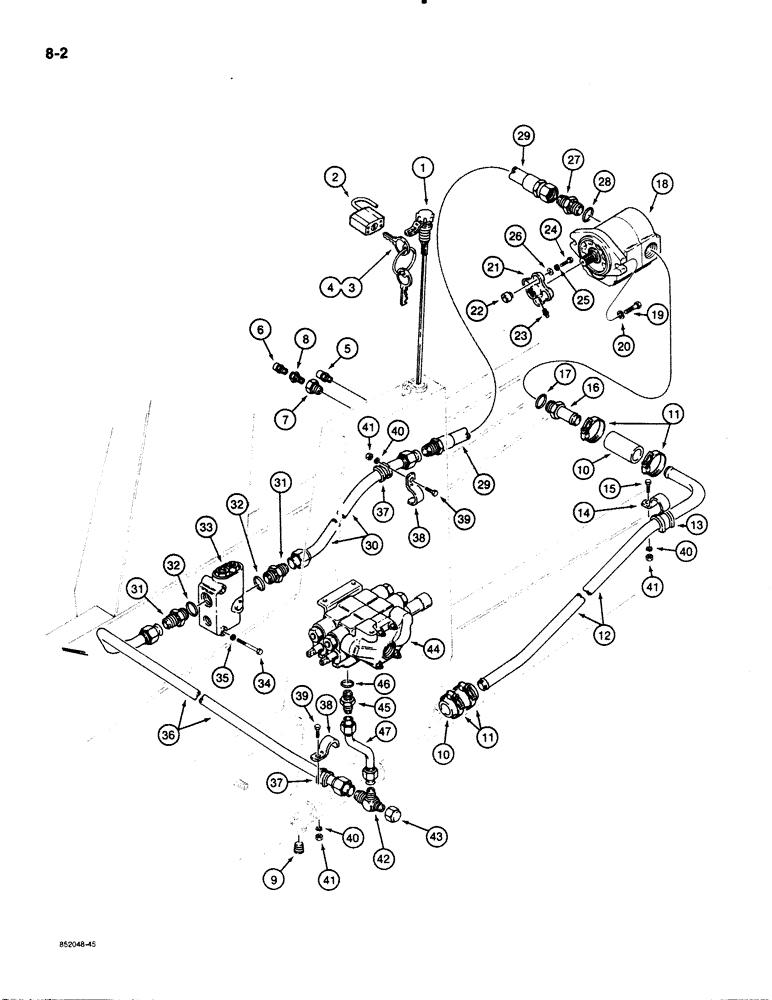

Запчасти Case 480E LL (8-002) - EQUIPMENT HYDRAULIC SYSTEM, RESERVOIR TO LOADER CONTROL VALVE (08) - HYDRAULICS

1

D94386

DIPSTICK

DIPSTICK - reservoir

1шт.

2

D93753

PADLOCK

PADLOCK - includes keys, if used, Includes: Ref. 3 - 4

1шт.

3

R29555

KEY

KEY - for Master padlock only

2шт.

4

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

5

D94060

VALVE

RELIEF VALVE - air outlet

1шт.

6

R15538

VALVE

RELIEF VALVE - air inlet

1шт.

7

D63506

ADAPTER

ADAPTER - relief valve

1шт.

8

D63543

BREATHER

FILTER - relief valve

1шт.

9

D123893

PLUG

DRAIN PLUG - reservoir, hex head, 3/4" NPT

1шт.

10

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

suction

2шт.

11

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

12

D132085

TUBE

TUBE - suction

1шт.

13

D67298

INSULATOR

INSULATOR - tube clamp

1шт.

14

D68845

MOUNTING CLIP

CLAMP - suction tube

1шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

16

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Stem - straight, hose to pump, Incl. Ref. 17

1шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

O-RING - fitting

1шт.

18

D73079

PUMP

HYDRAULIC PUMP - equipment, parts list Figure 8-64

1шт.

19

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

21

D140524

FLEXIBLE COUPLING,13T

COUPLING - hydraulic pump, Includes: Ref. 22 - 23

1шт.

22

D142330

BUSHING

BUSHING - coupling

4шт.

23

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

24

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

BOLT, Hex, 7/16"-14 x 1 1/2", G5

4шт.

25

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

26

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

WASHER - flat, plated

4шт.

27

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch thread, Incl. Ref. 28

1шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RING - 1-11/16 x 1-13/32 x 1/8 inch

1шт.

29

D68547

HOSE,19.05mm ID x 200mm L, SAE 100R2

HOSE - 20" (508 mm) long, pump pressure

1шт.

30

D132101

TUBE ASSY.

TUBE - pressure, from hydraulic pump

1шт.

31

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch thread, Incl. Ref. 32

2шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RING - 1-11/16 x 1-13/32 x 1/8 inch

1шт.

33

D132476

VALVE

FLOW CONTROL VALVE - parts list Figure 8-92

1шт.

34

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

BOLT, Hex, 5/16"-18 x 3", G5

2шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

36

D132099

TUBE ASSY.

TUBE - pressure, to loader control valve

1шт.

37

D67297

BLOCK

INSULATOR - tube clamp

2шт.

38

D68846

CLAMP

CLAMP - tube

2шт.

39

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

40

492-11038

LOCK WASHER,3/8"

3шт.

41

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

42

218-589

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Run

TEE - male

1шт.

43

218-335

CAP,37 Degree, 1 1/16"-12

Tee

1шт.

44

REF

INSTRUCTION

CONTROL VALVE - loader, parts list Figure 8-66

1шт.

45

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Incl. Ref. 46

1шт.

46

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

47

D127090

TUBE ASSY.

TUBE - to control valve inlet

1шт.
