Запчасти Case 480E (6-58) - TRANSAXLE, COUNTERSHAFT (06) - POWER TRAIN

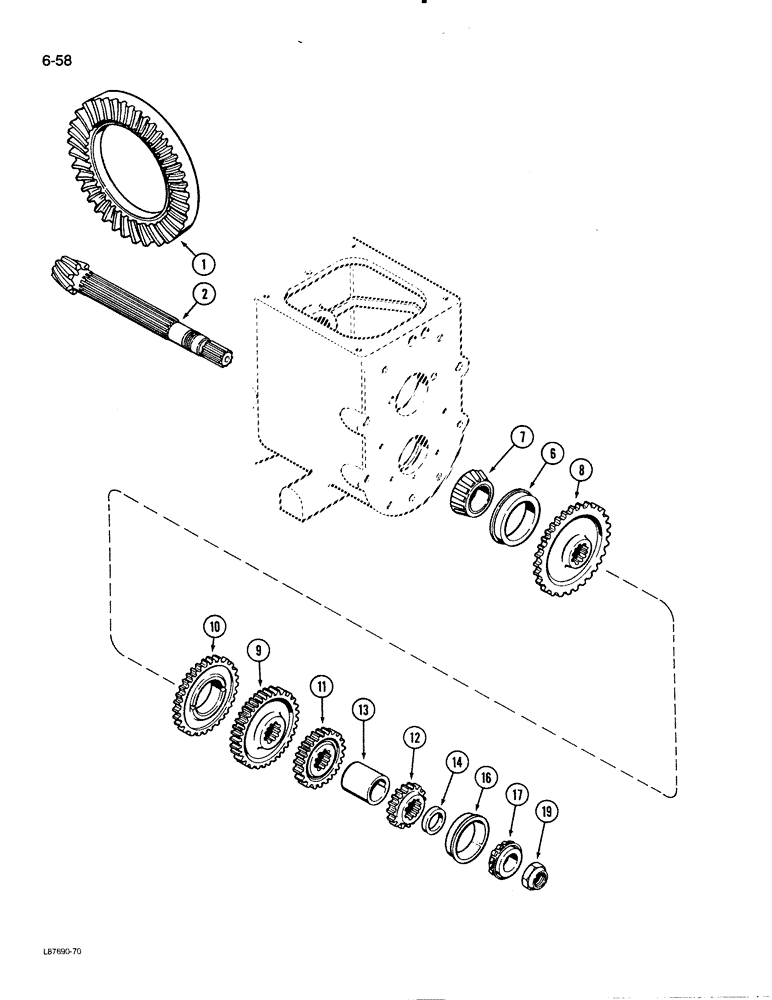

Схема запчастей Case 480E - (6-58) - TRANSAXLE, COUNTERSHAFT (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A168883

GEAR, BEVEL

BEVEL GEAR SHAFT AND GEAR SET - transaxle (Matched set), Includes: Ref. 1 - 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (Order set)

1шт.

2

NSS

NOT SOLD SEPARAT

COUNTERSHAFT - pinion (Order set)

1шт.

6

A153753

ROLLER BEARING,88.92mm OD x 23.02mm W

CUP - bearing, rear, with snap ring, 3-1/2 inch OD

1шт.

7

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE - bearing, rear, 1-5/8 inch ID

1шт.

8

A153751

GEAR

GEAR - first (47 external and 10 internal teeth)

1шт.

9

A51961

GEAR

GEAR - second (38 external and 10 internal teeth)

1шт.

10

A157304

GEAR

GEAR - oil slinger (38 external teeth)

1шт.

11

A51960

GEAR

GEAR - third (28 external and 10 internal teeth)

1шт.

12

A154649

GEAR

GEAR - fourth (29 external and 10 internal teeth)

1шт.

13

A51959

SPACER

SPACER - third and fourth gears, 2-5/16 inch OD

1шт.

14

A179800

SPACER

SPACER - thrust, 0.250 - 0.248 inch

1шт.

14

A179799

SPACER

SPACER - thrust, 0.245 - 0.243 inch

1шт.

14

A179798

SPACER

SPACER - thrust, 0.240 - 0.238 inch

1шт.

14

A179797

SPACER

SPACER - thrust, 0.235 - 0.233 inch

1шт.

14

A179796

SPACER

SPACER - thrust, 0.230 - 0.228 inch

1шт.

14

A179795

SPACER

SPACER - thrust, 0.225 - 0.223 inch

1шт.

14

A179794

SPACER

SPACER - thrust, 0.220 - 0.218 inch

1шт.

14

A179793

SPACER

SPACER - thrust, 0.215 - 0.213 inch

1шт.

14

A179792

SPACER

SPACER - thrust, 0.210 - 0.208 inch

1шт.

14

A179791

SPACER

SPACER - thrust, 0.205 - 0.203 inch

1шт.

14

A179790

SPACER

SPACER - thrust, 0.200 - 0.198 inch

1шт.

14

A179789

SPACER

SPACER - thrust, 0.195 - 0.193 inch

1шт.

14

A179788

SPACER

SPACER - thrust, 0.190 - 0.188 inch

1шт.

14

A179787

SPACER

SPACER - thrust, 0.185 - 0.183 inch

1шт.

14

A179786

SPACER

SPACER - thrust, 0.180 - 0.178 inch

1шт.

14

A179785

SPACER

SPACER - thrust, 0.175 - 0.173 inch

1шт.

14

A179784

SPACER

SPACER - thrust, 0.170 - 0.168 inch

1шт.

14

A179783

SPACER

SPACER - thrust, 0.165 - 0.163 inch

1шт.

16

A179719

ROLLER BEARING,76.1mm OD x 17.46mm W

CUP - bearing

1шт.

17

A153749

ROLLER BEARING,1.3125" ID x 0.875"

CONE - bearing, rear, 1-5/16 inch ID

1шт.

19

A156260

NUT

NUT - adjusting, countershaft

1шт.

Выбрано товаров: 32
