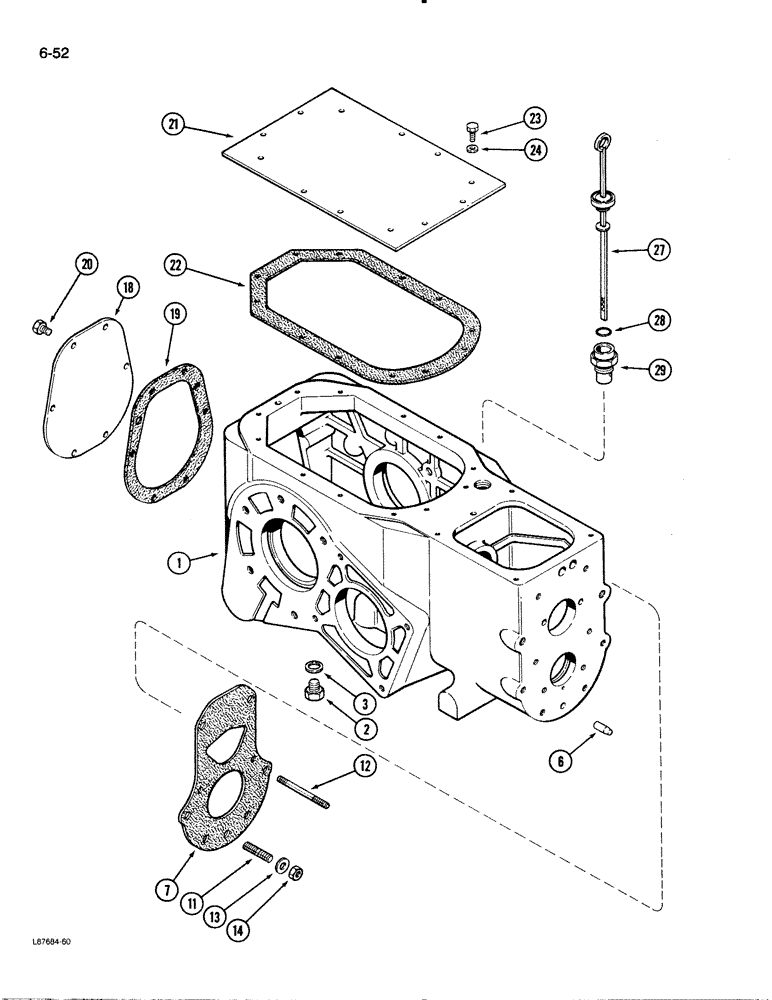

Запчасти Case 480E (6-52) - TRANSAXLE TRANSMISSION HOUSING, 4 WHEEL DRIVE (06) - POWER TRAIN

1

A182760

HOUSING

HOUSING - transmission

1шт.

2

A140222

PLUG

PLUG - drain, transmission housing

1шт.

3

A58608

GASKET

GASKET - drain plug

1шт.

6

A29540

PIN

PIN - dowel, locating

1шт.

7

A182720

GASKET

GASKET - front conver to transmission housing

1шт.

11

A168517

STUD

STUD - front mount, 5/8 NC x 2-27/32 inch

2шт.

11

NSS

NOT SOLD SEPARAT

STUD - front mount, 5/8 NC x 2-1/2 inch (Order A168517)

2шт.

12

A153248

STUD

STUD - cover, center, 4-13/16 inch

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8 inch NC

2шт.

18

A39105

COVER

COVER - transmission housing, rear ( replaced A153248 )

1шт.

19

G10447

GASKET

GASKET - rear cover to transmission housing

1шт.

J I Case installed rear housing cover may not have a gasket. If rear housing cover is removed, install a gasket before assembly.

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

21

A153744

COVER

COVER - housing, top rear

1шт.

22

1342409C1

GASKET,0.79mm Thk

GASKET - top cover to transmission housing (Replaces A153777)

1шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

BOLT - hex, 3/8 NC x 1 inch, Grade 8

11шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

WASHER - flat, hardened

11шт.

27

REF

INSTRUCTION

DIPSTICK ASSEMBLY - oil gauge (See Figure 6-47), Includes: Ref. 28

1шт.

28

REF

INSTRUCTION

O-RING - dipstick (See Figure 6-46)

1шт.

29

A154850

TUBE

TUBE - dipstick and oil filler

1шт.
