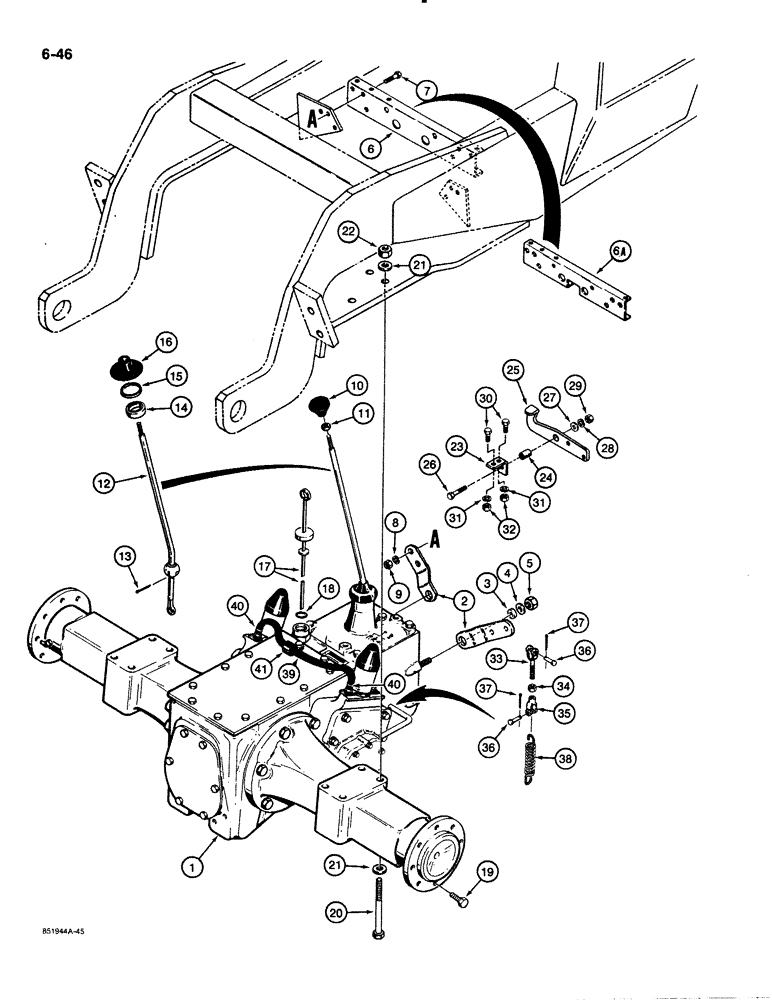

Запчасти Case 480E (6-46) - TRANSAXLE AND DIFFERENTIAL LOCK (06) - POWER TRAIN

1

A179041

AXLE

TRANSAXLE - two wheel drive, heavy duty, complete, parts list Figures 6-50, 6-56 through 6-64, 7-2 through 7-6

1шт.

1

A179909

AXLE

SPARE PART TRANSAXLE - four wheel drive, dry brake transaxle, parts list Figures 6-52 through 6-70, 7-2, 7-4 and 7-8

1шт.

1

AR179909

REMAN-AXLE

Remanufactured Axle; For N.A. only

1шт.

1

AC179909

CORE-AXLE

Return number - For N.A. only

1шт.

2

D129942

SUPPORT

SUPPORT - transaxle, front

2шт.

3

D122706

BUSHING

BUSHING - support

2шт.

4

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", hardened

2шт.

5

129-183

NUT,5/8"-11, G8

NUT, 5/8"-11, G8

2шт.

6

D129943

BRACKET

BRACKET - crossmember, transaxle support, no longer available, for service order D138169 bracket

1шт.

6a

D138169

BRACKET

BRACKET - crossmember, transaxle support

1шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

4шт.

10

D69105

KNOB

KNOB - shift lever

1шт.

11

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

1шт.

12

A150902

LEVER

SHIFT LEVER - transaxle, Includes: Ref. 13

1шт.

13

A156515

PIN

PIN - groove, lever ball

1шт.

14

A7923

SEAT

SEAT - lever, shift

1шт.

15

A26836

RING, SNAP

RING SNAP RING - retaining

1шт.

16

A26956

DUST CAP

BOOT - dust, shift lever

1шт.

17

A154967

DIPSTICK

DIPSTICK - transaxle, Includes: Ref. 18

1шт.

18

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

O-RING - dipstick

1шт.

19

D140705

BOLT

BOLT - wheel retaining, grade 8, replaces A38208 grade 5 bolt

16шт.

20

113-732

BOLT,Hex, 3/4" - 10 x 8", Gr 5

BOLT - hex, 3/4 NC x 8 inch

8шт.

21

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

WASHER - flat, 3/4", hardened

16шт.

22

129-108

NUT,3/4"-10, G5

NUT, 3/4"-10, G5

8шт.

23

D129482

STRIP

BRACKET - mounting, differential lock pedal, bolts to floor plate

1шт.

24

D122241

SPACER

SPACER - pedal

1шт.

25

D124890

PEDAL

PEDAL - differential lock

1шт.

26

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, Hex, 1/2"-13 x 2", G5

1шт.

27

D64050

WASHER

WASHER - flat, 1/2", hardened

1шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

29

425-108

NUT,1/2" - 13, Gr 5

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

33

D58332

ROD

ROD - differential lock

1шт.

34

129-123

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

1шт.

35

213-41

ADJUSTABLE CLEVIS,3/8"-24

(x 2-1/2")

1шт.

36

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

37

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

38

R29843

SPRING

SPRING - return

1шт.

39

D134065

HOSE

HOSE - 1/4 ID x 21-5/8 inch, vent, cut to required length from bulk hose D134170, see below

1шт.

40

F64936

CLAMP

CLAMP - vent hose

2шт.

41

49838

CLAMP

CLAMP - P-type, used existing transaxle cover plate mounting hardware

1шт.

D134170

HOSE,6.35 mm ID x 1580.00 mm, SAE 30R6 or SAE 30R7 PER SAE J30

HOSE, 6.35 mm ID x 1580.00 mm, SAE 30R6 or SAE 30R7 PER SAE J30

1шт.
