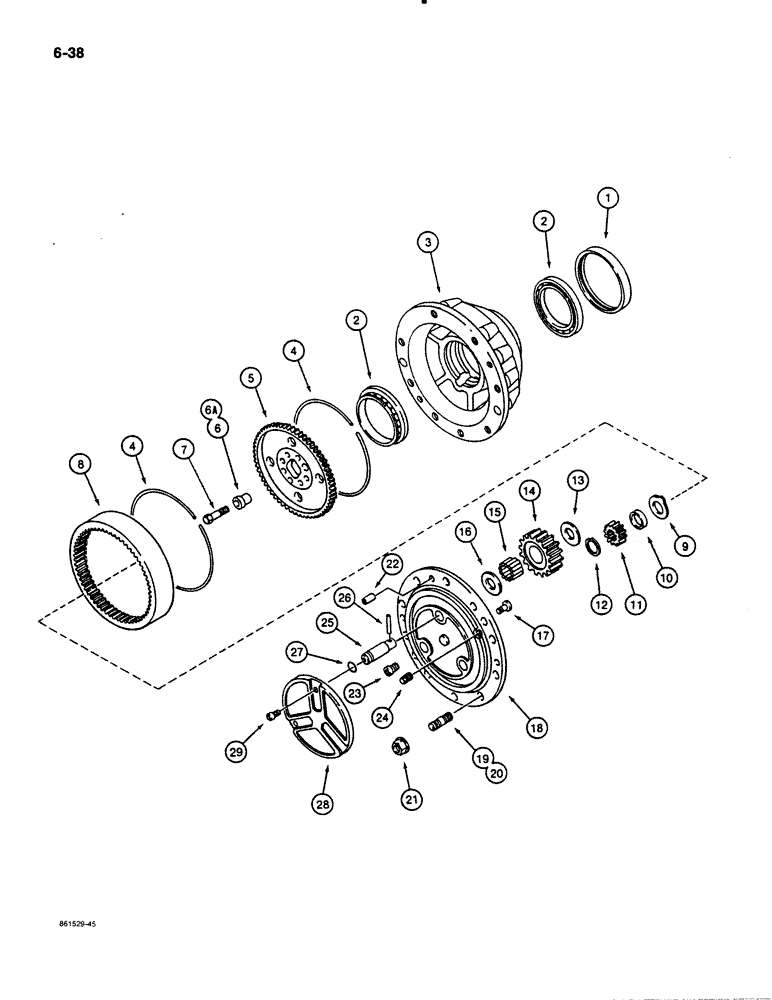

Запчасти Case 480E (6-38) - FRONT DRIVE AXLE, PLANETARY (06) - POWER TRAIN

D127440

AXLE

SPARE PART AXLE ASSEMBLY - front drive, Carraro 710 No. 118562, parts list Figures 6-32 through 6-42, Includes: Ref. 1 - 29

1шт.

1

K395102

OIL SEAL

SEAL - oil, hub

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BALL BEARING - hub

4шт.

3

K395123

HUB

HUB - wheel attaching

2шт.

4

K395095

CIRCLIP

RING - lock

4шт.

5

K395126

WHEEL

HUB - ring gear

2шт.

6

K395105

RING

BUSHING - 20 mm OD, centering

14шт.

6a

K395104

RING

BUSHING - 24 mm OD, centering

2шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

Special

16шт.

8

K395113

GEAR

RING GEAR - planetary

2шт.

9

K395115

WASHER

WASHER - tab lock, special

2шт.

10

K395121

SPACER

SPACER - pinion gear

2шт.

11

K395114

GEAR

PINION GEAR - axle shaft

2шт.

12

K261897

RING, SNAP

RING SNAP SNAP RING - pinion gear retaining

2шт.

13

N13512

WASHER,23mm ID x 55mm OD x 1.5mm Thk

THRUST WASHER - pinion gear, inner

6шт.

14

N13513

GEAR,29 T

Pinion, Planetary

6шт.

15

N13514

NEEDLE BEARING

NEEDLE BEARING - planetary gear

180шт.

16

K395091

THRUST WASHER

Pinion gear, Outer

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

PIN - lock, planetary cover

2шт.

18

309421A1

COVER ASSY

COVER - planetary ( replaced N13516 )

2шт.

19

K260218

STUD

STUD - special, without collar, not shown

12шт.

20

N13515

STUD

STUD - special, with collar, for recessed bolt holes

4шт.

21

K395089

WHEEL NUT

NUT - hex, special

16шт.

22

K395094

DOWEL,M18 x 36

Pin, Planetary cover

4шт.

23

K395029

SCREW

SCREW - special, planetary cover

4шт.

24

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

25

N13517

PIN,34.4mm OD x 80mm L

SHAFT - pinion gear

6шт.

26

K965305

SPLIT PIN/SAFETY PIN

PIN - pinion gear shaft

6шт.

27

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

Pinion gear shaft

6шт.

28

K395135

COVER

PLATE - planetary cover

2шт.

29

K395082

SCREW,M8 x 20mm

SCREW - special, planetary cover plate

6шт.

M20704

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, planetary cover to hub, not shown

1шт.
