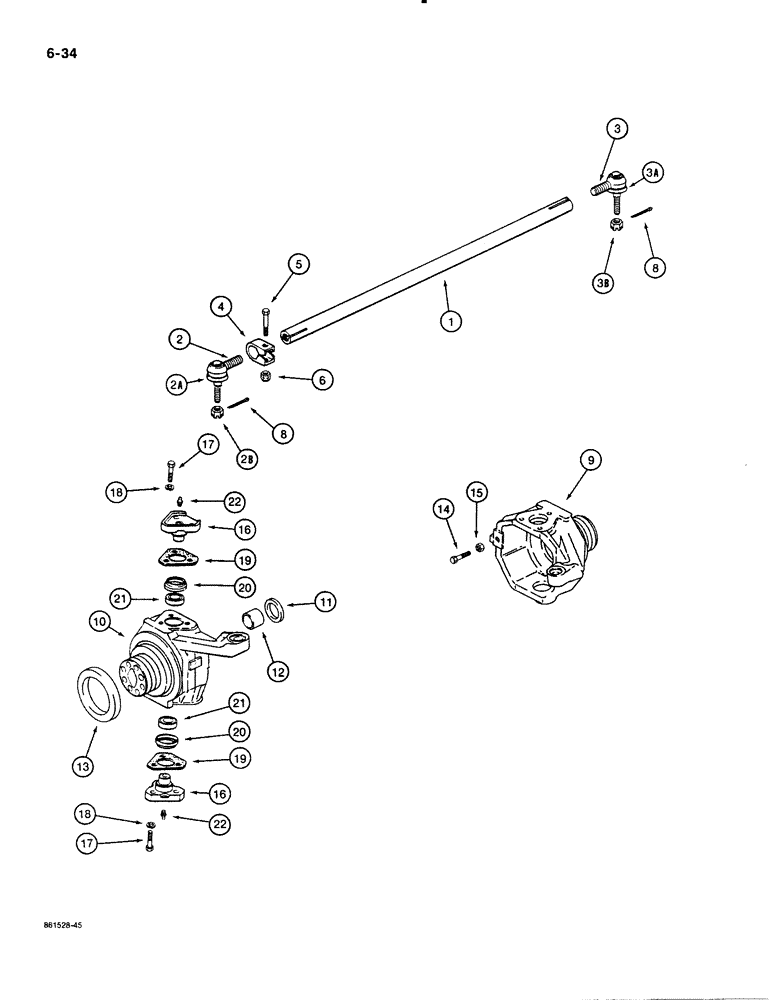

Запчасти Case 480E (6-34) - FRONT DRIVE AXLE, TIE ROD AND SWIVEL HOUSING (06) - POWER TRAIN

D127440

AXLE

SPARE PART AXLE ASSEMBLY - front drive, Carraro 710 No. 118562, parts list Figures 6-32 through 6-42, Includes: Ref. 1 - 22

1шт.

1

N13615

ROD

TIE ROD - steering

1шт.

K260254

BALL JOINT

BALL JOINT - right-hand, Includes: Ref. 2 - 2B

1шт.

2

NSS

NOT SOLD SEPARAT

BALL JOINT - left-hand

1шт.

2a

NSS

NOT SOLD SEPARAT

BOOT - ball joint

1шт.

2b

K956938

SLOTTED NUT

NUT - hex, slotted, ball joint

1шт.

K260250

BALL JOINT

BALL JOINT - left-hand, Includes: Ref. 3 - 3B

1шт.

3

NSS

NOT SOLD SEPARAT

BALL JOINT - right-hand

1шт.

3a

NSS

NOT SOLD SEPARAT

BOOT - ball joint

1шт.

3b

K260251

NUT

NUT - hex, slotted, ball joint

1шт.

4

N8904

CLAMP

CLAMP - tie rod

2шт.

5

N8905

BOLT

BOLT - hex head, special

2шт.

6

K260157

NUT

NUT - hex, self-locking, special

2шт.

7

RESERVED

1шт.

8

K260255

PIN

COTTER PIN - special

2шт.

9

N13614

HOUSING

HOUSING - swivel, right-hand

1шт.

10

N13613

HOUSING

HOUSING - swivel, left-hand

1шт.

11

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

SEAL - oil, swivel housing

2шт.

12

K395033

BUSHING

BUSHING - swivel housing

2шт.

13

K395138

WEAR RING

RING - sealing, swivel housing

2шт.

14

K395032

BOLT

BOLT - steering stop, special

4шт.

15

K965369

JAM NUT

NUT - hex, 12 mm, special

4шт.

16

N13504

PIVOT

CAP - swivel housing

4шт.

17

K965247

BOLT,M14 x 35mm

BOLT - hex head, 14 mm - 2 x 35 mm, special

12шт.

18

K965248

WASHER

WASHER - lock, 14 mm, special

12шт.

19

K395036

SHIM,52mm ID x 116mm OD x 0.1mm Thk

Swivel cap

1шт.

19

K395037

SHIM,52mm ID x 98mm OD x 0.19mm Thk

Swivel cap

1шт.

19

K395038

SHIM,52mm ID x 98mm OD x 0.35mm Thk

Swivel cap

1шт.

20

K395039

SEAL

SEAL - bearing

4шт.

21

K395040

BEARING CAP

ROLLER BEARING - swivel cap

4шт.

22

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

GREASE FITTING - straight, swivel cap, upper

4шт.
