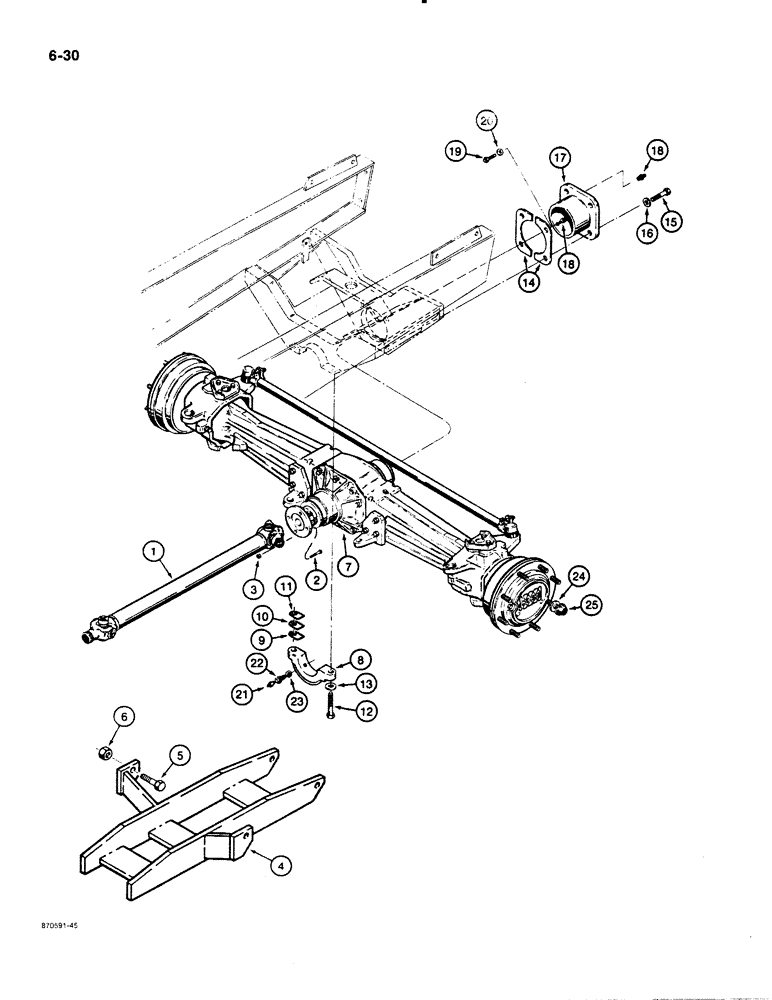

Запчасти Case 480E (6-30) - FRONT DRIVE AXLE MOUNTING AND DRIVE SHAFT (06) - POWER TRAIN

1

D137490

DRIVE SHAFT

DRIVE SHAFT - front wheel drive, parts list Figure 6-28

1шт.

2

28-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

BOLT - hex head, 7/16" - 20 NF x 1-1/2", grade 8

4шт.

3

131-1247

LOCK NUT,7/16"-20, GC

NUT - hex, self-locking, 7/16" - 20 NF, plated

4шт.

4

D125602

GUARD

GUARD - drive shaft

1шт.

5

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

BOLT, Hex, 1"-8 x 2 1/2", G5, Full Thd

4шт.

6

131-20

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1" - 8 NC

4шт.

7

D127440

AXLE

SPARE PART AXLE ASSEMBLY - Carraro 710 front drive, if used, parts list Figures 6-32 through 6-42

1шт.

D126549

KIT

KIT - bearing cap, replaces production axle caps, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

CAP - axle mounting, rear

1шт.

9

D126551

SHIM,0.3mm Thk

Cap

1шт.

10

D126552

SHIM,0.4mm Thk

Cap

1шт.

11

D126553

SHIM,0.5mm Thk

Cap

1шт.

12

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

BOLT - hex head, 3/4" - 10 NC x 3-1/2", grade 8

2шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

WASHER - 3/4", hardened

2шт.

14

D122148

SHIM,0.5mm Thk

Front

2шт.

15

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

WASHER - 3/4", hardened

4шт.

D101820

FLANGE

KIT - four wheel drive flange, Includes: Ref. 17 - 20

1шт.

17

D126791

FLANGE

CAP - front, includes cover plate and instructions

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

19

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

BOLT - hex head, 1/2" - 13 NC x 3/4"

1шт.

20

196-16

WASHER,.521" x 1" x .179", HDN

WASHER - flat, 1/2", plated, hardened

1шт.

D102386

ADAPTER

KIT - four wheel drive lubricating adapter, rear axle mounting cap, includes instruction sheet, Includes: Ref. 21 - 23

1шт.

21

219-17

LUBE NIPPLE,3/16" NPTF

1шт.

22

D136218

SCREW

ADAPTER - lubricating, grease fitting, 3/16" socket head depth

1шт.

23

196-16

WASHER,.521" x 1" x .179", HDN

WASHER - flat, 1/2", plated, hardened

1шт.

24

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

WASHER - flat, 3/4", hardened

16шт.

25

K395089

WHEEL NUT

NUT - wheel retaining

16шт.
