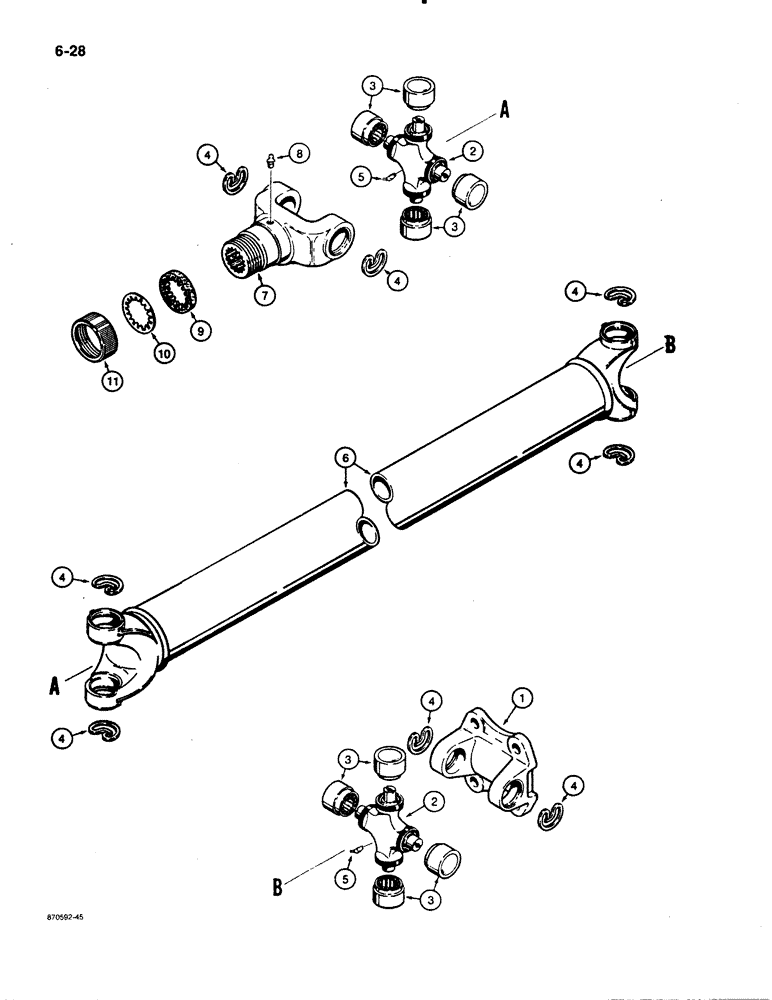

Запчасти Case 480E (6-28) - DRIVE SHAFT FOR FRONT DRIVE AXLE (06) - POWER TRAIN

D137490

DRIVE SHAFT

DRIVE SHAFT - front drive axle, Includes: Ref. 1 - 11

1шт.

1

S80726

YOKE

UNIVERSAL JOINT YOKE BRACKET - flange

1шт.

R2713

BEARING ASSY

KIT - universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

1шт.

6

NSS

NOT SOLD SEPARAT

DRIVE SHAFT - front drive axle

1шт.

7

N9926

END

YOKE - drive shaft

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 inch NF taper

1шт.

N7513

SEAL

KIT - dust seal and cap, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - cork

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - seal, steel

1шт.

11

NSS

NOT SOLD SEPARAT

CAP - dust seal retaining

1шт.
