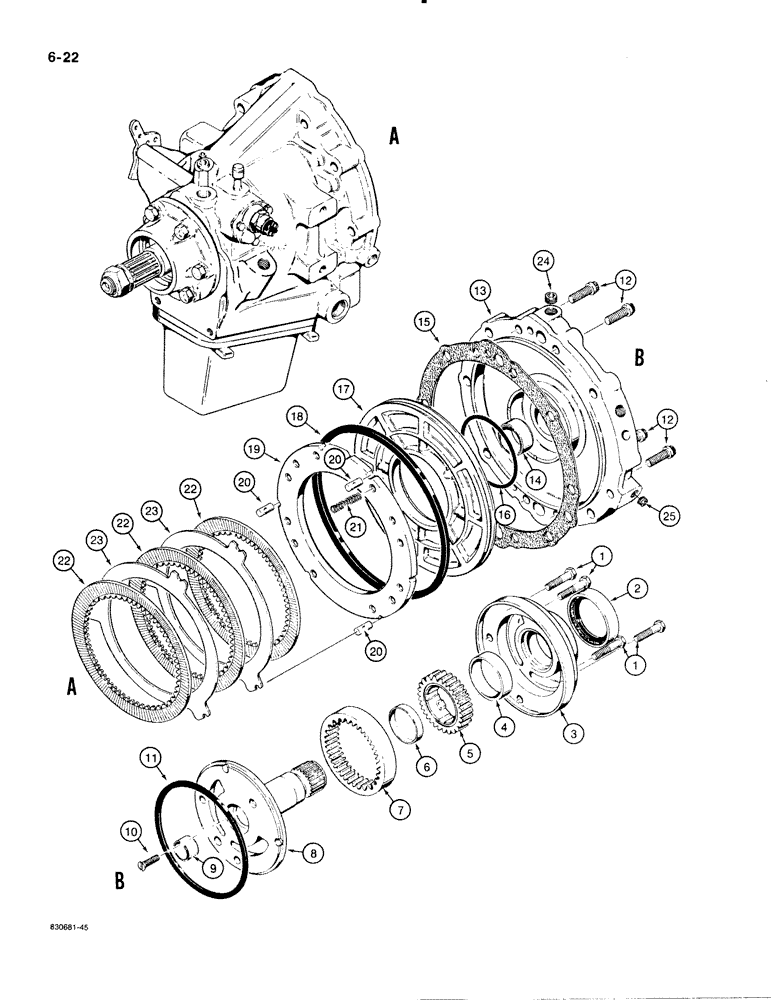

Запчасти Case 480E (6-22) - POWER SHUTTLE, CHARGING PUMP AND REVERSE CLUTCH (06) - POWER TRAIN

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - see Figure 6-12 for service information, parts list Figures 6-12 through 6-22, Includes: Ref. 1 - 17 on Fig. 6-12, 1 - 29, 30 - 42, 43 - 56 on Fig. 6-14, 1 - 26 on Fig. 6-20, 1 - 25 on Fig. 6-22

1шт.

1

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 3/4", G5

4шт.

R29995

PUMP

CHARGING PUMP ASSEMBLY - power shuttle, no longer used, order L30488 pump assembly, Includes: Ref. 2 - 10

1шт.

L30488

PUMP

CHARGING PUMP ASSEMBLY - power shuttle, service replacement, Includes: Ref. 2 - 10

1шт.

137093A1R

REMAN-HYD PUMP

480E, 480E LL, REMAN for Part No. L30488, N.A. Only

1шт.

137093A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

2

N8071

OIL SEAL,49.23mm ID x 68.53mm OD x 8.23mm Thk

SEAL - oil

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - charging pump, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - charging pump

1шт.

5

NSS

NOT SOLD SEPARAT

DRIVE GEAR - charging pump, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - charging pump gear drive

1шт.

7

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - charging pump

1шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT - torque converter, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - torque converter support

1шт.

10

171-100

SCREW,Sl Flat Hd, #10 - 24 x 3/4"

MACHINE SCREW - flat head slotted, No. 10 - 24 NC x 3/4"

1шт.

11

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

GASKET - charging pump

1шт.

12

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 1-1/4", grade 8

4шт.

D50022

ADAPTER

COVER ASSEMBLY - power shuttle, Includes: Ref. 13 - 14

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - power shuttle

1шт.

14

D50074

BUSHING,34.92mm ID x 38.13mm OD x 17.46mm L

BUSHING - cover

1шт.

15

D50033

GASKET,0.58mm Thk

GASKET - cover housing

1шт.

16

D50034

O-RING,0.139" Thk x 3.484" ID

O-RING - cover

1шт.

17

D50035

PISTON

PISTON - reverse clutch

1шт.

18

D50036

SEALING RING,194.51mm ID x 232.84mm OD x 3.17mm Thk

RING - piston seal, square section

1шт.

19

D50037

PLATE

PLATE - pressure, reverse clutch, (in D103219 kit below)

1шт.

20

D50038

PIN

DOWEL PIN - pressure plate

3шт.

21

D50039

SPRING

SPRING - pressure plate

11шт.

22

D50040

PLATE

FRICTION DISC - internal tooth, (in D103219 kit below)

3шт.

23

D50041

CLUTCH PLATE,155.57mm ID x 215.09mm OD x 1.8mm Thk

DISC - steel, external flange, (in D103219 kit below)

2шт.

24

221-841

PLUG

PLUG - hex socket, 1/4 inch PT

1шт.

25

221-849

PLUG,Hex Soc, 1/8"-27

PLUG - hex socket, 1/8 inch PT

2шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.
