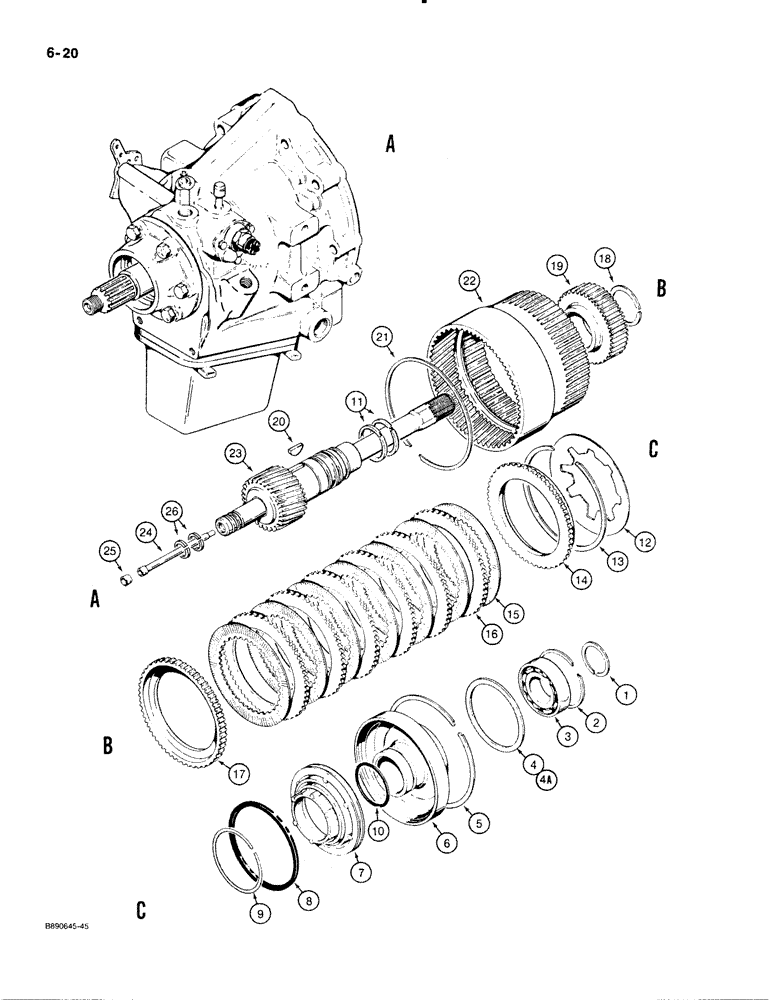

Запчасти Case 480E (6-20) - POWER SHUTTLE, INPUT SHAFT AND FORWARD CLUTCH (06) - POWER TRAIN

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - see Figure 6-12 for service information, parts list Figures 6-12 through 6-22, Includes: Ref. 1 - 17 on Fig. 6-12, 1 - 29, 30 - 42, 43 - 56 on Fig. 6-14, 1 - 26 on Fig. 6-20, 1 - 25 on Fig. 6-22

1шт.

1

D50042

RING

SNAP RING - bearing retaining, small

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

2

D50043

RING

SNAP RING - bearing retaining, large

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

3

D50044

BALL BEARING

BALL BEARING - clutch cylinder, (in D103218 kit below)

1шт.

4

D50045

WASHER,79.76mm ID x 93.73mm OD x 1.73mm Thk

THRUST WASHER - clutch, .056 - .068 inch thick, if used

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

4a

D143871

WASHER

THRUST WASHER - clutch, .087 - .101 inch thick, if used

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

5

D50046

RING

RING - ring gear retaining

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

6

D50075

CYLINDER

CYLINDER - forward clutch

1шт.

7

D70670

PISTON

PISTON - forward clutch

1шт.

8

D50077

RING

RING - seal, piston

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

9

D50078

RING,3.17mm Thk x 77.22mm ID, 40 Duro

RING - retaining, piston

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

10

D50079

O-RING,0.139" Thk x 2" ID

O-RING - cylinder

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

11

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

RING - sealing, input shaft

2шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

12

D50047

BELLEVILLE WASHER,73.025mm ID x 134.95mm OD x 1.854mm Thk

SPRING - clutch plates

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

13

D50048

CIRCLIP

RETAINING RING - pressure plate

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

14

D50081

PLATE,139.12mm OD

PLATE - pressure, front, (in D103219 kit below)

1шт.

15

D70672

PLATE

FRICTION DISC - internal tooth, (in D103219 kit below)

7шт.

16

D50083

PLATE

DISC - steel, external tooth, (in D103219 kit below)

6шт.

17

D50084

PLATE,139.45mm OD

PLATE - pressure, rear, (in D103219 kit below)

1шт.

18

D50049

RING

RETAINING RING - clutch hub

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

19

D75853

HUB

HUB - clutch ( replaced D75823 )

1шт.

20

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Woodruff Key, #15, 1/4" x 1", HT

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

21

CASD50051

RING

RING - .050" (1.270 mm) to .054" (1.372 mm) thick

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

21

D78397

RING

RING - .062" (1.575 mm) to .066" (1.676 mm) thick

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

21

D50052

RING

RING - .074" (1.880 mm) to .078" (1.981 mm) thick

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

21

D78398

RING

RING - .084" (2.134 mm) to .088" (2.235 mm) thick

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

21

D50053

RING

RING - .096" (2.438 mm) to .100" (2.540 mm) thick

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

22

D50054

GEAR

RING GEAR - power shuttle

1шт.

D70666

GEAR

INPUT SHAFT ASSEMBLY - power shuttle, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

INPUT SHAFT - drive

1шт.

24

N7043

TUBE

TUBE - forward clutch supply

1шт.

25

D50086

PLUG

PLUG - shaft end

1шт.

26

D70668

RING,Split, 18.34mm ID x 20.88mm OD x 2.34mm Thk

RING - sealing

2шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket

1шт.
