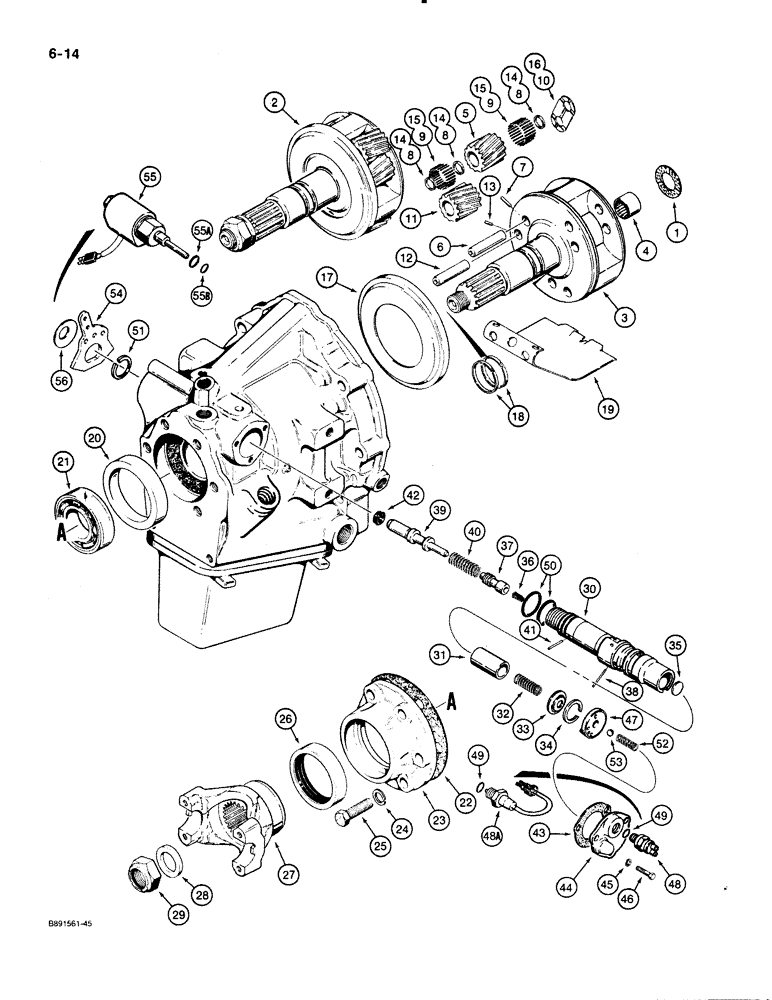

Запчасти Case 480E (6-14) - POWER SHUTTLE, PINION CAGE, OUTPUT SHAFT, AND CONTROL VALVE (06) - POWER TRAIN

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - see Figure 6-12 for service information, parts list Figures 6-12 through 6-22, Includes: Ref. 1 - 17 on Fig. 6-12, 1 - 29, 30 - 42, 43 - 56 on Fig. 6-14, 1 - 26 on Fig. 6-20, 1 - 25 on Fig. 6-22

1шт.

1

D50055

WASHER, THRUST,22.38mm ID x 44.45mm OD x 1.6mm Thk

THRUST WASHER - clutch hub

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

2

D70665

GEAR

PINION CAGE AND OUTPUT SHAFT - power shuttle, Includes: Ref. 3 - 17

1шт.

3

NSS

NOT SOLD SEPARAT

CAGE AND SHAFT - basic

1шт.

4

H747964

NEEDLE BEARING,Needle, 20.64mm ID x 26.99mm OD x 22.23mm W

NEEDLE BEARING - output shaft, (in D103218 kit below)

1шт.

D50030

GEAR

KIT - inner pinion gear and shaft, Includes: Ref. 5 - 10

3шт.

5

NSS

NOT SOLD SEPARAT

PINION GEAR - inner

1шт.

6

NSS

NOT SOLD SEPARAT

PINION SHAFT - inner

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - pinion bearing

3шт.

9

NSS

NOT SOLD SEPARAT

ROLLER - pinion bearing

48шт.

10

NSS

NOT SOLD SEPARAT

PLATE - thrust

2шт.

D50031

KIT

KIT - outer pinion gear and shaft, Includes: Ref. 11 - 16

3шт.

11

NSS

NOT SOLD SEPARAT

PINION GEAR - outer

1шт.

12

NSS

NOT SOLD SEPARAT

PINION SHAFT - outer

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - pinion bearing

3шт.

15

NSS

NOT SOLD SEPARAT

ROLLER - pinion bearing

48шт.

16

NSS

NOT SOLD SEPARAT

PLATE - thrust

2шт.

17

D50087

RING

RING - collector

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

18

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

RING - sealing

2шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

19

D50056

GUARD

BAFFLE - plate

1шт.

20

D50057

SLEEVE

SPACER - ball bearing

1шт.

21

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

BALL BEARING - output shaft, (in D103218 kit below)

1шт.

22

D50058

GASKET

GASKET - ball bearing retainer

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

23

D50059

BEARING HOUSING

RETAINER - rear ball bearing

1шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

25

113-363

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 5, Full Thd

BOLT - hex, 7/16 NC x 1-1/8 inch

6шт.

26

D50060

SEAL,53.98mm ID x 77.93mm OD x 13.11mm Thk

SEAL - oil, rear

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

27

D124144

FLANGE

YOKE - output shaft mounting

1шт.

28

D65247

WASHER

WASHER - output shaft

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

345-84

ADHESIVE

SEALANT - 3 oz. (89 ml) of sealer in a tube, not shown, used between D65247 washer and end of shaft

1шт.

29

131-91

LOCK NUT,3/4"-16, G8

NUT - hex, self-locking, 3/4" - 16 NF, special

1шт.

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - complete, Includes: Ref. 1 - 17 on Fig. 6-12, 1 - 29, 30 - 42, 43 - 56 on Fig. 6-14, 1 - 26 on Fig. 6-20, 1 - 25 on Fig. 6-22

1шт.

D77473

VALVE

VALVE ASSEMBLY - D125633 power shuttle, single groove for one D142214 O-ring (Ref. 50), no longer available, order N13639 valve and (2) D142214 O-rings, includes items 30 through 42

1шт.

N13639

VALVE

VALVE ASSEMBLY - D136020 or D135731 power shuttle, double groove for two D142214 O-rings (item 50), includes items 30 through 42

1шт.

N14765

VALVE BODY

VALVE ASSEMBLY - D140175, D140405 or D140492 power shuttle, double groove for two D142214 O-rings (item 50), includes items 30 through 38

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

31

D50089

VALVE

VALVE - pressure regulator

1шт.

32

D50090

SPRING

SPRING - valve

1шт.

33

D50091

RETAINER,9.53mm ID x 28.42mm OD x 1.34mm Thk

RETAINER - spring

1шт.

34

D50092

RING

RING - spring retaining

1шт.

35

41-12

PLUG,Exp, 3/4"

PLUG - expansion, 3/4"

1шт.

36

D77476

SPRING

SPRING - clutch cutout

1шт.

37

D77474

SPOOL

SPOOL - valve

1шт.

38

135-198

GROOVED PIN,5/64" x 1", Type B

PIN, GROOVED, , Half length taper 5/64" x 1", Type B

1шт.

39

D75488

PLUNGER

PLUNGER - D77473 and N13639 valves only

1шт.

40

D77475

SPRING

SPRING - D77473 and N13639 valves only

1шт.

41

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

42

D75489

SEAL,11.11mm ID x 17.46mm OD x 3.17mm Thk

SEAL - oil, D77473 and N13639 valves only, (in D103220 kit below), also see D75492 installation tool below

1шт.

D75492

PLASTIC RING

TOOL - for installation of D75489 seal (Ref. 42), not shown

1шт.

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - complete, Includes: Ref. 1 - 17 on Fig. 6-12, 1 - 29, 30 - 42, 43 - 56 on Fig. 6-14, 1 - 26 on Fig. 6-20, 1 - 25 on Fig. 6-22

1шт.

43

D50066

GASKET,0.41mm Thk

GASKET - valve cover

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

44

D86488

COVER

COVER - valve

1шт.

45

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

46

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

BOLT - hex, 1/4 NC x 7/8 inch

3шт.

47

D86489

CAM

CAM - neutral start switch

1шт.

48

S113435

SWITCH

SWITCH - neutral start, with snap-on connector, used on D125633, D135731, D136020, D140175, or D140405 power shuttle

1шт.

48a

D141061

SWITCH

SWITCH - neutral start, with plastic wire connector, used on D140492 power shuttle assembly, Includes: Ref. 49

1шт.

50

D142214

O-RING,1.051" ID x 1.191" OD

O-RING - valve

2шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

51

A75171

SNAP RING,#112, 1.060", Ext

RING - retaining, if used

1шт.

52

S47892

SPRING

SPRING - poppet

1шт.

53

211-9

BALL,5/16" Dia

BALL - 5/16", grade 200, chrome alloy steel

1шт.

54

D77621

LEVER

LEVER - shift

1шт.

55

N14766

SOLENOID VALVE

SOLENOID - D140175, D140405 or D140492 power shuttle, Includes: Ref. 55A - 55B

1шт.

55a

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

O-RING - 7/8 x 1-1/16 x 3/32 inch, large

1шт.

55b

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

O-RING - 1/2 x 11/16 x 3/32 inch, small

1шт.

56

D147178

SPRING

WASHER - bellville, special, if used

1шт.

D103220

SEAL PACKAGE

KIT - seal and gasket, Includes Refs. 4, 9, 10, 18, and P/N D73701 on Fig. 6-12, 1, 17, 18, 22, 26, 28, 43, 49, and 50 on Fig. 6-14, 1, 2, 4, 5, 8 - 13, 18, 20, 21, and 26 on Fig. 6-20, 2, 11, 14 - 16, 18, 20, and 21 on Fig. 6-22

1шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk, S113435 or D141061 switch

1шт.

Part of Seal and Gasket kit. P/N D103220

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket

1шт.
