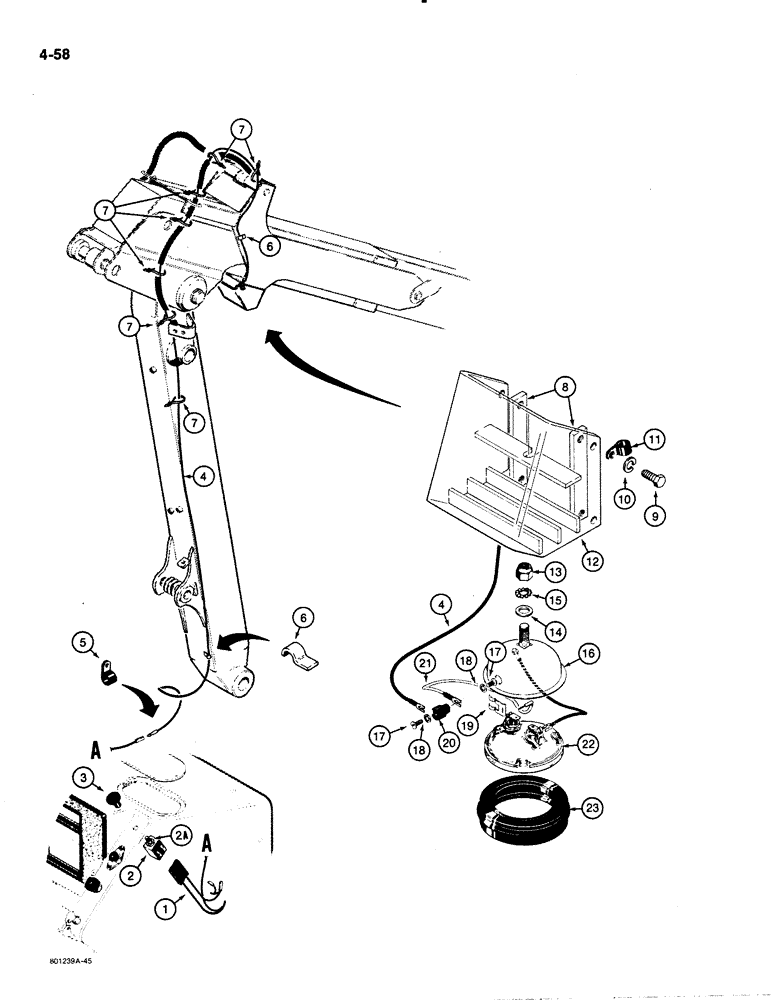

Запчасти Case 480E (4-58) - DIPPER LAMP, USED WITH EXTENDABLE DIPPER, 480E MODELS ONLY (04) - ELECTRICAL SYSTEMS

1

D75761

HARNESS

WIRE - to dipper lamp switch

1шт.

2

D74330

SWITCH

SWITCH - lamp, Includes: Ref. 2A

1шт.

2a

N7557

NUT

NUT - special, 3/8" - 24 NF

1шт.

3

D95783

KNOB

KNOB - dipper lamp switch

1шт.

4

D53268

ELECTRICAL WIRE

WIRE WIRE - dipper lamp

1шт.

5

49853

TOOL

CLAMP - harness

3шт.

6

D48071

CLAMP

CLAMP - C-type, wire

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

7шт.

8

D52595

BAR

BAR - mounting, lamp housing, welded to dipper extension

2шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

49859

CLAMP

- harness

1шт.

12

D52591

HOUSING

HOUSING - dipper lamp

1шт.

13

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

14

195-533

WASHER,1/2", SAE

(7/32 x 1-1/16 x 5/64 inch)

1шт.

15

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

D37811

LAMP

LAMP ASSEMBLY - dipper arm, Includes: Ref. 16 - 23

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

17

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

2шт.

18

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

19

10927

SPRING

SPARE PART SPRING - lamp

1шт.

20

B50293

TERMINAL CONNECTOR

INSULATOR - lamp

1шт.

21

A25262

ELECTRICAL WIRE

WIRE WIRE - lamp

1шт.

22

A42294

SEALED BEAM UNIT

LAMP - No. 4406

1шт.

23

D31441

RETAINER

RETAINER - lamp

1шт.
