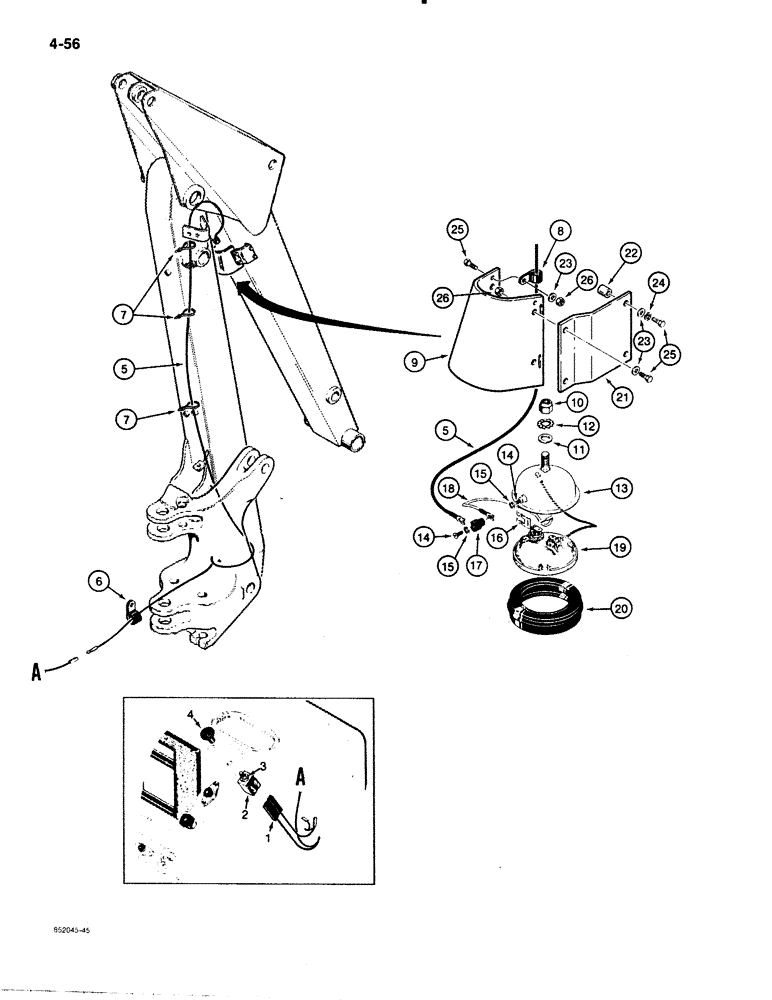

Запчасти Case 480E (4-56) - DIPPER LAMP, USED WITH NON-EXTENDABLE DIPPER, 480E MODELS ONLY (04) - ELECTRICAL SYSTEMS

1

D75761

HARNESS

WIRE ASSEMBLY - to dipper lamp switch

1шт.

2

D74330

SWITCH

SWITCH - lamp, Includes: Ref. 3

1шт.

3

N7557

NUT

NUT - special, 3/4" - 24 NF

1шт.

4

D95783

KNOB

KNOB - dipper lamp switch

1шт.

5

D50717

HARNESS

WIRE - dipper lamp

1шт.

6

49853

TOOL

CLAMP - harness

3шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

6шт.

8

80049853

YOKE

CLAMP - harness

1шт.

9

D41427

SHIELD

SHIELD - lamp

1шт.

10

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

11

195-533

WASHER,1/2", SAE

(7/32 x 1-1/16 x 5/64 inch)

1шт.

12

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

D37811

LAMP

LAMP ASSEMBLY - dipper arm, Includes: Ref. 13 - 20

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

14

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

2шт.

15

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

16

10927

SPRING

SPARE PART SPRING - lamp

1шт.

17

B50293

TERMINAL CONNECTOR

INSULATOR - lamp

1шт.

18

A25262

ELECTRICAL WIRE

WIRE WIRE - lamp

1шт.

19

A42294

SEALED BEAM UNIT

LAMP - No. 4406

1шт.

20

D31441

RETAINER

RETAINER - lamp

1шт.

21

D56849

BRACKET

BRACKET - shield mounting

2шт.

22

D33265

NUT

BLOCK - tapped

4шт.

23

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

9шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

9шт.

26

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

5шт.
