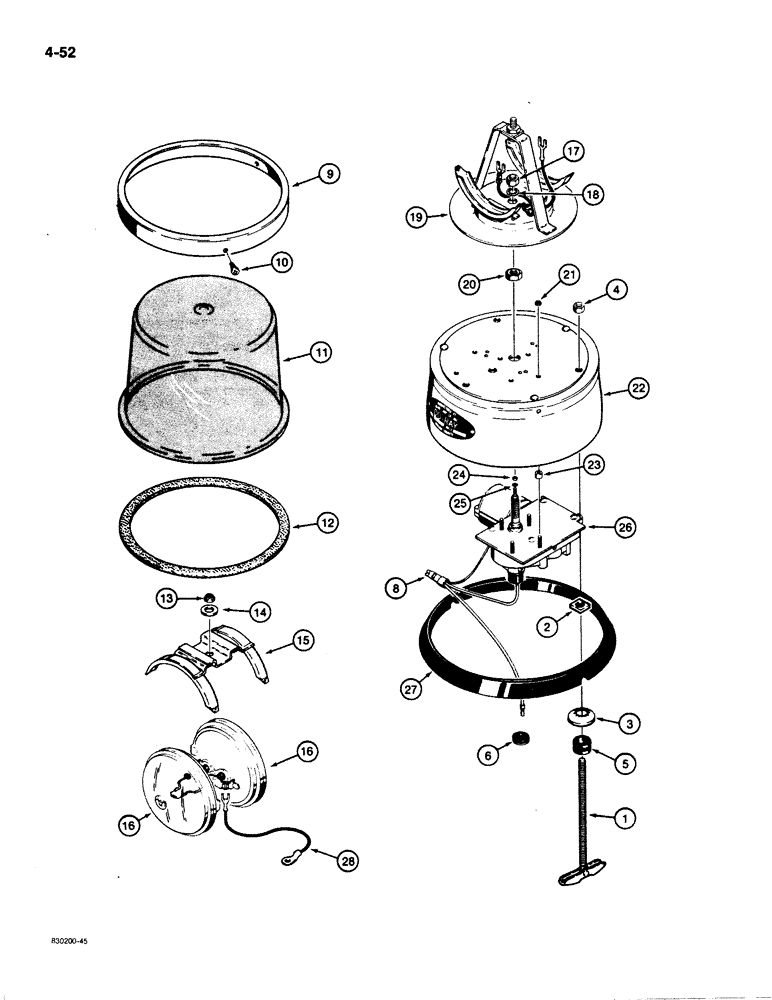

Запчасти Case 480E (4-52) - ROTATING BEACON (04) - ELECTRICAL SYSTEMS

F93158

LAMP

BEACON ASSEMBLY - rotating, 12 volt, amber lens, DoRay No. 4002, Includes: Ref. 1 - 28

1шт.

L35092

KIT

KIT - beacon mounting, includes instructions, Includes: Ref. 1 - 8

1шт.

1

L35148

BOLT

BOLT - toggle, No. 10 - 24 NC

3шт.

2

129-47

NUT

NUT - square, No. 10 - 24 NC

3шт.

3

L35146

LOCK WASHER

WASHER - lock, No. 10

3шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.

5

F13115

GROMMET

GROMMET - rubber, beacon mounting

3шт.

6

A43211

GROMMET

GROMMET - rubber, beacon wire

1шт.

7

L35145

HARNESS

WIRE - 8 ft (2.4 m) long, beacon to electrical connection, if used, not shown

1шт.

8

T29401

NUT

NUT - twist-on, wire

1шт.

L16099

SWITCH

SWITCH ASSEMBLY - beacon, shown on Figure 4-50

1шт.

223-20

FUSE,20 Amp, Type SFE

FUSE - beacon switch, SFE 20 amperes

1шт.

9

L32219

SPARE PART RING - clamp, lens

1шт.

10

168-70

DRIVE SCREW,Type U, Rnd Hd, #8 x 3/8"

SCREW - drive, No. 8 x 3/8", plated

3шт.

11

L32221

LENS

LENS - amber

1шт.

12

L32220

SPARE PART GASKET - lens

1шт.

13

131-204

NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC, plated

1шт.

14

195-102

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

1шт.

15

L32222

SPARE PART BRACKET - retainer, sealed beam lamp

1шт.

16

D66204

LAMP

BULB - sealed beam, No. 4416

2шт.

17

129-175

NUT,3/8"-16, G5, LH

NUT - hex, 3/8" - 16 NC, plated, left-hand thread

1шт.

18

193-94

SPARE PART WASHER - internal tooth lock, 3/8", left-hand twist

1шт.

19

L32224

SPARE PART PLATE - mounting, lamp

1шт.

20

L32225

NUT

SPARE PART NUT - special brass

1шт.

21

131-29

LOCK NUT,#8-32, GB

NUT - hex, self-locking, No. 8 - 32 NC, plated

4шт.

22

L32226

BASE

SPARE PART BASE - motor and lens

1шт.

23

L32228

SPACER

SPARE PART SPACER -, Serial Range: motor-base

4шт.

24

129-13

NUT,#4-40

NUT, #4-40

2шт.

25

192-13

WASHER,#4

Washer, Lock, #4

1шт.

26

D65187

MOTOR

SPARE PART MOTOR - electric, 12 volt

1шт.

27

L32227

GASKET

GASKET - base

1шт.

28

L35144

SPARE PART WIRE - ground

1шт.
