Артикул
Название
Примечание
Количество
1
F93158
LAMP

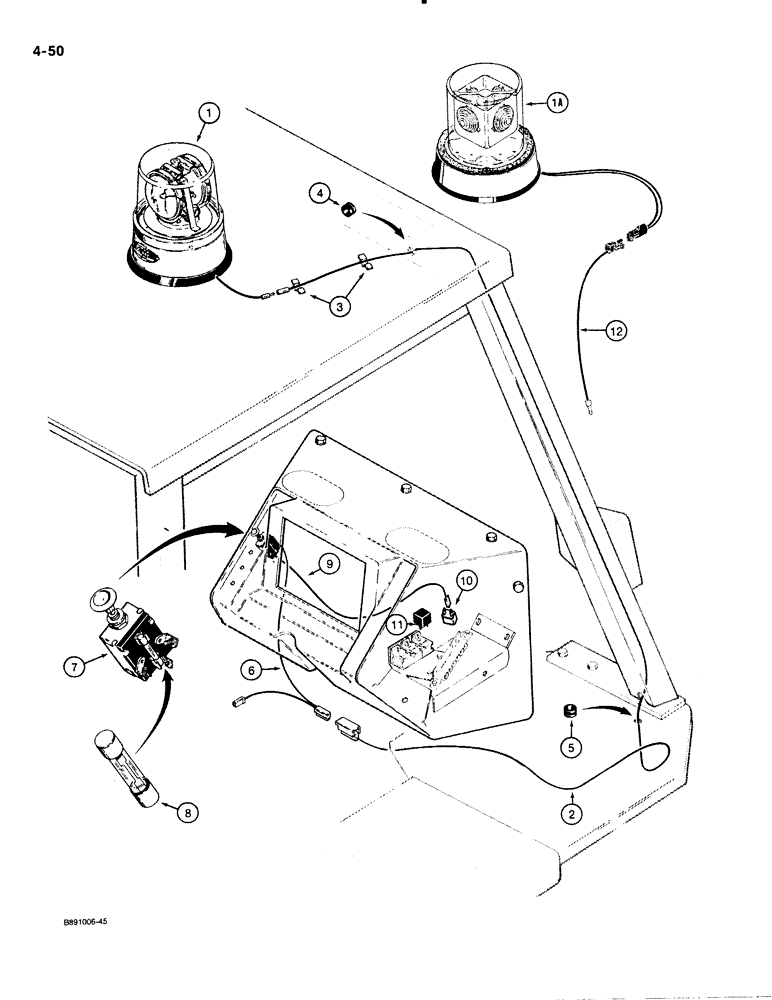

BEACON ASSEMBLY - rotating, 12 volt, amber lens, DoRay No. 4002, no longer available, order D137275 beacon and D140447 jumper wire for service, parts list Figure 4-54
1шт.
1a
D137275
LIGHT, WARNING
BEACON ASSEMBLY - rotating, 12 volt, amber lens, Signal Stat No. 378AY109-2, if used, parts list Figure 4-54
1шт.
2
D72914
ELECTRICAL WIRE
WIRE HARNESS - beacon, canopy models only
1шт.
On cab models the beacon wire connects directly into the cab wiring harness in the roof of the cab. See cab electrical circuit on Figure 4-36.
1шт.
3
F93268
CLIP
CLIP - wire, canopy models only
2шт.
4
L10082
GROMMET
GROMMET - rubber, canopy models only
1шт.
5
D37936
GROMMET
GROMMET - rubber, canopy models only
1шт.
6
D75955
ELECTRICAL WIRE
WIRE WIRE - switch to beacon harness or cab electrical harness
1шт.
7
L16099
SWITCH
SWITCH ASSEMBLY - beacon, Includes: Ref. 8
1шт.
9
D75956
ELECTRICAL WIRE
WIRE WIRE - switch to circuit breaker
1шт.
10
D78002
CIRCUIT-BREAKER
CIRCUIT BREAKER - 15 amperes
1шт.
11
D128310
RELAY
RELAY - 30 amperes
1шт.
12
D140447
ELECTRICAL WIRE
WIRE WIRE - jumper, used with D137275 beacon
1шт.
Выбрано товаров: 14
