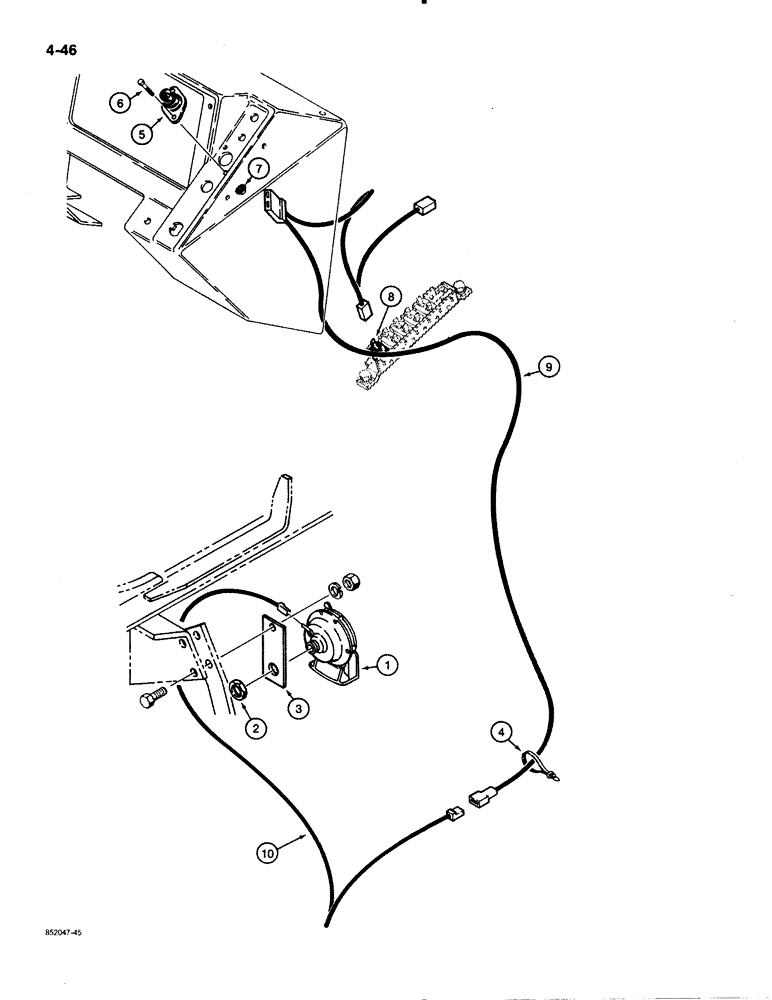

Запчасти Case 480E (4-46) - HORN (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

HORN - 12 volt

1шт.

2

L30866

LOCK NUT

NUT - hex, horn mounting, 7/8" - 20 NC

1шт.

3

D122734

SUPPORT

BRACKET - horn mounting, fastens to transmission support strap, for attaching hardware see Figure 6-47

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

5

D67872

SWITCH

SWITCH - horn

1шт.

6

163-15

SCREW,Hex, #10 - 24 x 5/8"

MACHINE SCREW - hex head, No. 10 - 24 NC x 5/8", plated

2шт.

7

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT ASSEMLY - includes lock washer, No. 10 NC

2шт.

8

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.

9

D75818

ELECTRICAL WIRE

WIRE WIRE - circuit breaker to horn switch and horn

1шт.

10

D91176

ELECTRICAL WIRE

WIRE WIRE - horn to switch wire

1шт.
