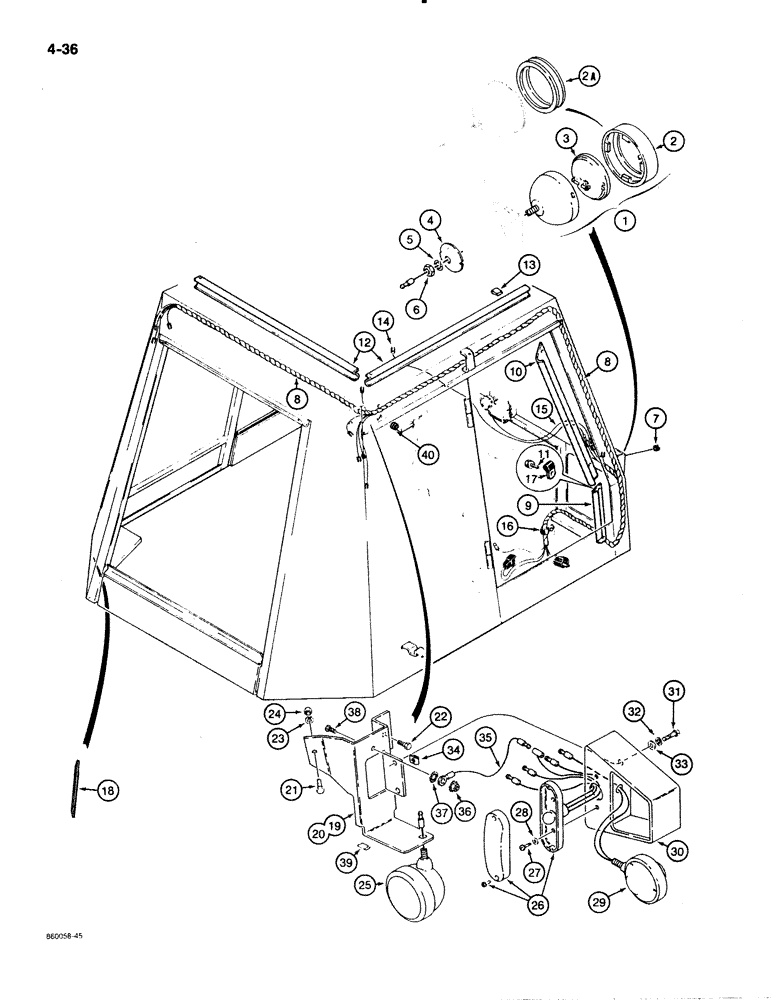

Запчасти Case 480E (4-36) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (04) - ELECTRICAL SYSTEMS

1

D88547

LAMP BASE

LAMP ASSEMBLY - front, interchangeable with A59701 lamp, Includes: Ref. 2 - 3

2шт.

2

A25213

RETAINER

RETAINER - lamp, locks to shell with three rubber tabs, if used

1шт.

2a

N6160

LAMP

RETAINER - lamp, locks over shell flange, if used

1шт.

3

A11280

LAMP

BULB - sealed beam, No. 4411

1шт.

4

A59702

RETAINER

WASHER - retainer

2шт.

5

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

2шт.

7

353-700

BUSHING

GROMMET - rubber

2шт.

8

F44608

HARNESS

HARNESS - cab

1шт.

9

F44338

CHANNEL

CHANNEL - lower front, harness

1шт.

10

F44337

CHANNEL

CHANNEL - upper front, harness

1шт.

11

187-1046

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - self-tapping, 3/8" - 16 NC x 5/8", plated

4шт.

12

F44339

CHANNEL

CHANNEL - upper, wire

2шт.

13

F44407

CLIP

CLIP - wire

10шт.

14

R37316

ELECTRICAL WIRE

WIRE WIRE - to left-hand front lamp

1шт.

15

R37315

ELECTRICAL WIRE

WIRE WIRE - to front windshield wiper

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLAMP - harness, used instrument panel mounting hardware

1шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLAMP - harness, used channel mounting hardware

1шт.

18

R37440

STRIP

COVER - harness wire, to rear windshield wiper, insert under glass molding

1шт.

19

D134927

MOUNTING PARTS

SUPPORT - bracket mounting, right-hand

1шт.

20

D134928

MOUNTING PARTS

SUPPORT - bracket mounting, left-hand

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

25

D88684

LAMP

LAMP ASSEMBLY - rear flood, parts list Figure 4-44

2шт.

26

D121152

LAMP,12V

LAMP ASSEMBLY - stop and tail, parts list Figure 4-40

2шт.

27

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

SCREW - pan head, self-tapping, No. 8 x 5/8", plated

4шт.

28

195-510

WASHER,#8

WASHER - plain, 3/16 x 7/16 inch

4шт.

29

D122121

LAMP,12V

LAMP ASSEMBLY - flasher, parts list Figure 4-42

2шт.

30

D120124

BRACKET

BRACKET - side lamps, also order 8-44950 instruction sheet

2шт.

31

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

33

195-103

WASHER,5/16"

WASHER - flat, 3/8 x 7/8 x 5/64 inch

4шт.

34

131-636

SPRING NUT,J, Ret, 5/16"-18

NUT - J-type, 5/16 inch NC

4шт.

35

D134918

ELECTRICAL WIRE

WIRE WIRE - ground, flasher and stop and tail lamps common connection to cab mounting bracket

2шт.

36

193-1000

NUT,Keps, w/LW,#10-32

NUT ASSEMBLY - includes lock washer, No. 10-32

2шт.

37

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

38

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 3/8"

2шт.

39

214-1105

CLIP

CLIP - wire

10шт.

40

A23870

GROMMET

GROMMET - wire

2шт.
